S5.5RX True Diversity Receiver Only 24Ch CH38-41

« return to previous page

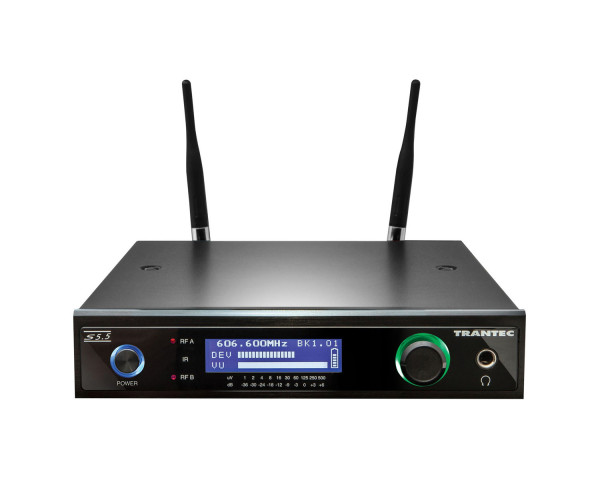

Trantec S5.5RX True Diversity Receiver Only 24Ch CH38-41 - Main Image
Trantec S5.5RX True Diversity Receiver Only 24Ch CH38-41 - Image 1
Trantec S5.5RX True Diversity Receiver Only 24Ch CH38-41 - Image 2
Trantec S5.5RX True Diversity Receiver Only 24Ch CH38-41 - Image 3
Price:
RRP: £474.00 inc VAT
Code:
TRAS55RX38
Manufacturer Code:
S5.5-RXA-EB WG1QO
Brand:
Trantec

Quantity required:

Main Features

  • 24 simultaneous channels per bank
  • Software monitoring/programming
  • Automatic frequency scanning
  • Triple-squelch
  • Full-metal housing
  • LCD screen
Share:

S5.5RX True Diversity Receiver Only 24Ch CH38-41

The S5.5-RX is a true diversity tuner. It features user-friendly operation, and employs an easy-to-read LCD display. Also, it is possible to operate the system settings through infrared communications, and to monitor the system status using the supplied PC software.

Product Features

  • 24 simultaneous channels per bank
  • Software monitoring/programming
  • Automatic frequency scanning
  • Triple-squelch
  • Full-metal housing
  • LCD screen
  • Infrared sync
  • USB port
  • EQ
  • Phase reversal
  • Mic/line switch
  • Headphone output
  • BNC antenna inputs
  • Adjustable triple-squelch

Product Specifications

  • Receiving frequency:  854 - 865 MHz
  • Selectable frequencies:  440
  • Diversity principle:  True diversity (dual receiver)
  • Antenna inputs:  2 x BNC (50 Ω)
  • Frequency response:  60 Hz - 20 kHz
  • Audio output:  XLR balanced (mic/line selectable), ¼“ jack unbalanced
  • Finish:  Metal
  • Dimensions:  210 x 46 x 210 mm (W x H x D)
  • Weight:  1.3 kg
