AD3700 EM2000 Series Log-Periodic Dir Wideband Antenna

« return to previous page

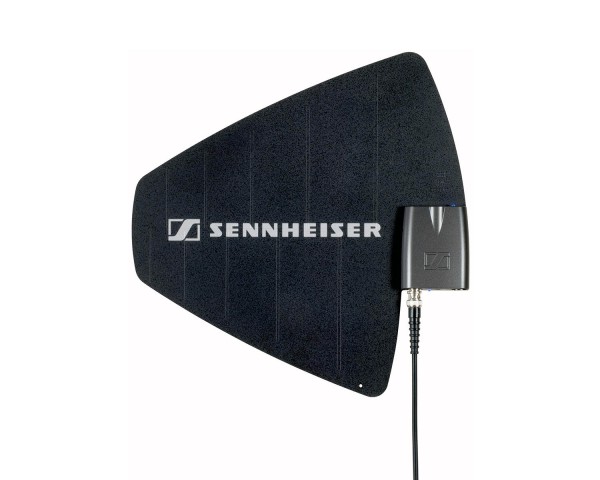

Sennheiser AD3700 EM2000 Series Log-Periodic Dir Wideband Antenna - Main Image
Price:
RRP: £1,054.80 inc VAT
Code:
SENAD3700
Manufacturer Code:
502197
Brand:
Sennheiser

Quantity required:

Main Features

  • Frequency range:  470 – 866 MHz
  • Omnidirectional antenna
  • Specifically compatible with the EM3731/3732 series
  • Mounting connection:  3/8" or 5/8" thread
  • 50 Ω Impedance
  • BCN Connector
Share:

AD3700 EM2000 Series Log-Periodic Dir Wideband Antenna

Directional antenna with integrated AB3700 for EM3731/3732 and EM2000/2050 receivers only.

Product Features

  • Frequency range:  470 – 866 MHz
  • Omnidirectional antenna
  • Specifically compatible with the EM3731/3732 series
  • Also specifically compatible with EM2000/2050 receivers
  • 50 Ω Impedance
  • BCN Connector
  • Mounting connection:  3/8" or 5/8" thread

Product Specifications

General

  • Frequency range:  470 – 866 MHz
  • Apex angle (-3 dB):  approx. 100°
  • Front-to-back ratio:  ≥ 14 dB
  • Gain:  approx. 3 dB
  • Amplification (booster) typ.:  bypass (-3 dB), 5 dB, 10 dB, 15 dB adjustable, without DC feed: -6 dB
  • Impedance:  50 Ω
  • OIP3:  ≥ 32 dBm
  • RF connection:  BCN socket
  • Power supply:  9 – 15 V ⎓ / 160 – 100 mA, DC feed via antenna cable (RF OUT socket)
  • Mounting connection:  3/8" or 5/8" thread

Physical

  • Dimensions:  329 x 322 x 23 mm
  • Weight incl. booster:  625 g

What’s in the Box?

  • 1 x AD3700
  • User Manual

Optional Accessories

  • GZP10 Mounting Plate
  • GZG1029 Swivel Joint
