ATUC-IRCU Hybrid Control Unit 2 Mic/Line In + 2 Aux In

« return to previous page

Audio Technica ATUC-IRCU Hybrid Control Unit 2 Mic/Line In + 2 Aux In - Main Image

Audio Technica ATUC-IRCU Hybrid Control Unit 2 Mic/Line In + 2 Aux In - Image 1

Audio Technica ATUC-IRCU Hybrid Control Unit 2 Mic/Line In + 2 Aux In - Image 2

Audio Technica ATUC-IRCU Hybrid Control Unit 2 Mic/Line In + 2 Aux In - Image 3

Price:: RRP: £3,349.00 inc VAT
Code:: AUDATUCIRCU
Manufacturer Code:: ATUC-IRCU
Brand:: Audio Technica

Main Features

Supports a maximum of 200 ATUC-IRDU discussion units and 100 ATUC-50DU/IU/INT units
Systems can be configured in either daisy chain or ring topology
Keeps your signals safe and secure, with no information leakage
IR transmission does not require any form of frequency coordination
Built-in WAV and MP3 recorder lets you record to a USB mass storage device
Control available through Web Remote interface and third-party IP Control Systems

The 19" rack-mountable ATUC-IRCU allows for the use of both infrared and wired discussion units, providing 24-bit/48 kHz digital signal processing (with 12-band feedback suppressor), automated gain control (AGC), mic gain and mic EQ for each connected discussion unit. It can be operated locally, through the Web Remote interface (no software required), or third-party IP control systems. Offers three selectable conference modes (Free Talk, Request to Talk, and Full Remote) and various override settings. Can record WAV and MP3 files onto a connected USB mass storage device. Includes two Mic/Line inputs, two AUX inputs and two interpretation return inputs. For wired or wireless systems.

Product Features

Each ATUC-IRCU infrared control unit supports a maximum of 200 ATUC-IRDU discussion units and 100 ATUC-50DU/IU/INT units
Systems can be configured in either daisy chain or ring topology
Unlike typical UHF wireless systems that broadcast through walls, the ATUC-IR infrared transmission keeps your signals safe and secure, with no information leakage
IR transmission does not require any form of frequency coordination
Built-in WAV and MP3 recorder lets you record to a USB mass storage device
Control available through Web Remote interface and third-party IP Control Systems

Product Specifications

Overall System

Operating Frequencies: Infrared
Frequency Response: +1.0, -2.0dB, 20Hz - 20kHz (+4dBu output at 1kHz)
Data Length / Sampling Frequency: 24bit/48kHz
Dynamic Range: 110dB, A-Weighted
Signal-to-Noise Ratio: 90dB, A-Weighted
Total Harmonic Distortion: Less than 0.03%, 1 kHz unity
Operating Temperature Range: 0 - 40°C
Operating Humidity: 25 - 85%
Simultaneous Use: 300 (200x ATUC-IRDU + 100x ATUC-50CU/ATUC-50IU)
Headroom: 20dB
Latency:
- MIC Input to Output: 1ms
- DU to CU: 1.2ms
Number Of Channels:
- Voice: 10 channels
- Monitor: 4 channels

Discussion Unit

Equivalent Input Noise: Mic/Line: Less than –126dBu, Rs = 150ohm

Control Unit

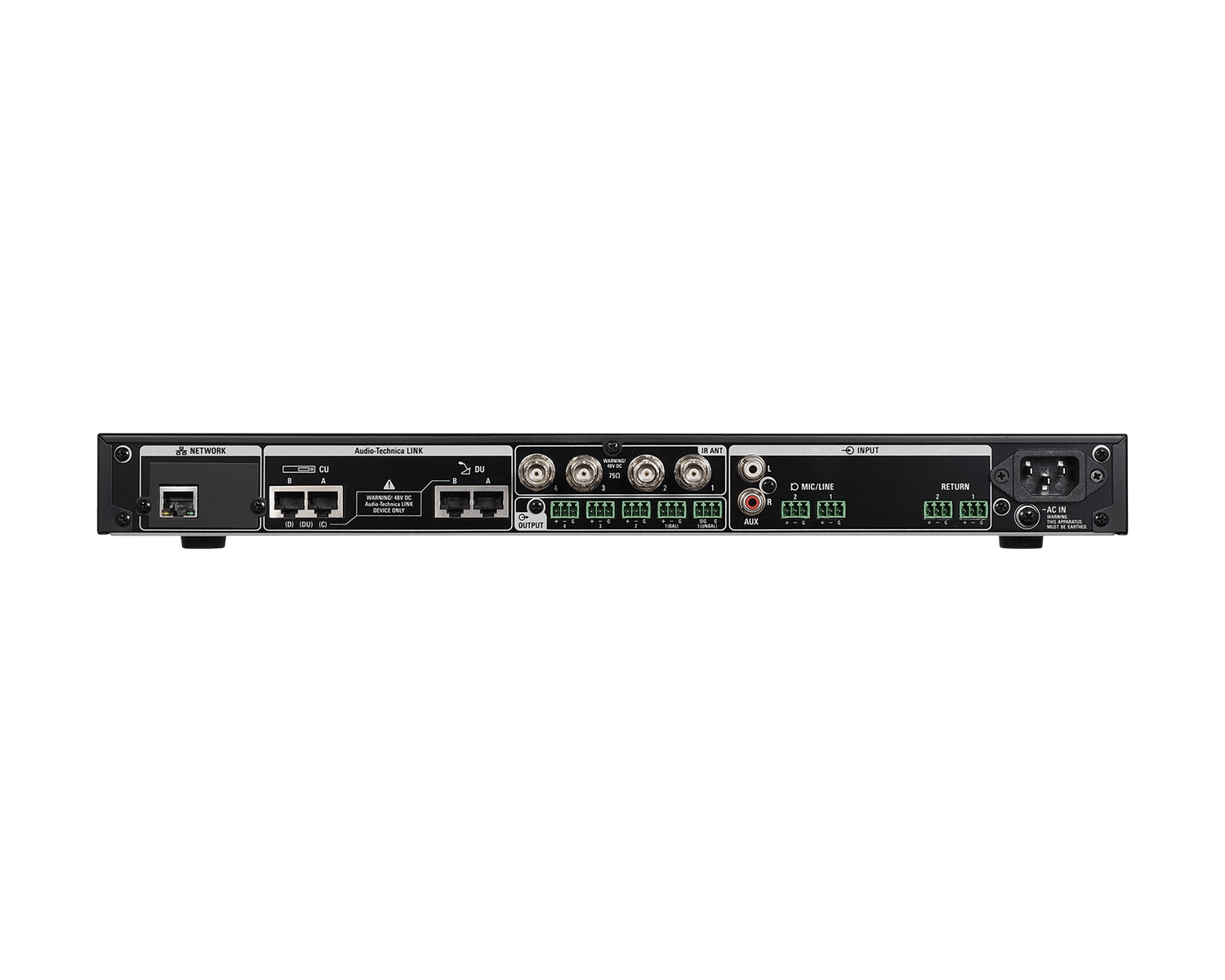

Connections:
- Inputs: MIC/LINE×2, AUX×1 (ST), INTERPRETATION RETURN×2
- Outputs: BAL.×4, UNBAL.×1
- Link/Chain: DU A/B terminals, CU A/B terminals (DU C/D terminals)
IR Antenna: IR antenna I/O terminals × 4 (Load Impedance 75ohm) N
Residual Noise: Less than –86dBu, A-Weighted
Crosstalk at 1 kHz: Less than –80dB
Power Supply: AC 100V - 240V 50/60Hz
Phantom Power: DC+48V
Power Consumption: 26W to 175W (maximum)
Dimensions: 434mm × 326mm × 44mm
Weight: 4.76kg

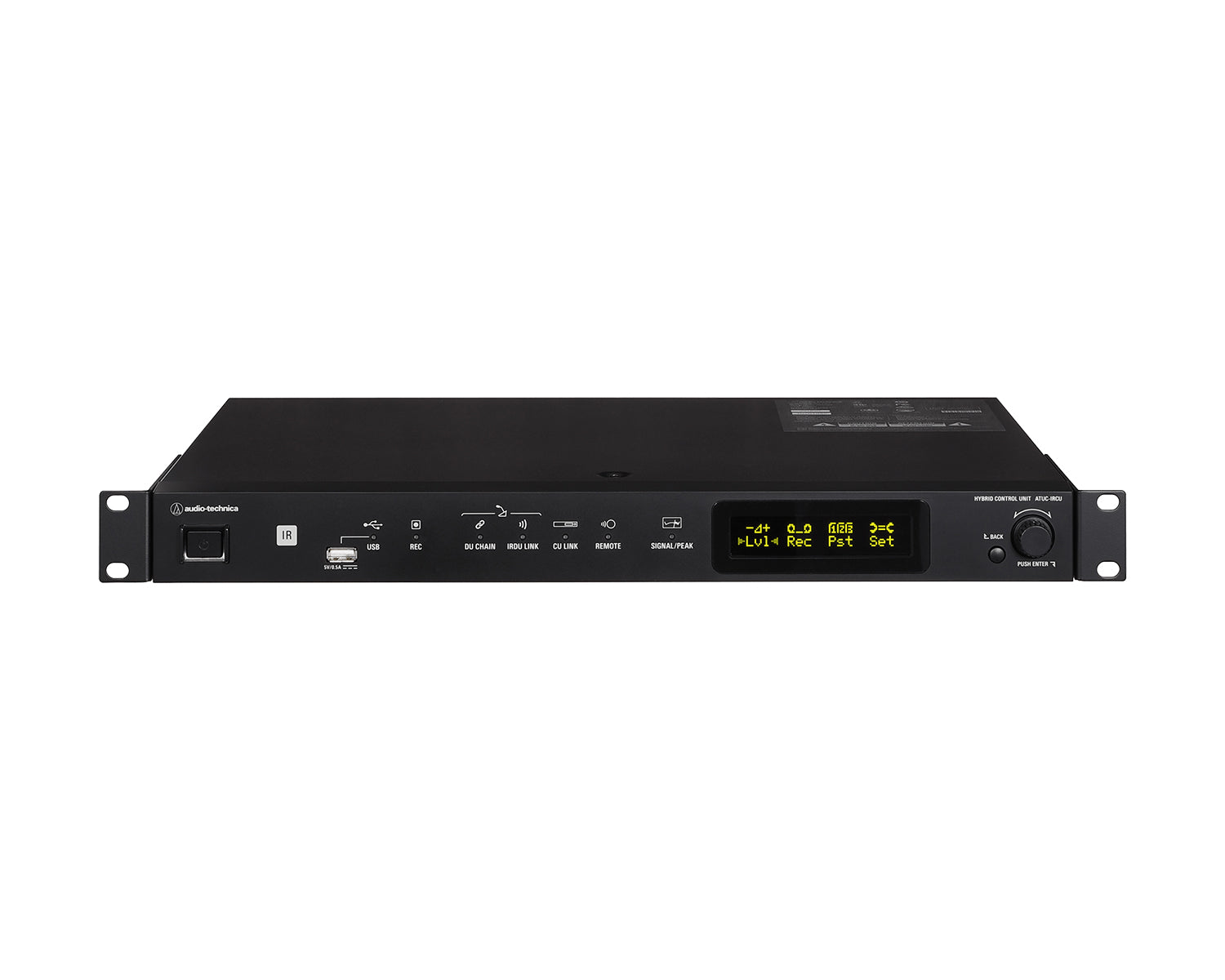

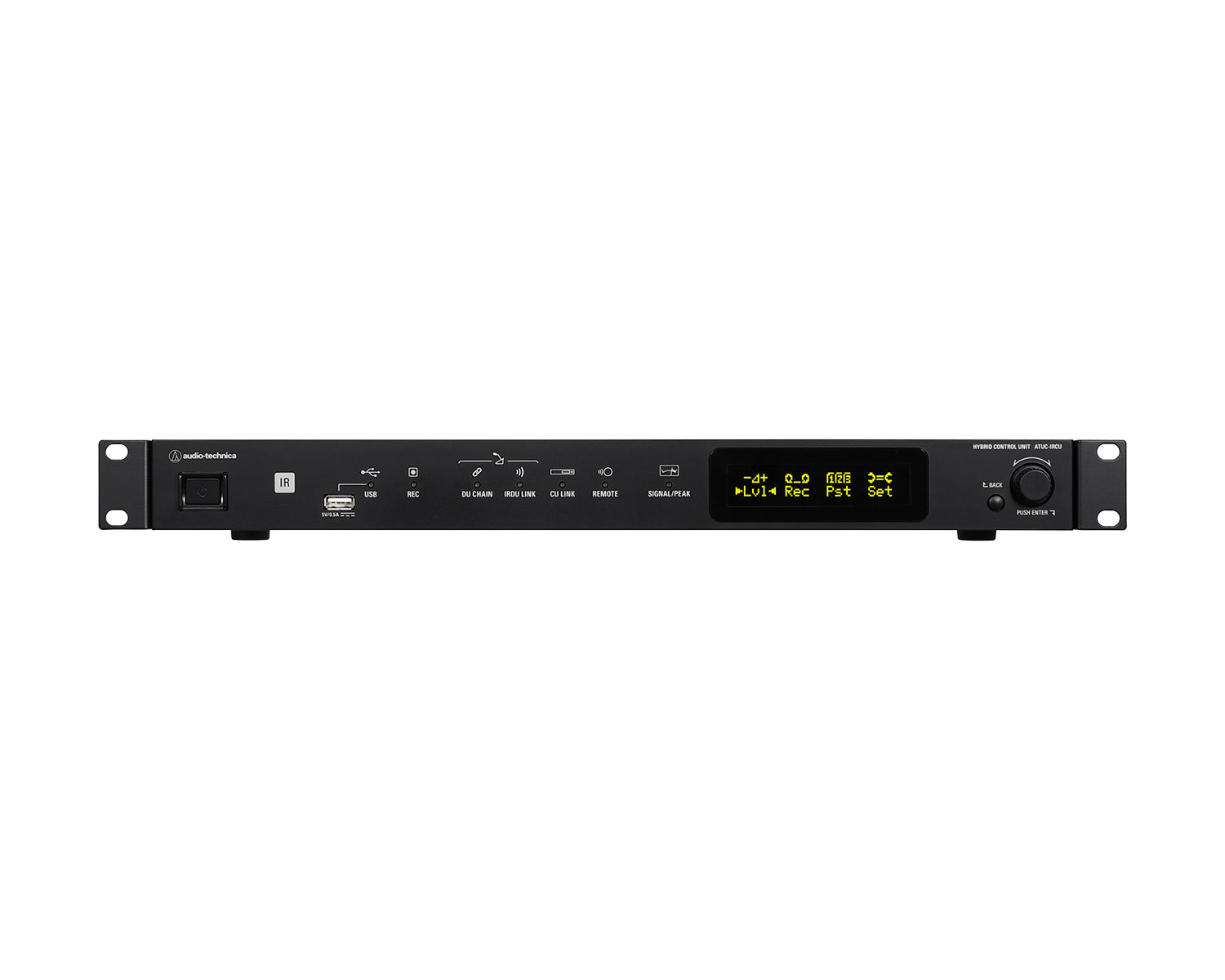

OLED Display:
- 20 × 2Character type, Color: Yellow
- Operating life: 100,000 hours
Accessories: Power cord, Euroblock connectors (9 pieces)

Infrared

Bandwidth: 1MHz - 10MHz
Modulation Method: FM

Recording

Compressed bit-rate: MP3 - 64kbps/128kbps/192kbps/256kbps/320kbps
Media:
- Via USB Storage Device (Supported file systems: FAT16/FAT32):
- WAV - 1/2/3/4 track (BWF standard)
- MP3 - 1/2 track (Original format)
