CBT 100LA-1 WH 16x2

« return to previous page

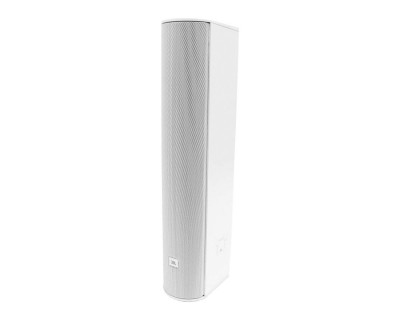

JBL CBT 100LA-1 WH 16x2 Line-Array Column Speaker 15-40° White - Image 1

JBL CBT 100LA-1 WH 16x2 Line-Array Column Speaker 15-40° White - Image 2

Price:: RRP: £1,914.00 inc VAT
Code:: JBLCBT100LA1W
Manufacturer Code:: JBL1152
Brand:: JBL

Main Features

Constant Beamwidth Technology Line Array Column Loudspeaker
With Sixteen 50 mm (2 in) Drivers
With improved mounting bracket for enhanced aiming flexibility
Built-in 70V/100V transformer, plus 8 ohm direct capability
Swivel (pan)/tilt wall bracket included
Available in black or white - this is the white version

Full Description

CBT 100LA-1 WH 16x2" Line-Array Column Speaker - White

The CBT 100LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.

Features

Product Features

Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for
long-throw applications.
Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
Dynamic SonicGuard™ overload protection
Swivel (pan)/tilt wall bracket included.
Built-in 70V/100V transformer, plus 8 ohm direct capability.

Technical Specs

Product Specifications

General

Components:
- Sixteen 50 mm (2 in) Full-Range
Frequency Range (-10 dB): 80 Hz – 20 kHz
Vertical Coverage
- Narrow Mode: 15° (2 kHz - 16 kHz) (±10°)
- Broad Mode: 40° (1 kHz - 16 kHz) (±10°)
- Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
Sensitivity (2.83V@ 1m):
- Narrow:
  - (speech mode) 96 dB (2 kHz - 14 kHz)
  - (music mode) 93 dB (300 Hz - 18 kHz)
- Broad:
  - (speech mode) 93 dB (2 kHz - 14 kHz)
  - (music mode) 90 dB (300 Hz - 18 kHz)
Nominal Impedance: 8 ohms (in Thru mode)
Power Capacity: (8 ohm setting):
- 325 W (1300W peak), 2 hrs
- 200 W (800W peak), 100 hrs
Max SPL:
- Narrow:
  - (speech mode) 121 dB cont ave (127 peak)
  - (music mode) 118 dB cont ave (124 peak)
- Broad:
  - (speech mode) 118 dB cont ave (124 peak)
  - (music mode) 115 dB cont ave (121 peak)
70V/100V Transformer Taps: 120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch
Enclosure: Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability: IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Colors: Black or White (-WH)
Insert Points: 18 M6 insert points on back panel.
Mounting: Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
