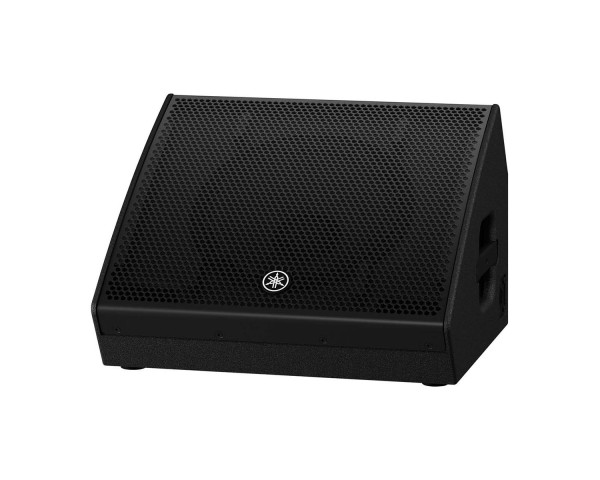

CHR12M 2-Way 12" Passive Stage Monitor 250W Black

« return to previous page
Yamaha CHR12M 2-Way 12 Passive Stage Monitor 250W Black - Main Image
Yamaha CHR12M 2-Way 12 Passive Stage Monitor 250W Black - Image 1
Yamaha CHR12M 2-Way 12 Passive Stage Monitor 250W Black - Image 2
Yamaha CHR12M 2-Way 12 Passive Stage Monitor 250W Black - Image 3
Yamaha CHR12M 2-Way 12 Passive Stage Monitor 250W Black - Image 4
Yamaha CHR12M 2-Way 12 Passive Stage Monitor 250W Black - Image 5
Yamaha CHR12M 2-Way 12 Passive Stage Monitor 250W Black - Image 6
Yamaha CHR12M 2-Way 12 Passive Stage Monitor 250W Black - Image 7
Yamaha CHR12M 2-Way 12 Passive Stage Monitor 250W Black - Image 8
Price:
RRP: £591.60 inc VAT
Code:
YAMCHR12M
Manufacturer Code:
CHR 12M WEDGE
Brand:
Yamaha

Quantity required:

Main Features

  • The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
  • Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
  • A pole socket for use on a stand
  • Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance
  • Finish: Black
Share:

CHR12M 2-Way 12" Passive Stage Monitor 250W Black

The CHR12M is a 2-way loudspeaker with a 12-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration, perfect for use as a floor monitor. Combining carefully selected and customized transducers with the same plywood construction found on Yamaha’s high-end CZR Series, the CHR12M offers best-in-class sound quality and durability.

Product Features

  • The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
  • Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
  • A pole socket for use on a stand
  • Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance

Product Specifications

  • Speaker type:  2-way Speaker, Bass-reflex
  • Frequency range (-10dB):  61 Hz - 20 kHz
  • Coverage:  H90゚ x V60゚
  • Crossover:  1.8 kHz
  • Nominal impedance: 8 Ω
  • SPL
    • Sensitivity (1W; 1m on axis):  93 dB SPL
    • Peak (Calculated):  123 dB SPL
  • Components
    • LF:  Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite
    • HF: Diaphragm: 1.75", Type: 1" throat coaxial compression driver, Magnet: Ferrite
  • Power rating
    • NOISE:  250W
    • PGM:  500W
    • PEAK:  1000W
  • I/O connectors:  SpeakON NL4MP x 2 (Parallel)
  • Cabinet material:  Plywood
  • Finish:  Durable Polyurea Painting, Black
  • Handle:  Side x1
  • Pole Socket:  Φ35 mm x1 (Bottom)
  • Floor monitor angle:  57°
  • Dimensions
    • W:  500 mm (19.7")
    • H:  343 mm (13.5") (with rubber feet)
    • D:  454 mm (17.9")
  • Net weight:  15.6 kg (34.4 lbs)

What's in the Box?

  • CHR12M Loudspeaker
  • Owner’s manual
