Ci100.2QR 3" 2-Way Ultra Thin Bezel Uni-Q Ceiling Speaker IP64

« return to previous page

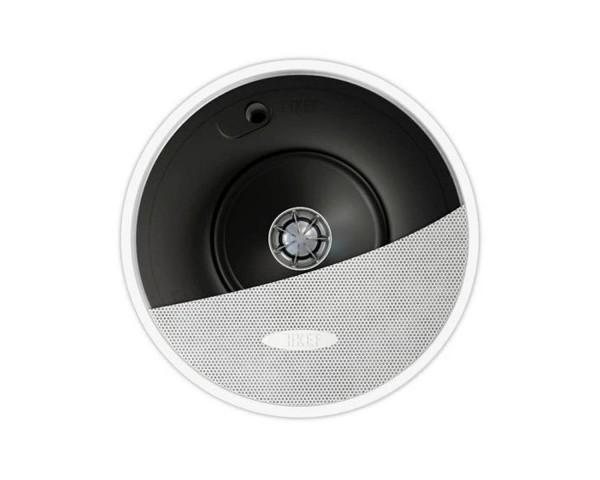

KEF Ci100.2QR 3 2-Way Ultra Thin Bezel Uni-Q Ceiling Speaker IP64 - Main Image
KEF Ci100.2QR 3 2-Way Ultra Thin Bezel Uni-Q Ceiling Speaker IP64 - Image 1
KEF Ci100.2QR 3 2-Way Ultra Thin Bezel Uni-Q Ceiling Speaker IP64 - Image 2
KEF Ci100.2QR 3 2-Way Ultra Thin Bezel Uni-Q Ceiling Speaker IP64 - Image 3
KEF Ci100.2QR 3 2-Way Ultra Thin Bezel Uni-Q Ceiling Speaker IP64 - Image 4
KEF Ci100.2QR 3 2-Way Ultra Thin Bezel Uni-Q Ceiling Speaker IP64 - Image 5
KEF Ci100.2QR 3 2-Way Ultra Thin Bezel Uni-Q Ceiling Speaker IP64 - Image 6
KEF Ci100.2QR 3 2-Way Ultra Thin Bezel Uni-Q Ceiling Speaker IP64 - Image 7
KEF Ci100.2QR 3 2-Way Ultra Thin Bezel Uni-Q Ceiling Speaker IP64 - Image 8
Price:
RRP: £150.00 inc VAT
Code:
KEFCI1002QR
Manufacturer Code:
637203014536
Brand:
KEF

Quantity required:

Main Features

  • UTB™ Ultra-Thin Bezel
  • 75mm (3in.) Uni-Q driver
  • 16mm (0.6in.) Aluminium dome tweeter with tangerine waveguide
  • Removable rear can
  • IP64 certified
  • Finish: White
Share:

Ci1002QR Uni-Q Flush Ceiling Speaker - White

Ci100.2QR delivers KEF's renowned audio quality as unobtrusively as possible. Part of their Soundlight Series of unobtrusive architectural speakers, the Ci100.2QR is meant to match the aesthetics of flush-mounted downlighting.

The popular Soundlight Series is yet another major innovation from KEF. When installed, Soundlight speakers are so tiny that they blend in with halogen light fixtures yet will amaze you with their astonishing performance, thanks to KEF's patented Uni-Q's exceptionally wide dispersion.

Product Features

  • UTB™ Ultra-Thin Bezel
  • 75mm (3in.) Uni-Q driver
  • 16mm (0.6in.) Aluminium dome tweeter with tangerine waveguide
  • Removable rear can
  • Magnetic grille
  • Paintable grille and bezel
  • Weather Resistant Construction
  • IP64 certified

Product Specifications

RECOMMENDED AMPLIFIER POWER

  • 10 - 50W

 NOMINAL IMPEDANCE

  • 4 Ohms

SENSITIVITY

  • 83dB (2.83V/lm)

FREQUENCY RESPONSE

  • 90Hz-27kHz (+/-6dB)
  • 130Hz-27kHz (+/-6dB) with back can

CROSSOVER RESPONSE

  • 3.5kHz

DRIVE UNITS

  • LH: 75mm (3in.) Uni-Q
  • HF: 16mm (0.6in.)

NET WEIGHT

  • 0.50kg (1.10lbs)
  • 0.65kg (1.44lbs) with back can

PRODUCT EXTERNAL DIMENSIONS

  • Diameter: 136mm (5.4in.)
  • Depth: 57mm (2.2in.)
  • Depth: 110mm (4.3in.) with back can

CUT-OUT DIMENSIONS

  • Diameter: 118mm (4.6in.)

MOUNTING THICKNESS

  • Ceiling Thickness (Maximum): 22mm (0.87in.)
  • Ceiling Thickness (Minimum): 6mm (0.24in.)

MOUNTING DEPTH FROM SURFACE

  • 52mm (2in.)
  • 103mm (4.1in.) with back can
