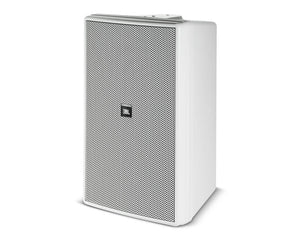

JBLC30WH - JBL Control 30 WH 10inch 3 Way HiFi Qual Speaker 250W 100V White Image 1

The Control 30 utilizes high power components, computer optimized horn and coaxial component design, patent-pending cabinet manufacturing techniques, and a complex network to achieve smooth high fidelity performance, extended bandwidth and well-controlled, defined coverage from a compact loudspeaker.

Product Features

Extended bandwidth, extremely smooth frequency response.
Fully outdoor-capable design, featuring WeatherMax™.
120° x 110° HF coverage.
150 W transformer for 70 V or 100 V lines, with 8 thru.
SonicGuard® overload protection.
250 mm (10 in) fiberglass / Kevlar® cone LF woofer, with neodymium magnet coaxial 125 mm (5 in) anodized aluminum cone MR, and 25 mm (1 in) titanium diaphragm compression driver.
Includes InvisiBall® mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket.
Sealed input panel cover and screw-down input terminals.

Product Specifications

General

Frequency Range: 38 Hz – 17 kHz (-10 dB)
Power Capacity: 500 W Continuous Program Power; 250 W Continuous Pink Noise
Transformer Taps:
- 70 V: 150 W, 75 W, 38 W, 19 W
- 100 V: 150 W, 75 W, 38 W
Thru Position: 4 ohms nominal
Frequency Response: 40 Hz – 16 kHz ( ± 3 dB)
Maximum SPL @ 1m: Short-Term: 123 dB; Long-Term: 117 dB
Nominal Sensitivity: 93 dB, 1W @ 1m (3.3 ft)
Nominal Coverage Angle: 120° H x 110° V
Directivity Factor (Q): 5.2 dB, averaged 500 Hz to 10 kHz
Directivity Index (DI): 7.1 dB, averaged 500 Hz to 10 kHz
Nominal Impedance: 4 ohms
Crossover Network: 3rd order Low Pass LF, 2nd order High Pass/3rd order Low Pass MF, 3rd order High Pass, HF, plus conjugate shaping circuitry.
Low Frequency: 250 mm (10 in) fiberglass/Kevlar® cone with pure butyl rubber surround, 50 mm (2 in) voice coil on fiberglass former, neodymium magnet
Mid Frequency: 125 mm (5 in) anodized aluminum cone with EPDM rubber (Terpolymer of Ethylene and Propylene) surround, 25 mm (1 in) voice coil on fiberglass former
High Frequency: 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround
Enclosure Material: High Impact PolyStyrene (HIPS) with 10% glass fill plus patent pending internal 5 mm foamed polyurethane secondary mold
Grille: Thermoset composite coated steel, WeatherMax multi-layer foam
Overload Protection: SonicGuard full range power limiting to protect network and transducers.
Environmental: IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray.
Terminations: Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open
Safety Agency Rating: Transformer is listed per UL1876
