Control 419CS/T 8

« return to previous page

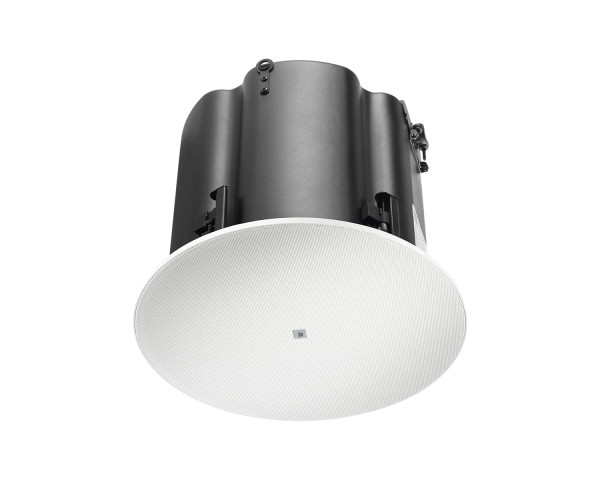

JBL Control 419CS/T 8 Ceiling Subwoofer 160W 100V - Image 1

JBL Control 419CS/T 8 Ceiling Subwoofer 160W 100V - Image 2

JBL Control 419CS/T 8 Ceiling Subwoofer 160W 100V - Image 3

JBL Control 419CS/T 8 Ceiling Subwoofer 160W 100V - Image 4

JBL Control 419CS/T 8 Ceiling Subwoofer 160W 100V - Image 5

Price:: RRP: £522.00 inc VAT
Code:: JBLCONT419CST
Manufacturer Code:: JBL2154
Brand:: JBL

Main Features

8” (200mm) woofer
Integrated enclosure with two large, tapered ports for warm, smooth bass response
Built-In Passive low-pass filter for simple integration with full-range speakers
Built-in 70V/100V subwoofer-band multi-tap transformer, plus 8-ohm direct input
Full-face, easily paintable magnetic grilles
Optional Black and square magnetic accessory grilles are available

Control 419CS/T 8" Ceiling Subwoofer 160W 100V

The JBL Control 419CS/T is a ceiling subwoofer, featuring an 8” woofer and integrated enclosure for installation in most ceiling plenum spaces. When you need to extend low-end performance, the Control C419CS/T integrates seamlessly with Control 400 Series full-range models to significantly extend low-frequency bass output. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. The JBL Control 419CS/T includes a transformer to support both 70V/100V and low impedance applications.

Product Features

8” (200mm) woofer
Integrated enclosure with two large, tapered ports for warm, smooth bass response
Built-In Passive low-pass filter for simple integration with full-range speakers
Built-in 70V/100V subwoofer-band multi-tap transformer, plus 8-ohm direct input
Full-face, easily paintable magnetic grilles
Black and square magnetic accessory grilles available
Top and side exit cable entry options
Robust and adaptable dogears for wide range of ceiling thicknesses
IP33 rated

Product Specifications

Frequency Range (-10 dB): 47 Hz – 320 Hz
Power Capacity: 320 W Continuous Program (2 hrs) 160 W (640 W Peak), Continuous IEC shaped Pink Noise (2 hrs) 80 Watts (320 W Peak) Continuous IEC shaped Pink Noise Power (100 hrs)
Sensitivity: 89 dB96 dB in ceiling near corner (π/2 loading) 93 dB in ceiling near wall (1 π loading) 90 dB, 1 W @ 1 m (3.3 ft) in center of ceiling (2 π loading, half-space)
Coverage Angle: 180° conical
Maximum SPL (1m): 124 dB peak (118 dB continuous, 2 hrs, π/2 loading) 118 dB peak (112 dB continuous, 2 hrs, 2 π loading)
Nominal Impedance: 8 ohms
Transformer Taps: 70 V: 60 W, 30 W, 15 W & 7.5 W 100 V: 60 W, 30 W, 15 W
LF Driver: 200 mm (8 in)
HF Driver: n/a
Dimensions: 289 mm (11.4 in) H x 346 mm (13.6 in) dia. 280 mm (11.0 in) from bottom of ceiling tile to top of backcan (with wire exit positioned on side of backcan).
Ceiling Cutout Size: 308 mm (12.2 in)
Safety Agency Rating: Suitable for use in air handling spaces per UL1480A, UL2043, NFPA90 & NFPA70, S7232/UL Listing, Speakers for Commercial and Professional Use. Listed per CSA C22.2, no. 205 Signal Equipment. In accordance with IEC60849/ EN60849.
Environmental: Exceeds Mil Spec 810H for humidity, salt spray, temperature & UV. IP33 rating per EN/IEC 60529 against solid object and water ingress. Compliant with RoHS2 per EN/IEC63000. Operating temperature 0°C to 45°C
Optional Accessories: JBL-MTC-419BG black (RAL9004) magnetic round grille JBL-MTC-419SG white (RAL9003) magnetic square grille JBL-MTC-419NC new construction bracket JBL-MTC-419MR mud-ring construction bracket
Colour: Stock grille is white (RAL9003), paintable.
Net Weight (each): 8.8 kg (19.4 lbs)
