CVG12RS-B/C Cardioid Condenser 12" Gooseneck Mic w/ Switch/LED

« return to previous page

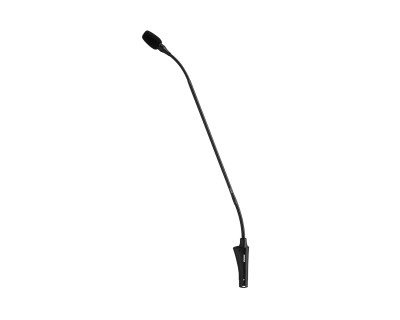

Shure CVG12RS-B/C Cardioid Condenser 12 Gooseneck Mic w/ Switch/LED - Main Image

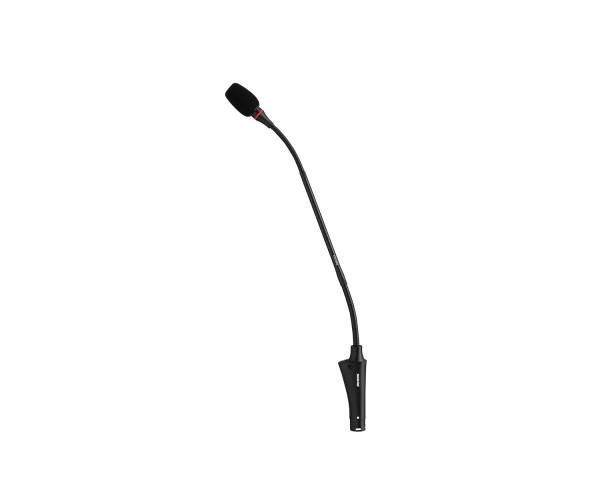

Shure CVG12RS-B/C Cardioid Condenser 12 Gooseneck Mic w/ Switch/LED - Image 1

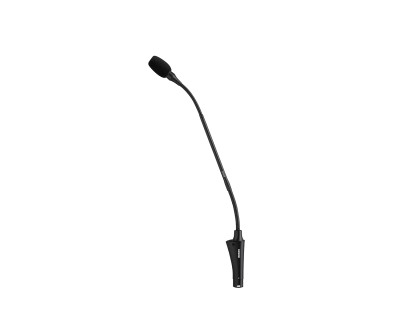

Shure CVG12RS-B/C Cardioid Condenser 12 Gooseneck Mic w/ Switch/LED - Image 2

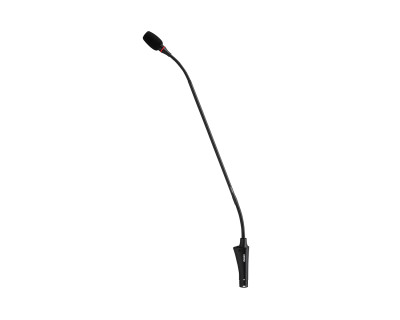

Shure CVG12RS-B/C Cardioid Condenser 12 Gooseneck Mic w/ Switch/LED - Image 3
Shure CVG12RS-B/C Cardioid Condenser 12 Gooseneck Mic w/ Switch/LED - Image 4
Price:
RRP: £180.00 inc VAT
Code:
SHUCVG12RSBC
Manufacturer Code:
CVG12RS-B/C
Brand:
Shure

Quantity required:

Main Features

  • Includes mute button and On/Off coloured indicator ring
  • 12” (30.4 cm) gooseneck length
  • Cardioid polar pattern with tailored response for speech
  • Dual-section gooseneck enables ease of positioning and placement options
  • Commshield® technology guards against unwanted RF interference from portable wireless devices (smartphones, etc.)
  • Included flange mount and snap-fit windscreen
Share:

CVG12RS-B/C Cardioid Condenser 12" Gooseneck Mic w/ Switch/LED

The Shure Centraverse CVG is a professional gooseneck electret condenser microphone for use in general installed sound reinforcement applications. With dual gooseneck sections for full articulation, the CVG12/18 provides scalable, best-in-class performance in a wide variety of locations, including podiums and desktops.

Product Features

  • Includes mute button and On/Off coloured indicator ring
  • 12” (30.4 cm) gooseneck length
  • Cardioid polar pattern with tailored response for speech
  • Dual-section gooseneck enables ease of positioning and placement options
  • Commshield® technology guards against unwanted RF interference from portable wireless devices (smartphones, etc.)
  • Included flange mount and snap-fit windscreen

Product Specifications

  • Cartridge Type:  Electret Condenser
  • Polar Pattern:  Cardioid
  • Frequency Response:  70 Hz to 16,000 Hz
  • Output Impedance:  180 Ω
  • Sensitivity open circuit voltage,at 1kHz,typical:  -33 dBV/Pa[1](22 mV)
  • Maximum SPL 1 kHz at 1% THD:  120 dBSPL
  • Signal-to-Noise Ratio Ref. 94 dB SPLat 1kHz:  67 dB
  • Dynamic Range:  93 dB
  • Self Noise equivalent SPL, A-weighted, typical:  27 dBSPL
  • Preamplifier Output Clipping Level:  at 1 kHz,at 1% THD:  –7 dBV
  • Common Mode Rejection 10 Hz to 100 kHz:  >45 dB
  • Polarity:  Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
  • Operating Temperature:  -18° to 57° C (0° to 135° F)
  • Storage Temperature:  -29° to 74° C (-20° to 165° F)
  • Relative Humidity:  0 to 95%

What's in the Box?

  • 1 x 95A16670 Windscreen (black)
  • 1 x RPM640 Mounting Flange

Product Downloads
