DC220T-M Ceiling Tile Loudspeaker for 600x600mm Grid PAIR White

« return to previous page

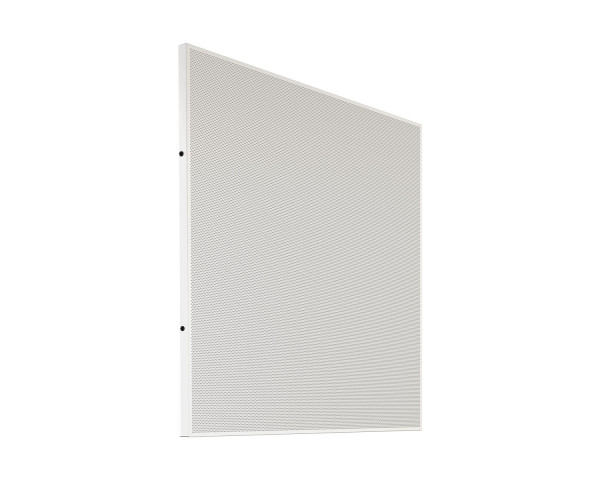

Biamp DC220T-M Ceiling Tile Loudspeaker for 600x600mm Grid PAIR White - Main Image

Biamp DC220T-M Ceiling Tile Loudspeaker for 600x600mm Grid PAIR White - Image 1

Biamp DC220T-M Ceiling Tile Loudspeaker for 600x600mm Grid PAIR White - Image 2

Biamp DC220T-M Ceiling Tile Loudspeaker for 600x600mm Grid PAIR White - Image 3

Price:: RRP: £192.00 inc VAT
Code:: BIADC220TM
Manufacturer Code:: 910.0337.900
Brand:: Biamp

Main Features

High sensitivity, wide coverage
Designed for use with any Vocia paging system
Low impedance or 70 V / 100 V operation
Easy installation - drop in the grid and connect cabling - done!
Low-profile, less than 107 mm (4.2") total depth
Conduit knock-outs on the input cover meet plenum air space handling requirements

The metric-sized DC220T-M provides high quality paging and consistent coverage when easy installation, price, and performance are paramount. The 6.5-inch DC220T-M full-range driver delivers high sensitivity and wider coverage than competitive products. It installs extremely quickly and provides uniform coverage with excellent sonic properties.

The preassembled construction allows for swift placement in standard 600 mm x 600 mm ceiling grids, significantly reducing installation labor time. Additionally, the DC220T-M can be used in larger 600 mm x 1200 mm rectangular ceiling grids with the included cross-T rails. The included wire nuts facilitate easy 2-conductor connections.

UL1480A and UL2043 certified, the DC220T-M comes with additional accessories for new construction installation and safety cable attachment.

The DC220T-M offers the flexibility of low impedance or 70 V/100 V operation while featuring a wattage selector switch for convenient adjustment of tap levels.

Product Features

High sensitivity, wide coverage
Designed for use with any Vocia paging system
Low impedance or 70 V / 100 V operation
Easy installation - drop in the grid and connect cabling - done!
Low-profile, less than 107 mm (4.2") total depth
Conduit knock-outs on the input cover meet plenum air space handling requirements

Product Specifications

Operating Mode: Passive with selectable low-impedance or 70 V/100 V operation
Operating Environment: Indoor
Operating Range (-10 dB): 100 Hz to 18.5 kHz
Nominal Beamwidth (H x V): 130°, (conical)
Transducer Full Range: 1 x 6.5" (165 mm) paper diaphragm driver
Sensitivity: @ 1 m 93 dB (2.83 V) 93 dB (1 W, 8 Ω)
Nominal Continuous Power Handling: Passive 9 V (10 W @ 8 Ω)
Nominal Maximum SPL (Processed) @ 1 m:
- Continuous: 102 dB
- Peak: 108 dB
Rated Continuous Voltage: 9 V (19 dBV)
Rated Maximum SPL (Processed) @ 1 m:
- Continuous: 102 dB
- Peak: 114 dB
Transformer:
- 70 V: 10 W, 5 W, 2.5 W, 1.25 W, 0.625 W;
- 100 V: 10 W, 5 W, 2.5 W, 1.25 W
Required Accessories: 100 Hz, 12 dB / oct. Butterworth high pass filter; DSP presets for Tesira or ALCs
Recommended Amplifiers: 10 W - 20 W, 8 Ω (9 V - 13 V)
Input Connection: 2-conductor pigtail
Controls: Wattage / low impedance selector switch
Mounting Provisions: Cross-T for use with larger 600 mm x 1200 mm rectangular ceiling grids
Compliance: ETL listed to comply with UL1480, UL2043 and CSA62368-1 Suitable for use in air handling spaces per NFPA 70 and NFPA 90
Dimensions: W x H x D 596 mm x 596 mm x 107 mm (23.48" x 23.48" x 4.22")
Weight (loudspeaker only): 7.1 kg (15.6 lbs)
Finish:
Grille: Powder-coated perforated steel. White finish (RAL 9016).
Enclosure / Finish
Back Can and Face: Black, Matte finish Steel (RAL9017
