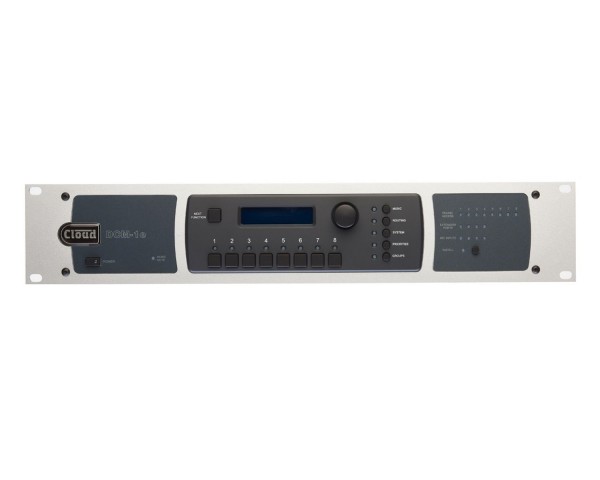

DCM1e Digital 8-Zone Mixer with Ethernet Port/Web Control 2U

Product Features

• 8 Stereo Line Inputs (1 Balanced)
• 8 Balanced Line Outputs (2 Stereo + 6 Mono)
• 4 Dedicated RJ-45 Ports for optional Line Inputs (LE-1)
• 4 Dedicated RJ-45 Ports for optional Mic Input Sockets (ME-1)
• Microphone Paging to all or any zone with fully programmable overide logic
• Separate analogue paging Microphone Input with analogue contact closure selection
• Configurable remote Controls (CDR-1)
• Configurable Line Priority by Zone
• RS-232 Interface for Crestron/Other Control
• Ethernet Connection Socket and Web Server for PC,Tablet & Mobile Device Control
• Accepts Bose, Amina and Active Audio EQ cards

Product Specifications

Line Inputs

• Frequency Response: 20 Hz - 20k Hz ±1 dB
• Distortion: <0.05 %, 20 Hz - 20k Hz
• Sensitivity: 195 mV (-12 dBu) to 3.1 V (+12 dBu)
• Input Gain Control: 24 dB range
• Input Impedance: 47k Ω
• Headroom: >+10 dB
• Noise: -90 dB A weighted (0 dB gain)
• Equalisation
  • HF: ±14 dB/10k Hz
  • MID: ±14 dB/1200 Hz
  • LF: ±14 dB/50 Hz

Paging Microphone Inputs

• Frequency Response: 100 Hz / -3 dB(filter) to 20 kHz ±0.5dB
• Distortion: <0.05% 20 Hz-20k Hz
• Gain Range: 10 dB - 50 dB
• Input Impedance: >2k Ω (balanced)
• Phantom Power: +12 V (PCB jumper for on/off)
• Headroom: >20 dB
• Noise: -120 dB EIN 22 Hz - 22k Hz (150 Ω)
• Equalisation
  • HF: ±10 dB/5k Hz
  • LF: ±10 dB/100 Hz

Outputs

• Balanced Zone Outputs: 775 mV (0 dBu)
• Minimum load impedance: 600 Ω
• Maximum output level: +10 dBu (2.6 V)

External Power Supply

• External Supply Input: 100 V-240 V AC; 47-63 Hz; 1.35 A
• Power supply: +12 V, 3 A; -12 V 1 A

Physical & Dimensions

• Dimensions (w x h x d): 482.6 mm x 88 mm (2U) x 170 mm
• Dimensions (packed): 570 mm x 270 mm x 220 mm
• Weight net: 3.12 kg
• Weight packed: 4 kg packed

Accessories

• BOSE Loudspeaker EQ Card
• CDR1-FS Remote Music Source Select (DCM-1) Silver
• EQ Cards for Amina AIWX & LFiT Loudspeakers
• CDR-1W Remote Music Source / Volume Select Panel in White (DCM-1)
• CDR-1B Remote Music Source / Volume Select Panel in Black (DCM-1)
• CDR-1FB Remote Music Source Select (DCM-1) Black
• CDR-1FW Remote Music Source Select (DCM-1) White
• LE-1MB Media Size Line Input Module - Black (DCM1 / DCM1e)
• ME-1MB Media Size Microphone Input Module - Black (DCM-1 / DCM-1e)
• LE-1B Line Input Module - Black (DCM-1 / DCM-1e)
• LE-1W Line Input Module - White (DCM-1 / DCM-1e)
• LE-1MW Media Size Line Input Module - White (DCM1 / DCM1e)
• ME-1B Microphone Input Module - Black (DCM-1 / DCM-1e)
• ME-1W Microphone Input Module - White (DCM-1 / DCM-1e)
• ME-1MW Media Size Microphone Input Module - White (DCM-1 / DCM-1e)
• BE-1B Balanced Input Module - Black (DCM-1 / DCM-1e)
• BE-1W Balanced Input Module - White (DCM-1 / DCM-1e)
• BE-1MB Media Size Balanced Input Module - Black (DCM-1 / DCM-1e)
• BE-1MW Media Size Balanced Input Module - White (DCM-1 / DCM-1e)
• PM1 Paging Microphones
• PM4 Paging Microphone
• PM8 Paging Microphone
• PM12 Paging Microphone
• PM16 Paging Microphone
• PM4-SA & PM8-SA 4 & 8 Zone Paging Spot Announcer
• PM4-SA & PM8-SA (Mic Removed) 4 & 8 Zone Paging Spot Announcer
