Forge a new sound with the DJM-V10; a new breed of mixer, born of fresh thinking. It’s built to allow the most creative DJs to craft original soundscapes.

This 6-channel unit – loaded with unique features – produces warm audio full of energy and presence. So, take full control of your mix and get ready to create something the crowd has never heard before – either performing solo or back-to-back with another DJ.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

• ELITE SOUND QUALITY: Feel the warmth of natural sound and hear every detail. Studio-quality 64-bit mixing and dithering processing, 32-bit high-quality A/D and D/A converters, a low-jitter clock circuit, and many other components all work to produce a full low-end, vibrant mids, and precise highs.
• 6 CHANNELS WITH A WIDE RANGE OF INPUTS: You’re free to create your perfect setup with 6 channels and a host of different input types.
• 4-BAND EQ AND COMPRESSOR: Take full control of your mix with the newly developed 4-band EQ. A built-in compressor enables further adjustment of the loudness of your tracks.
• EFFECTS FOR MORE CREATIVE EXPRESSION: The expanded send/return section enables you to add external FX, or even combine them with built-in FX. Create unique sounds; the possibilities are nearly limitless
• 3-BAND MASTER ISOLATOR: Effortlessly control the tone of your entire mix with the 3-band master isolator, featuring new boost/cut curves and adjustments to the crossover frequencies and other parameters. Grab the large dials and drive the crowd wild by drastically changing the sound.
• DUAL HEADPHONES OUTPUT AND BOOTH EQ: The DJM-V10 makes back-to-back monitoring simple and comfortable. You can tweak the sound in the DJ booth just the way you like.

Product Specifications

Main Features

• MIDI Control: Full assignable MIDI controls
• ProDJ Link: Yes
• Booth EQ: Yes
• P-LOCK Fader Caps: Yes
• Auto Standby: Yes
• DVS Control
  • rekordbox
  • Serato DJ Pro
  • TRAKTOR PRO 3

Specifications

• Width: 437.6 mm
• Height: 107.9 mm
• Depth: 467 mm
• Weight: 11.9 kg
• Frequency Range: 20 - 40000 Hz
• Sampling Rate: 96 kHz
• A/D Converter: 32 bit
• D/A Converter: 32 bit
• S/N Ratio Line: 105 dB
• S/N Ratio Phono: 88 dB
• S/N Ratio Mic: 79 dB
• Distortion: < 0.005 % (LINE)

Channels

• EQ: 4 band
• EQ Range: [Hi/Low] -∞ ~ +6 dB / [Hi Mid/Low Mid] -26 dB ~ +6 dB dB
• COMP: Yes

Performance Control

• Channels: 6
• Filter
  • HPF
  • LPF
• SEND
  • Short Delay
  • Long Delay
  • Dub Echo
  • Reverb
  • 2 Externals (1/4-inch TS jack)
• MULTI I/O
  • 1/4-inch jack
  • USB (Type A)
• Beat FX
  • Delay
  • Echo
  • Ping Pong
  • Spiral
  • Helix
  • Reverb
  • Shimmer
  • Flanger
  • Phaser
  • Filter
  • Trans
  • Roll
  • Pitch
  • Vinyl Brake
• FX Frequency: Yes
• X-PAD: Yes
• rekordbox Quantize: Yes
• Master Isolator: Yes

Crossfader

• Crossfader Type: Magvel Fader
• CURVE Assignable: Yes
• Fader Curve: 3

Mic

• Mic Connection
  • XLR / 1/4-inch Jack Combo
  • 1/4-inch TRS Jack
• Talkover: 3 Position Switch
• Talkover Attenuator: Yes

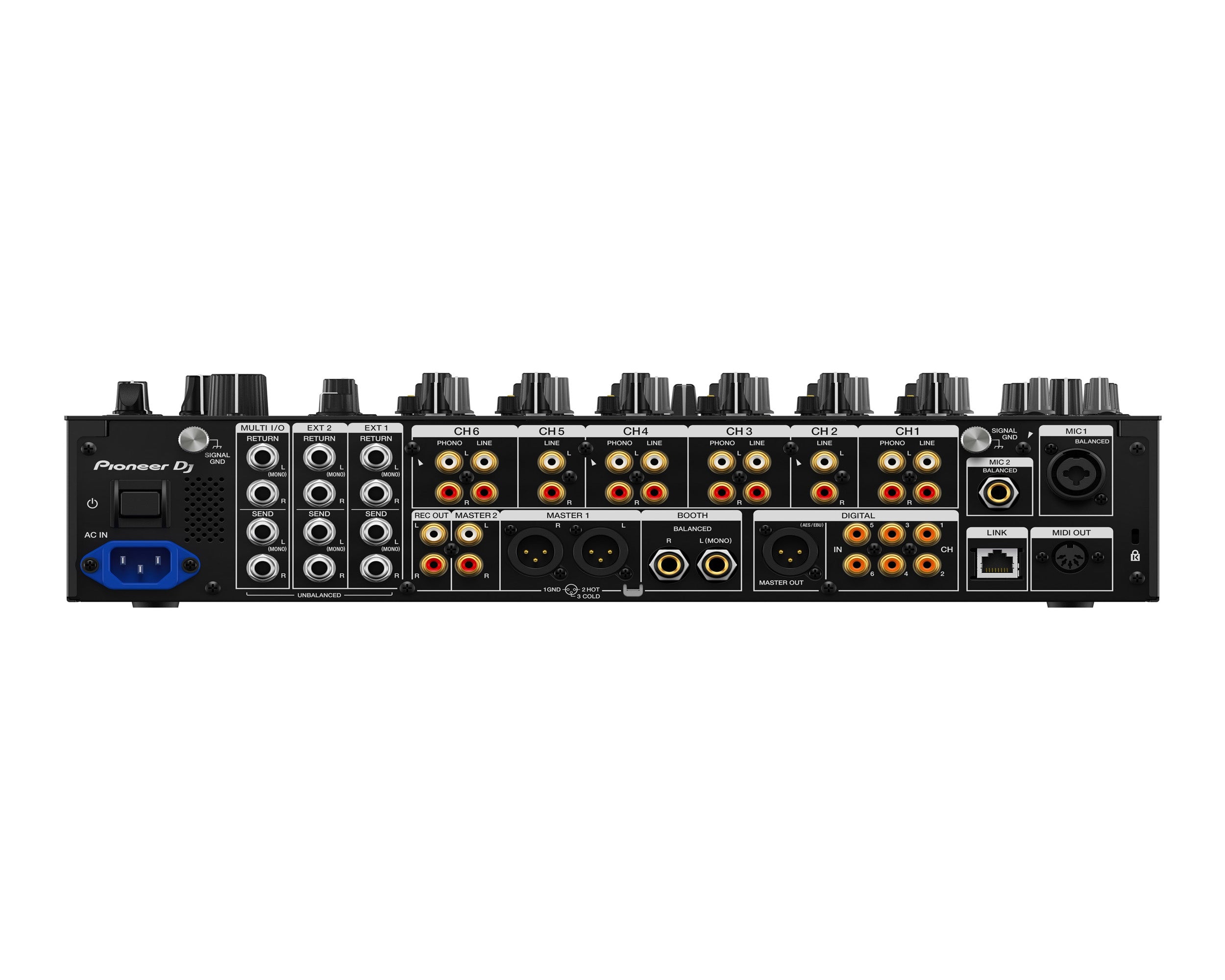

Terminals

• Inputs
  • 6 DIGITAL (Coaxial)
  • 6 LINE (RCA)
  • 4 PHONO (RCA)
• Send/Return
  • 3 SEND (1/4-inch TS jack)
  • 3 RETURN (1/4-inch TS jack)
• LAN: 1
• USB
  • 2 USB B ports
  • 1 USB A port
• Outputs
  • 2 MASTER (XLR, RCA)
  • 1 BOOTH (1/4 inch TRS Jack)
  • 4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
  • 1 REC OUT (RCA)
  • 1 DIGITAL (AES/EBU)
  • 1 MIDI (DIN)

What's in the Box?

• DJM-V10
• Power Cord
• Warranty (for some regions)
• Quick Start Guide
• Precautions for Use
