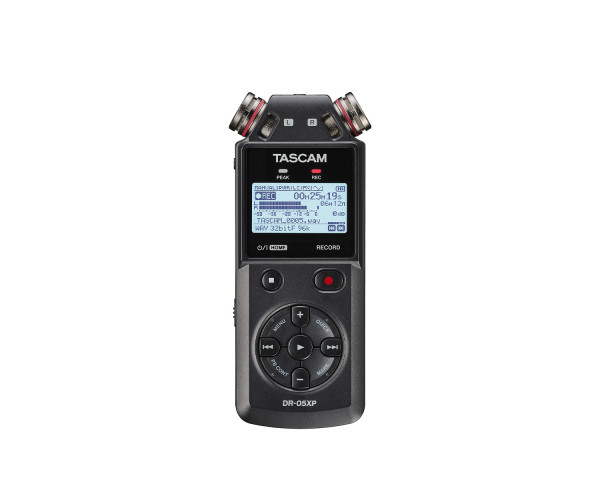

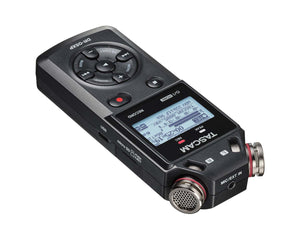

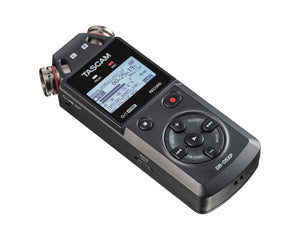

The DR-05XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation and more. With 32-bit float recording mode, you’ll never need to worry about setting audio levels, and with the integrated stereo condenser microphones you are always ready to go.

With its 32-bit float recording mode, the DR-05XP ensures your audio recordings will always be clear, distinct and free of distortion that could ruin your recording – and you’ll never need to worry about setting input levels.

The DR-05XP features omnidirectional condenser microphones that can withstand high sound pressure levels up to 125 dB SPL, reducing the risk of mic distortion even in loud environments.

Product Features

• Two-channel portable handheld audio recorder with microSDXC card storage
• 32-bit float resolution ensures low-noise, distortion-free recordings
• Built-in condenser microphones handle loud environments and sources (up to 125 dB SPL)
• 2-in/2-out USB-C audio interface for recording directly to your computer
• More than 17 hours operation with two AA alkaline batteries
• Supported audio formats:
• Linear PCM (WAV/BWF) at 32-bit float, 24 bit, 16 bit (sampling rates 96 kHz, 48 kHz, 44.1 kHz)
• Compressed (MP3): 32–320 kbit/s at 44.1/48 kHz (VBR files can be played but not recorded)
• Recording
  • Omnidirectional stereo microphones allow high-quality stereo recording with ambience
  • Switchable filter to minimize unwanted low-frequency noise (40 Hz, 80 Hz, 120 Hz)
  • Manual recording level setting for music and field recording
  • Three options of automatic level control during recording: Peak Reduction, Auto Level, Limiter
  • Auto-recording function to automatically start recording based on input level
  • Marks can be added automatically when using the automatic recording function
  • Overwrite function for punch-in recording with one level of Undo
  • Overdub function for non-destructive overdubbing
  • Dictation mode designed for human voice recording and transcription
  • Pre-recording buffer (2 seconds) allows a recording to start before the record key is pressed
  • Self-timer allows a recording to start 5 or 10 seconds after pressing the RECORD button
  • A new file can be created manually during recording or automatically when a certain file size is reached
  • Set marks to quickly locate certain audio positions (up to 99 per file)
  • Automatic tone generator convenient when editing with video on other equipment
  • Stereo mic/line input with plug-in power to connect an external source or microphone
  • File name format can be set to use a predefined word or the date
• Playback
  • Automatic level align prevents uneven playback levels
  • Variable speed audition to change the playback tempo without affecting the key (50–200 %)
  • Repeat/loop function (repeat one track, all tracks or a marked section, convenient for practicing music and studying languages
  • Playlist feature to play files in a certain order
  • Resume function retains the last stop position and starts playback from that position when power is turned back on
  • Jump back function to instantly review playback (1–10, 20, 30 seconds)
  • Equalizer for tone control during playback
  • MP3 ID3 tag display (up to version 2.4)
  • Built-in loudspeaker
  • Headphones/Line output
• Other features
  • Built-in reverb effect (6 presets, can be applied to input or output signal)
  • Chromatic tuner function to tune your instrument
  • QUICK menu button for easy access to various functions
  • File divide function to cut unwanted noise or to extract parts from long recordings
  • Folder management to organize your files
  • Hold function to avoid inadvertent operation
  • Menu language can be selected between English, German, French, Italian, Spanish, Portuguese, Korean, Japanese, Chinese, Russian
  • Clear, backlit LC display
  • USB 2.0 port for file transfer to/from computer (USB-C type)
  • Power supply by 2 AA size Alkaline or NiMH batteries, USB bus power or optional AC adapter (Tascam PS-P520U)
  • Stand adapter (¼ inch) on bottom side to attach the unit to a tripod or microphone stand

Product Specifications

General

• Recording media: microSD/microSDHC/microSDXC card (up to 512 GB)
• Recording/playback format
  • WAV:
    • Sampling frequency: 44.1/48/96 kHz
    • Quantization bit depth: 16-bit / 24-bit / 32-bit float
  • MP3:
    • Sampling frequency: 44.1/48 kHz
    • Bit rate: 32/64/96/128/192/256/320 kbit/s
• Number of channels:
  • Input channels: 2 (stereo)
  • Recording tracks: 2 (stereo)

Analogue audio inputs and outputs

• Microphone/External input (can provide plug-in power): 3.5-mm stereo mini jack
• Input impedance:
  • ≥18 kΩ (plug-in power off)
  • ≥2 kΩ (plug-in power on)
• Nominal input level: −20 dBV
• Maximum input level: −4 dBV
• Headphones/Line output: 3.5-mm stereo mini jack
  • Output impedance: 12 Ω
  • Nominal output level: −14 dBV (10 kΩ load)
  • Maximum output level: +2 dBV (10 kΩ load)
  • Maximum output power: 20 mW + 20 mW (32 Ω load)
  • Working impedance: 16−250 Ω
• Built-in loudspeaker: 0.3 W (mono)

Control inputs and outputs

• USB: Type-C connector
• Format:
  • USB 2.0 HIGH SPEED mass storage class
  • USB 1.1 FULL SPEED audio class
• USB Audio
  • Sampling frequency: 44.1/48 kHz
  • Quantization bit depth: 24 bit
  • Number of audio inputs: 2 channels
  • Number of audio outputs: 2 channels

Audio performance

• Frequency response
  • 20 Hz – 20 kHz, +0/−1 dB (MIC/EXT IN to LINE OUT, 44.1 kHz, JEITA)
  • 20 Hz – 22 kHz, +0/−1 dB (MIC/EXT IN to LINE OUT, 48 kHz, JEITA)
  • 20 Hz – 40 kHz, +0/−1.5 dB (MIC/EXT IN to LINE OUT, 96 kHz, JEITA)
• Total harmonic distortion ratio (THD+N): ≤0.01 % (MIC/EXT IN to LINE OUT, 44.1/48/96 kHz, JEITA)

Power supply and other specifications

• Power supply:
  • 2 AA batteries (alkaline or NiMH, sold separately)
  • USB bus power from a computer
  • Dedicated AC adapter (TASCAM PS-P520U, sold separately, DC 5 V, 2 A)
• Power consumption: 1.7 W / 5 V, 0.5 A (maximum)
• Dimensions (W × H × D): 61 mm × 142 mm × 27 mm
• Weight: 174/126 g (with/without batteries)
• Permissible operating temperature range: 0–40 °C
