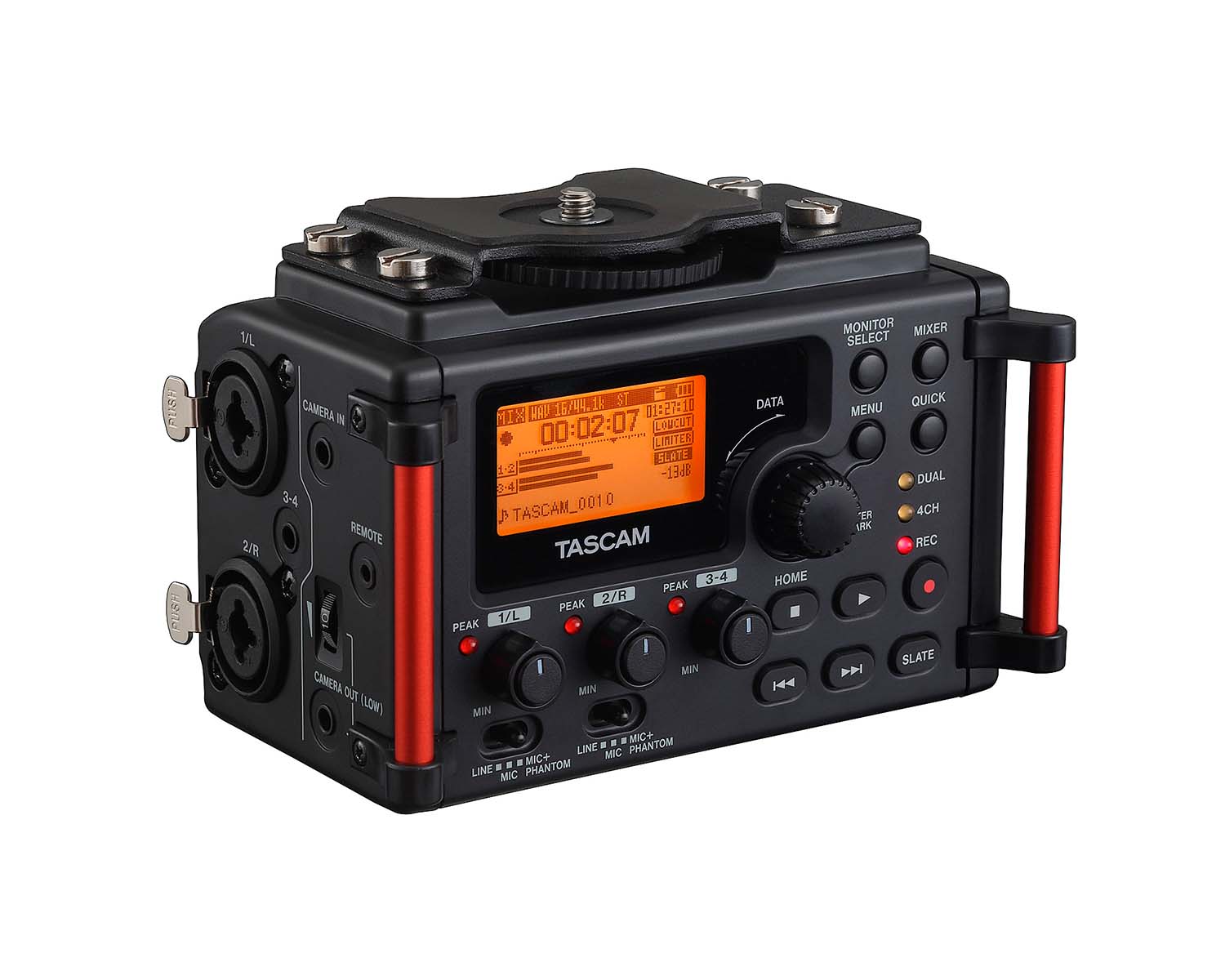

DR-60DMKII 4-Track Audio Recorder for DSLR Cameras

Product Features

• Record to SD/SDHC card (Up to 32GB)
• Simultaneously record up to 4 tracks
• Record Modes: MONO, STEREO, DUAL MONO, DUAL STEREO, 4-CHANNEL
• Recording format: 44.1/48/96kHz, 16 or 24-bit,  WAV/BWF
• TASCAM HDDA microphone preamps wth 120dB EIN and 64dB of gain
• Recording levels can be adjusted independently for the 1/L, 2/R and 3-4 inputs

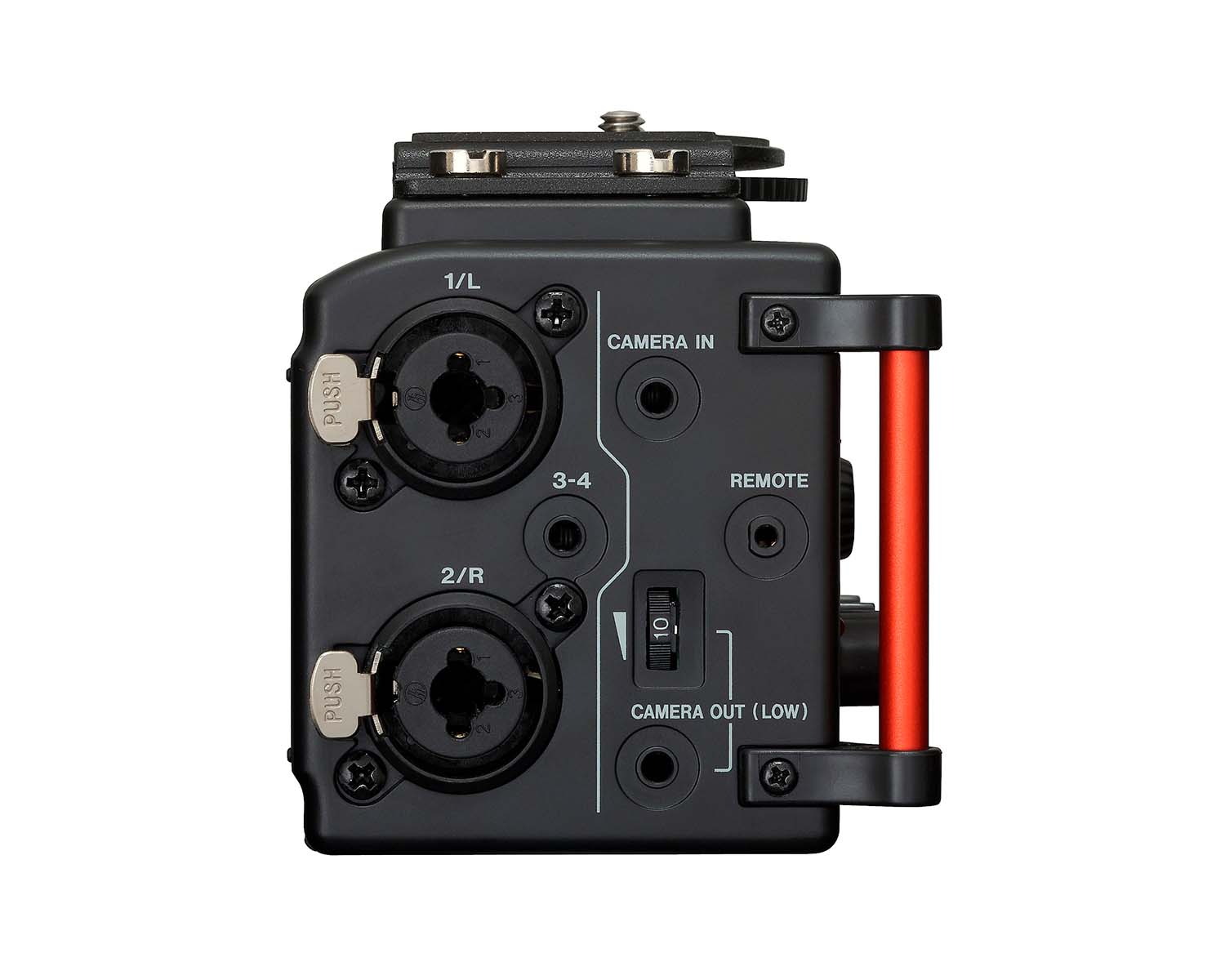

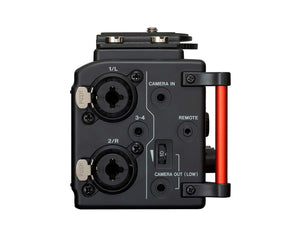

• Two combo XLR/TRS inputs support +4dBu mic/line level input
• Phantom power to channels 1/2 (24V or 48VDC on XLRF)
• Plug-in power and high-output mic input supported on inputs 3-4
• CAMERA OUT connector for output from the DR-60DmkII mixer (adjustable gain)
• CAMERA IN connector for sound monitoring from the camera

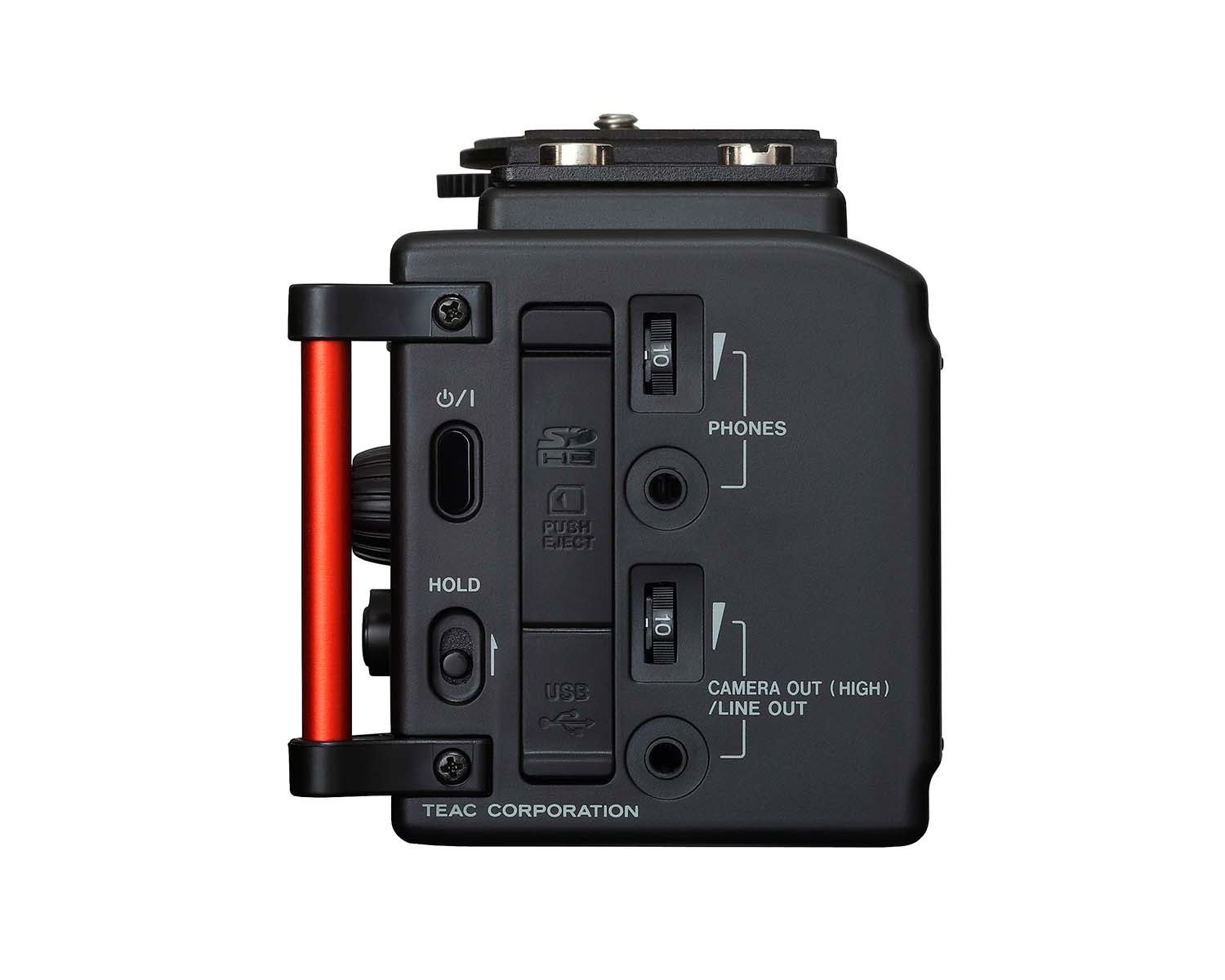

• Independent adjustable LINE OUT and HEADPHONE jacks for high-quality sound output
• 50mW/ch headphone amplifier

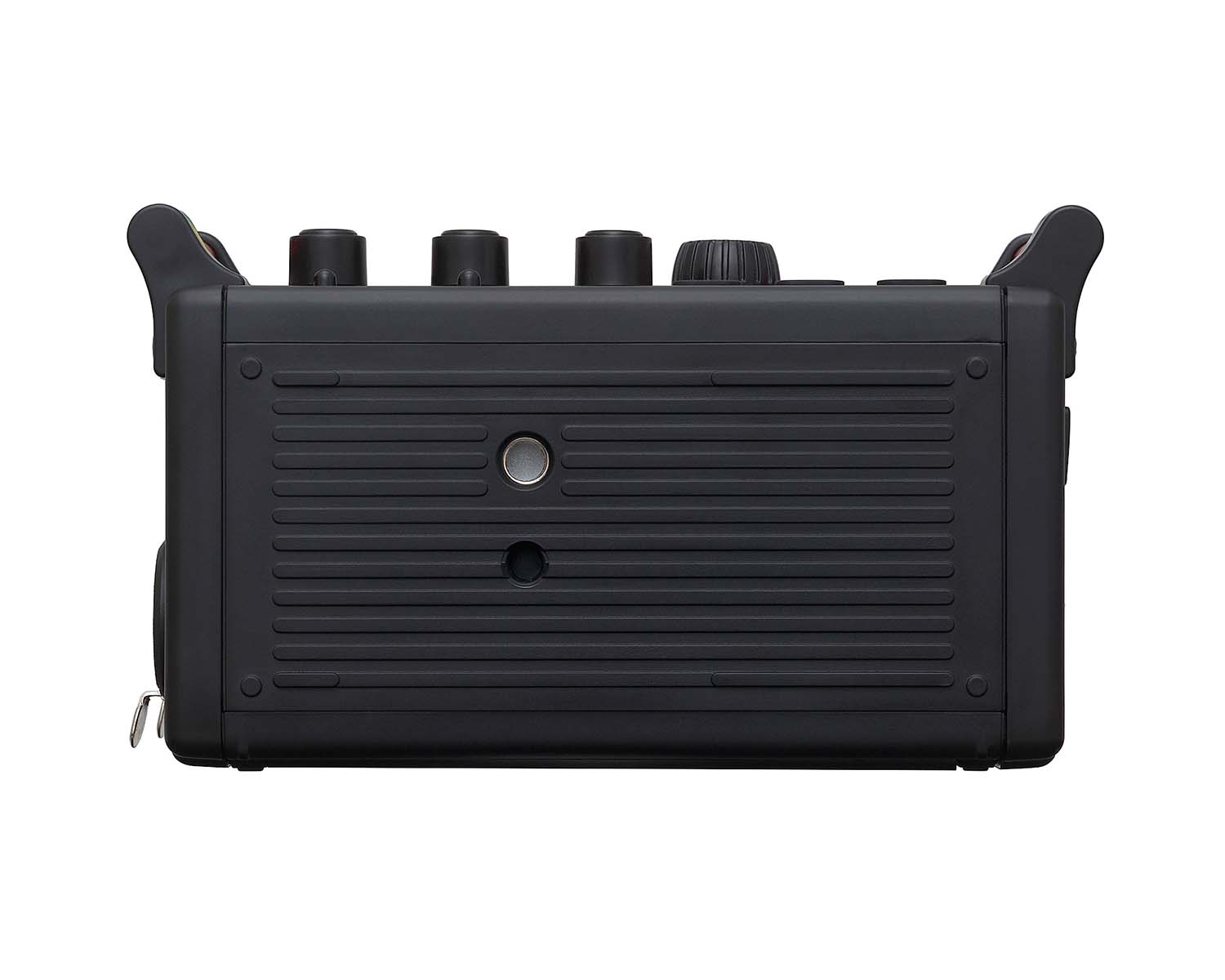

• Tripod mounting socket (bottom) and mounting screw attachment (top)
• Handles protect the screen and can be used to attach a shoulder strap
• Soft-Touch Rubber Keys for silent operation
• HOLD switch to prevent accidental operation
• QUICK button feature for easy access to various functions

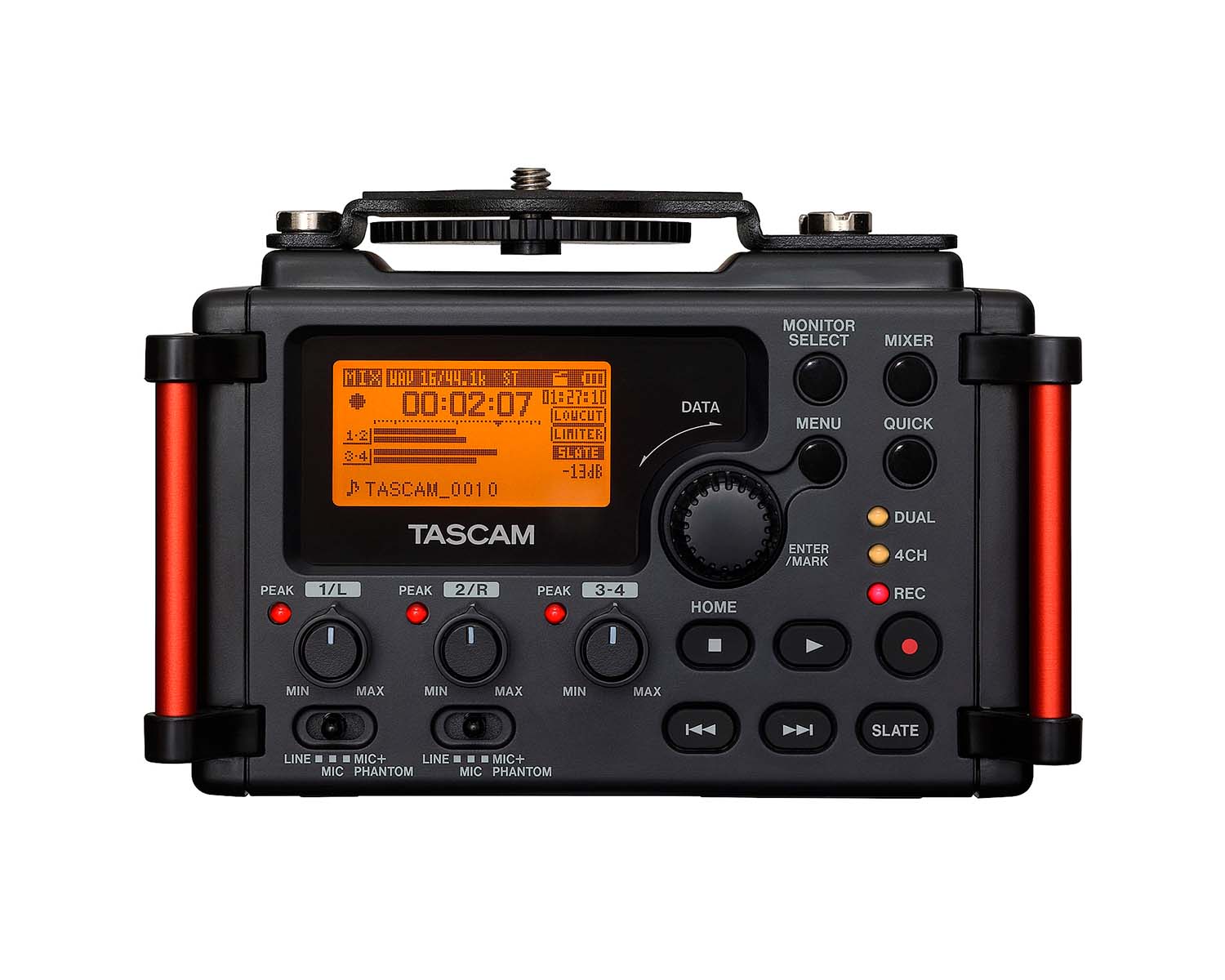

• 128x64 pixel LCD with backlight
• USB 2.0 connection for high-speed transferring of files
• Mini USB cable included
• Operates on 4-AA batteries, an AC adapter (sold separately) or USB bus power
• Can extend battery life with BP-6AA battery pack (sold separately)
• Dedicated remote control jack for the wired RC-10 remote control or RC-3F footswitch (both sold separately)
• Internal mixer: PAN and LEVEL controls
• Low cut filter (40/80/120Hz)
• Limiter (1/L and 2/R can be selected for linked operation)
• Delay function for microphone distance adjustment (up to 150ms)
• M-S decode functionSlate tone generator (AUTO/MANUAL)
• Selectable duration of slate tone from four positions (0.5/1/2/3 sec, when auto-generated)
• Selectable slate tone generation. (3 positions: OFF/HEAD/HEAD+TAIL, when auto-generated)
• File naming format can be set to use a user-defined word or date
• Dual-recording function allows two files to be recorded simultaneously at different levels
• Auto-record function can automatically start and stop recording at set leve
• lPre-recording function allows the unit to record a 2 second sound buffer before recording is activated
• Self-timer function for solo recording
• New file starts recording automatically without interruption when maximum file size is reached
• Track incrementing function allows a recording to be split by creating a new file when desired
• Jump back and play function
• Equalizer function for playback, and level alignment function to enhance the perceived overall sound pressure
• Resume function to memorize the playback position before the unit is turned off
• MARK function up to 99 points per audio track
• DIVIDE function

Product Specifications

General

• Recording media: SD card(64MB to 2GB), SDHC card(4GB to 32GB)
• Recording format:
  • WAV: 44.1/48/96kHz, 16/24bit
  • BWF: 44.1/48/96kHz, 16/24bit
• Number of channels: 4-channel (stereo x2)
• Analog audio input:
  • 1/L, 2/R connectors
    • Connector: XLR-3-31 (1:GND, 2:HOT, 3:COLD)/6.3mm(1/4")TRS standard jack
  • Set to "MIC / MIC+PHANTOM"
    • Input impedance: 2k ohms
    • Phantom power: 48V +/-4V(10mA/CH) / 24V +/-4V(10mA/CH)
    • Maximum input level: 0dBu
    • Minimum input level: -72dBu
    • MIC input gain: TRIM MAX
      • LOW: +11dB
      • MID: +36dB
      • HIGH: +52dB
      • HIGH+PLUS: +64dB
  • Set to “LINE”
    • Input impedance: 10k ohms or more
    • Standard input level: +4dBu
    • Maximum input level: +24dBu
  • 3-4 connector
    • Connector: 3.5mm (1/8") stereo mini jack (this connector can be supplied plug-in power)
    • Input impedance: 10k ohms
    • Maximum input level: +10dBV
    • Minimum input level: -50dBV
    • MIC input gain: TRIM MAX
      • LOW: +3dB
      • HIGH: +26dB
      • HI + PLUS: +38dB
  • CAMERA IN connector
    • Connector: 3.5mm (1/8") stereo mini jack
    • Input impedance: 10k ohms
    • Standard input level: -10dBV
    • Maximum input level: +6dBV
• Analog audio output
  • CAMERA OUT connector
    • Connector: 3.5mm (1/8") stereo mini jack
    • Output impedance: 200 ohms
    • Standard output level: -50dBV
    • Maximum output level: -30dBV
  • LINE OUT connector
    • Connector: 3.5mm (1/8") stereo mini jack
    • Output impedance: 200 ohms
    • Standard output level: -10dBV
    • Maximum output level: +10dBV
• PHONES connector:
  • Connector: 3.5mm (1/8") stereo mini jack
  • Maximum output level: 50mW + 50mW
• USB
  • Connector: Mini-B type
  • Format: USB2.0 HIGH SPEED mass storage class
• REMOTE
  • Connector: 2.5mm TRS jack
• Power:
  • Four AA batteries(Alkaline or NI-MH),
  • USB bus power
  • Dedicated AC adapter(TASCAM PS-P515U, sold separately)
  • Dedicated external battery pack(TASCAM BP-6AA, sold separately)
• Power consumption: 5.4W
• Continuous operation time: 2ch WAV, 44.1kHz, 16bit rec
  • DR-60D
    • Alkaline batteries (EVOLTA)
      • About 2:30 min (Phantom on)
      • About 4:30 min (Phantom off)
    • NI-MH batteries (eneloop)
      • About 3:15 min (Phantom on)
      • About 5:00 min (Phantom off)
    • NI-MH batteries (eneloop pro)
      • About 3:45 min (Phantom on)
      • About 6:00 min (Phantom off)
  • DR-60D+BP-6AA
    • Alkaline batteries (EVOLTA)
      • About 5:30 min (Phantom on)
      • About 10:30 min (Phantom off)
    • NI-MH batteries (eneloop)
      • About 7:30 min (Phantom on)
      • About 12:00 min (Phantom off)
    • NI-MH batteries (eneloop pro)
      • About 9:30 min (Phantom on)
      • About 14:30 min (Phantom off)
• Operating temperature: 0˚C to 40˚C
• Standard accessories: USB cable, warranty card, Owner's manual

Physical & Dimensions

• Height: 93.2mm
• Width: 133mm
• Depth: 78mm
• Weight: 510g
