DX-S8-W 8

Price:: RRP: £396.00 inc VAT
Code:: BIADXS8W
Manufacturer Code:: 910.0110.900
Brand:: Biamp

Main Features

8" surface mountable speaker
The same components and voicing as the DX ceiling speakers
Built-in 70 V/ 100 V autoformer
Low impedance input
Wether-resistant capability
Uniform coverage from coaxially mounted HF/LF drivers

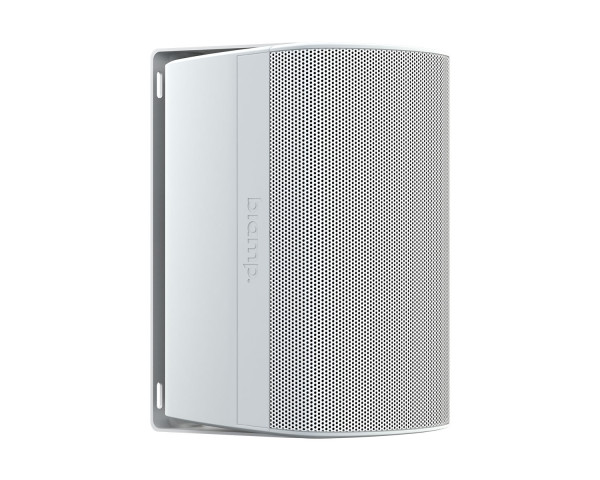

DX-S8-W 8" 2-Way Coaxial Surface-Mount Loudspeaker White

The Desono™ DX surface mount loudspeakers provide high efficiency, high output, high intelligibility and low distortion in an attractive design. These loudspeakers install quickly and have the same components and voicing as the DX ceiling loudspeakers. The DX surface mount loudspeakers are equipped with a built-in 70 V/100 V autoformer and low impedance input.

For larger installations, the 8" coaxial DX-S8 provides higher sound pressure levels, higher sensitivity and greater bass extension. The DX-S8 also easily outperforms competitive 10" format loudspeakers. With a modern appearance that merges well in most environments, combined with weather-resistant capability suitable for direct outdoor use, the DX-S8 can be used in a wide variety of speech and music applications.

Product Features

8" surface mountable speaker
The same components and voicing as the DX ceiling speakers
Built-in 70 V/ 100 V autoformer
Low impedance input
Wether-resistant capability
Uniform coverage from coaxially mounted HF/LF drivers
High efficiency, high output, high intelligibility, low distortion
Choice of models with ClickMount™

Product Specification

Operating Mode: Single Amplified with DSP
Operating Environment: Indoor / Outdoor Direct Exposure
Operating Range (-10dB): 62 Hz to 18 kHz
Nominal Beamwidth (H x V): 110° x 110 °
Transducers: LF 1 x 8" (203 mm) | HF 1 x 1.25" (32 mm) exit compression driver
Sensitivity: 95 dB (2.83 V) 94 dB (1 W at rated impedance)
Nominal Continuous Power: Handling4 Passive 35 V (175 W @ 7 Ω)
Nominal Maximum SPL5: Passive | Peak: 122 dB | Continuous: 116 dB
Rated Continuous Voltage: Passive | 29.2 V (29 dBV)
Rated Maximum SPL(Processed): Passive | Peak: 126 dB | Continuous: 114 dB
Autoformer: 70 V: 120 W, 60 W, 30 W, 15 W; 100 V: 120 W, 60 W, 30 W
Recommended Amplifiers: Passive | 175 W - 350 W into 8 Ω, (37 V - 53 V)
Crossover Frequency: 1.4 kHz
Required Accessory: 60 Hz, 12 dB/oct. electronic high pass filter

PHYSICAL

Input Connection : Lever-actuated wire clamping 4-position terminal block with pass-through
Controls: Wattage / low impedance selector switch
Mounting Provisions: ClickMount pan-tilt bracket or U-Bracket
Certifications: ETL listed, certified to CSA STD C22.2# 62368-1
Environmental Rating: IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation), IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2), IEC 60068-2-60 (Chlorine)
Dimensions H x W x D: 385 x 255 x 260 mm (15.16" x 10.04" x 10.24")
Weight: 7.71 kg (17.0 lbs) - loudspeaker only
