ePS10-EN54 10

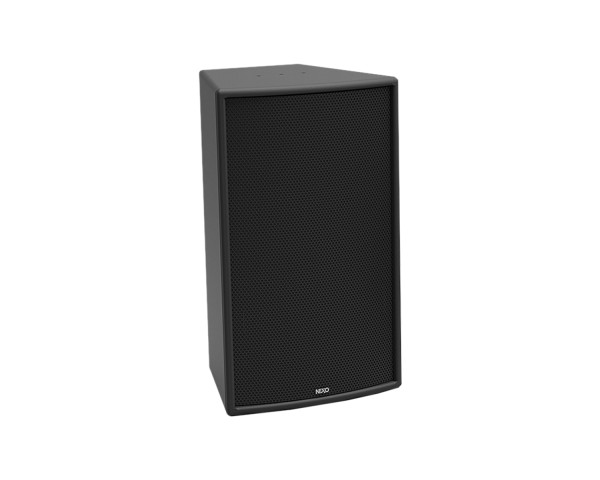

NEXO ePS10-EN54 10 Loudspeaker UV/Salt Water Protection EN54 IP55 Blk - Image 2

Price:: RRP: £1,286.48 inc VAT
Code:: NEXEPS10EN54
Manufacturer Code:: 01EPS10-EN54
Brand:: NEXO

Main Features

EN54-24 certified, 2-way passive, with high excursion 10” LF and 1.4” diaphragm HF
High power (130 dB peak) point source for outdoor fixed installations
Lightweight (14.8 kg / 32.6 lbs) design using robust 15 mm Birch plywood enclosure
NEXO’s Asymmetrical Dispersion Constant Directivity horn design (”PS” Horn), rotatable
IP55 protection level and enhanced all-weather resistance
Finish: Black

ePS10-EN54 10" Loudspeaker UV/Salt Water Protection EN54 IP55 Blk

Measuring 531mm high x 316mm wide x 285mm deep and weighing 14.8Kg, the ePS10-EN54 combines a high excursion 10-inch LF driver with a 1.4-inch diaphragm HF driver in a trapezoidal cabinet constructed in a bass-reflex design from 15mm Baltic birch plywood. Achieving a peak SPL of 130dB with a frequency range of 70Hz to 20kHz, the ePS10-EN54 features a rotatable asymmetric horn, convenient rigging points on the cabinet top, bottom and back, and two pairs of In/Out connectors on pitch screw terminal blocks with an IP cover.

Product Features

EN54-24 certified, 2-way passive, with high excursion 10” LF and 1.4” diaphragm HF
High power (130 dB peak) point source for outdoor fixed installations
Lightweight (14.8 kg / 32.6 lbs) design using robust 15 mm Birch plywood enclosure
NEXO’s Asymmetrical Dispersion Constant Directivity horn design (”PS” Horn), rotatable
IP55 protection level and enhanced all-weather resistance
Finish: Black

Product Specifications

With NEXO Processing

Frequency Response @-6 dB: 70 Hz to 20 kHz
Sensitivity 1W@1m: 101 dB SPL Nominal
Peak SPL@1m: 130 dB
Vertical Dispersion: +25°/-30°
Horizontal Dispersion: 50° to 100° asymmetrical
Crossover Frequency: 70 Hz, 120 Hz
Nominal Impedance: 8 Ω
Recommended Power: 500 to 800 Watts / 8 Ohms

Specifications

Number of ways: 2 way passive
LF Component: 10” 8 Ohms long excursion neodymium driver
HF Component: 1.4” diaphragm 8 Ohms HF driver on an Asymmetrical Dispersion (“PS”) horn
Connectors: 2 pairs (In/Out) of 5 mm pitch Push-in Cage Clamp terminal blocks (+/- poles)
Compatible cables section: Cables from 0.2 mm² to 4 mm² (AWG 24 to 12) copper section
Compatible cables outside diameter: Cable with maximum outside diameter of 11 mm
Rigging points: 3x M6 - 70 mm pitch rigging points (back) + 2x extra M6 and 1x M10 (top/bot)
Material: 15 mm thick birch plywood body with polyurethane coating and galvanized grill
Finish: Black structural paint (RAL9005 or Custom RAL upon request)
Front Finish: Galvanized grill in front of UV & Fire resistant acoustic fabric
Height x Width x Depth: 531mm x 316mm x 285mm (20.9” x 12.4” x 11.2”)
Weight: Net: 14.8 kg (32.6 lbs)
Operating temperature range: 0°C - 40 °C (32° F - 104° F)
Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
IP Rating: IP55

System Operation

Recommended powering solution: NXAMP4x1mk2 Powered TDcontroller: 1 x ePS10 per channel
Optional powering solution:
- DTDcontroller + DTDAMP4x1.3 : Up to 2 x ePS10 per channel
- NXAMP4x2mk2 Powered TDcontroller: Up to 4 x ePS10 per channel
- NXAMP4x4mk2 Powered TDcontroller: Up to 4 x ePS10 per channel
