EX-S6 6.5

Price:: RRP: £540.00 inc VAT
Code:: BIAEXS6TB
Manufacturer Code:: 911.1810.900
Brand:: Biamp

Main Features

Exceptional audio clarity with small footprint and attractive styling
Uniform coverage from coaxially mounted HF/LF drivers
6-position switch selects 70 V/100 V taps or low impedance bypass
Utilizes innovative ClickMount pan-tilt for mounting
ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant
EN54-24 and ISO 7240-24 certification

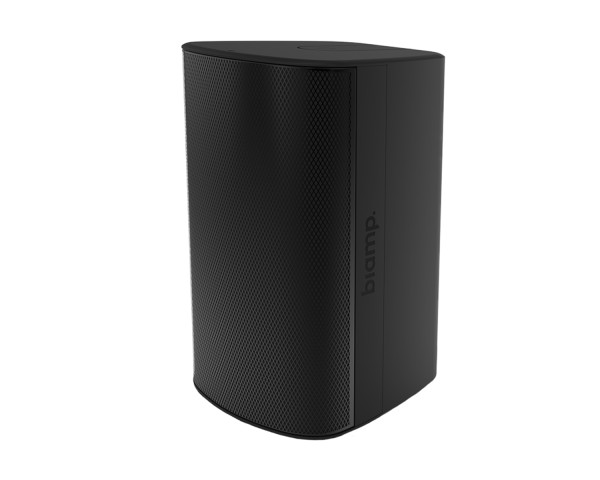

EX-S6 6.5" 2-Way Coaxial Surface-Mount Speaker Tilt Bracket Black

The Desono EX-S6, the smallest member of EX Series, 6.5” two-way surface mount loudspeaker provides discreet, distributed sound in applications requiring exceptional audio clarity with a small visual footprint. With its wide coverage at 110° wide dispersion and flat response down below 80Hz, EX-S6 is optimal for near field listening.

Designed for easy and fast installation, our innovative, patented ClickMount™ brackets provide installers with two distinct mounting options. The ClickMount pan-tilt bracket provides indexed aiming control and allows for mounting EX Series quickly in either vertical or horizontal orientation without moving the bracket position. Brackets are theft and tamper resistant.

Product Features

Exceptional audio clarity with small footprint and attractive styling
Uniform coverage from coaxially mounted HF/LF drivers
6-position switch selects 70 V/100 V taps or low impedance bypass
Utilizes innovative ClickMount pan-tilt for mounting
ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant
EN54-24 and ISO 7240-24 certification

Product Specifications

General

Operating Mode: Passive with selectable low-impedance or 70 V/100 V operation
Operating Environment: Indoor/Outdoor
Operating Range (-10 dB): 2 58 Hz to 20 kHz
Nominal Beamwidth (H x V): 120° x 120°
Transducers:
- LF 1 x 6.5" (165 mm) treated paper cone
- HF 1 x 1" (25 mm) treated soft dome tweeter w/ waveguide
Sensitivity: @ 1 m 89 dB (2.83 V) 89 dB (1 W, 8 Ω)
Nominal Continuous Power Handling: 40 V (200 W, 8 Ω Nominal Impedance)
Nominal Maximum SPL (Processed):
- @ 1 m
- Continuous: 112 dB
- Peak: 118 dB
Rated Continuous Voltage: 31.6 V (30 dBV)
Rated Maximum SPL (Processed):
- @ 1 m
- Continuous: 109 dB
- Peak: 121 dB
Transformer: 70 V: 80 W, 40 W, 20 W, 10 W; 100 V: 80 W, 40 W, 20 W
Crossover / Protection: 1.58 kHz crossover, driver protection circuitry
Required Accessories: 50 Hz, 12 dB / oct. Butterworth high pass filter; DSP preset
Recommended Amplifiers: 200 W - 400 W, 8 Ω (40 V - 57 V)
Input Connection: Lever-actuated wire clamping 4-position terminal block with pass-through
Controls: Wattage / low impedance selector switch
Mounting Provision: ClickMount pan-tilt bracket
Compliance:
- ETL listed to comply with UL 1480A,
- CSA STD C22.2# 62368-1
- EN54-24, ISO 7240-24, IEC 62368-1
Environmental Rating:
IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation),
IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2),
IEC 60068-2-60 (Chlorine)
