EXTC-Stereo Stereo Guitar Effects Interface and Reamper

« return to previous page

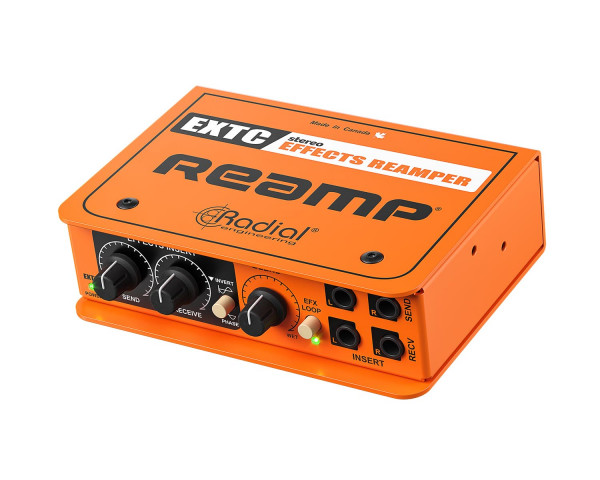

Radial EXTC-Stereo Stereo Guitar Effects Interface and Reamper - Main Image

Radial EXTC-Stereo Stereo Guitar Effects Interface and Reamper - Image 1

Radial EXTC-Stereo Stereo Guitar Effects Interface and Reamper - Image 2

Radial EXTC-Stereo Stereo Guitar Effects Interface and Reamper - Image 3

Radial EXTC-Stereo Stereo Guitar Effects Interface and Reamper - Image 4

Radial EXTC-Stereo Stereo Guitar Effects Interface and Reamper - Image 5

Price:: RRP: £500.09 inc VAT
Code:: RADEXTCSTEREO
Manufacturer Code:: R800-1437-00
Brand:: Radial

Main Features

Stereo EFX loop to Reamp through any guitar pedals
Send & Receive controls optimize signal path
Blend control for precise wet/dry adjustment
Transformer isolation to eliminate hum and buzz
Line-level i/o over both XLR and TRS connectors
EFX on/off switch for A/B auditioning

The EXTC Stereo allows you to connect guitar effects pedals to the inputs and outputs of pro audio equipment such as recording interfaces and mixing consoles, so you can incorporate stereo pedals into your recordings and explore new creative possibilities.

The EXTC-Stereo gives you the ability to connect stereo effects pedals such as reverbs and delays to the line-level inputs and outputs of your console or recording interface. Use it to send drum overheads to a multi-tap delay, or breathe new life into a stale keyboard patch with a flanger or chorus pedal. Try it on vocals, strings, or any prerecorded track to add a new creative element to your mixes and revitalize your old pedal collection.

Product Features

Stereo EFX loop to Reamp through any guitar pedals
Send & Receive controls optimize signal path
Blend control for precise wet/dry adjustment
Transformer isolation to eliminate hum and buzz

Applications

Use with stereo guitar effects on prerecorded tracks
Take vocals, drums, or strings through effects pedals for new and unique sonic combinations
Can also be used for standard Reamping through guitar amplifiers

Extras

Line-level i/o over both XLR and TRS connectors
EFX on/off switch for A/B auditioning
Phase invert to compensate for vintage pedals
Can be rack-mounted with SA series rack adaptor

Product Specifications

Audio circuit type: Proprietary Active Circuit with Class-A buffers
Number of channels: 2
Frequency response: 20Hz to 20kHz (-0.5dB/+0.5dB)
Dynamic range: >+130dBu
Total harmonic distortion: 0.007% @ 0dBu, 1kHz
Intermodulation Distortion: 0.002% @ 0dBu, 1kHz
Common Mode Rejection Ratio: 34dBu @ 60Hz, 42dBu @ 3kHz
Noise: -105dBu
Maximum Input: +11dBu
Input Connectors: 1/4” TRS/XLR Combo Jacks, 1/4” TS Insert Recv
Output Connectors: 1/4” TRS, XLR, 1/4” TS Insert Send
Extras: SA series rack mount available
Construction: 14-gauge Steel Chassis
Finish: Durable Powder Coat
Power: 15VDC 400mA
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
