HDE2020D MKII TourGuide Digital Stethoset Receiver

« return to previous page

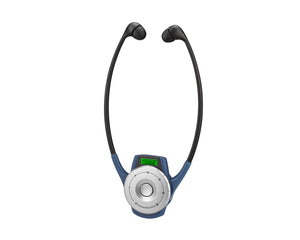

Sennheiser HDE2020D MKII TourGuide Digital Stethoset Receiver - Main Image
Price:
RRP: £502.80 inc VAT
Code:
SENHDE2020D
Manufacturer Code:
504796
Brand:
Sennheiser

Quantity required:

Main Features

  • Digital RF signal transmission
  • Licence free Frequency range (EU, US)
  • Stethoset - Integrated headphones
  • Automatic on/off switch
  • Intuitive operating concept
  • Battery status
Share:

HDE2020D MKII TourGuide Digital Stethoset Receiver

HDE 2020-D stethoset Tourguide receiver is the comfortable to wear receiver of the digital Tourguide System 2020-D. This truly unique device integrates both the receiver and headphones and delivers a number of advantages for you. No longer will your audience have to carry any more equipment than is absolutely necessary. Being a one piece device, they will no longer risk a tangle of cables! The powerful battery ensures that the device will work for up to 8 hours. Regardless of whether you are providing your tour in a big city or a large corporation, Tourguide 2020-D will ensure that your tour will proceed without interruption.

The stethoset receiver automatically deactivates itself the moment that it is taken off, meaning battery life will be preserved. No longer will the Tourguide need to check all of the sets after one tour finishes and before the next tour starts. Your tour participants will be able to individually adjust the volume through a rotary control on the receiver, without the need to even take the device off. An LC display will clearly confirm the volume, battery status, quality of reception and the channel being listened to. Channels can easily be set and adjusted by using the middle buttons. The reception range is about 100 m if your tour is outdoors and about 50 m if your tour is indoors.

Product Features

  • Digital RF signal transmission
  • Licence free Frequency range (EU, US)
  • Stethoset - Integrated headphones
  • Automatic on/off switch
  • Intuitive operating concept
  • Battery status
  • Sturdy housing

Product Specifications

  • Modulation:  2 FSK
  • RF frequency range:  863 - 865 MHz
  • Number of channels (tourguide mode):  6
  • Number of channels (conference mode):  8
  • Frequency response:  100 – 7,000 Hz
  • Sound pressure level:  120 dB SPL at 1 kHz
  • THD at 1 kHz:  < 1 %
  • Typical operating time:  8 hrs
  • Lithium polymer battery:  830 mAh
  • Operating temperature:  0 – 50 °C
  • Dimensions:  245 x 125 x 20 mm (965“ x 492“ x 079“)
  • Weight incl Battery:  70 g (247 oz)

Product Downloads
