Main Features
The only product of its kind that provides complete, gap-less coverage in small- to mid-size spaces
Up to four radiators can be added to the LT-84 system providing additional coverage up to 2,787 m2 (30,000 ft2)
Single-cable CAT-5e provides power and audio signal for ease of setup
Simple installation with the included mounting hardware

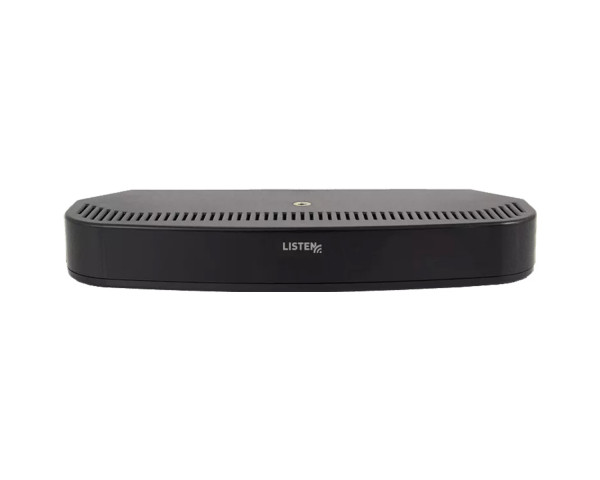

The LA-141 Expansion Radiator (Pat. 9,712,246) from Listen Technologies expands on the functionality and coverage area of the LT-84 Infrared Transmitter/Radiator combo system, giving users and clients an uninterrupted, high-performance listening experience.
Up to four (4) LA-141 Expansion Radiators can be added to the LT-84 system, providing additional coverage up to 2,787 m2 (30,000 ft2) with LR-4200-IR/LR-5200-IR receivers or 697 m2 (7,500 ft2) with LR-42/LR-44 receivers in single-channel mode. A single CAT-5e cable provides both power and signal to the radiators, and the included mounting hardware and single-cable design make installation and setup a breeze.
Product Features
The only product of its kind that provides complete, gap-less coverage in small- to mid-size spaces
Up to four radiators can be added to the LT-84 system providing additional coverage up to 2,787 m2 (30,000 ft2)
Single-cable CAT-5e provides power and audio signal for ease of setup
Simple installation with the included mounting hardware
Product Specifications
Audio
System Distortion: < 2% (THD) System Specification (wireless end-to-end with LR-44)
System Signal to Noise Ratio (A-Weighted): > 60 dB (SNR) System Specification (wireless end-to-end with LR-44)
System Frequency Response: 63 Hz - 15 kHz (+/- 3 dB) System Specification (wireless end-to-end with LR-44)
Controls
Indicator Lights On/Off Switch: Two (2) position switch - Indicator Lights OFF, Indicator Lights ON
Delay Compensation: Four (4) position rotary switch setting (0, 1, 2, 3)
Indicators
RJ-45 Amber LED: Solid Amber indicates carrier is present and IR is being transmitted
RJ-45 Green LED: Solid Green indicates power is applied to unit
Power Save Mode: Carrier will shut off when no audio is present for 15 minutes on both channels
to preserve radiator life.
Expansion Link Output: One (1) RJ-45 connector - Provides RF Signal and Power to one additional LA-141.CAT-5e cable 24 AWG, 100 ft. (30 m) maximum cable length, two (2) LA-141s per daisy chain (total daisy chain cannot extend beyond two expansion radiators)
Expansion Link Input: One (1) RJ-45 connector - Receives RF Signal and Power from LT-84
IR
Coverage Area: 30,000 ft² (2787 m²) single channel with LR-4200-IR/LR-5200-IR receivers or
7,500 ft² (697 m²) single channel with LR-42/LR-44 receivers
IR Emitter Power: 1.49 W
Power
Power Supply: 12 VDC, Provided via LT-84 Expansion Link Output RJ-45s
Current Draw: 600 mA per LA-141, maximum of two (2) LA-141s daisy chained with CAT-5e cable 24 AWG 100 ft. (30 m) to each LT-84 Expansion Link Output
Physical
Colour: Black with White Silk Screening
Shipping Weight: 3.0 lbs. (1.4 kg)
Mounting: Can be mounted on a wall, ceiling, or table with provided hardware (screws and hollow wall anchors not provided). Optional LA-347 Wall Box Mounting. Plate is available for mounting to a standard single gang electrical box.
Dimensions: (H x W x D) 1.5 x 10.7 x 4.1 in. (3.81 x 27.2 x 10.5 cm)
Unit Weight: 0.6 lbs. (0.3 kg)
Environmental
Temperature – Operation: 14 °F (-10 °C) to +104 °F (40 °C)
Temperature – Storage: -4 °F (-20 °C) to +122 °F (50 °C)
Relative Humidity: 0 to 95% relative humidity, non-condensing
