M40W6 6" Cardioid Hanging Gooseneck Ceiling Microphone

« return to previous page

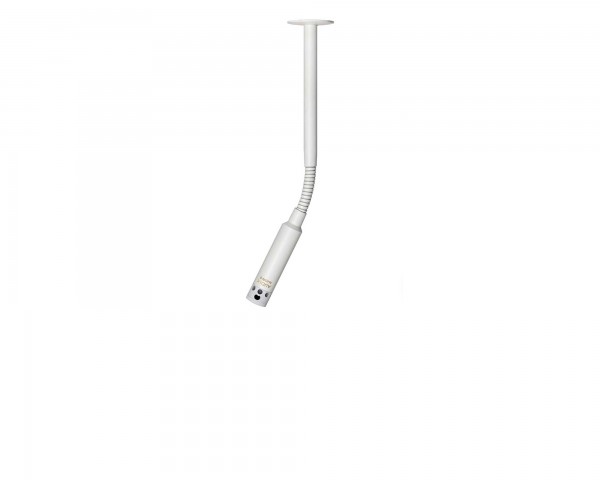

Audix M40W6 6 Cardioid Hanging Gooseneck Ceiling Microphone - Main Image
Price:
RRP: £350.00 inc VAT
Code:
ADXM40W6
Manufacturer Code:
AX-M40W/6
Brand:
Audix

Quantity required:

Main Features

  • Optimized for voice recognition
  • Immunity from RF interference
  • Extremely low noise, high sensitivity
  • Integrated preamp circuitry
  • 12mm gold vapor diaphragm
  • White finish
Share:

M40W/6 Mini 6" Gooseneck Condenser+ Preamp Cardiod White

The M40 is a miniaturized condenser microphone with a fully integrated preamp designed with very high sensitivity for distance miking. The primary applications for the ceiling mounted M40 include Video & Teleconferencing (VTC), distance learning, hospital rooms, surveillance and ambient room miking.

The M40 ceiling microphone has complete immunity from RF interference caused by cell phones and GSM devices. The M40 comes with a cardioid capsule, allowing the microphone to be used in a wide variety of applications.

The M40 installed ceiling microphone is easy to install requiring only that a 5/8 inch hole be drilled in the ceiling with no additional tools required. The cable assembly is equipped with a terminal block connector. For installations where plenum rated cable is to be used a UL rated, metal plenum junction box is available.

Product Features

  • Optimized for voice recognition
  • Immunity from RF interference
  • Point and shoot directivity
  • Integrated preamp circuitry
  • 12mm gold vapor diaphragm
  • Extremely low noise, high sensitivity
  • White finish
  • 6" Gooseneck

Product Specifications

General

  • Transducer Type: Condenser
  • Frequency Response: 60 Hz - 10 kHz
  • Polar Pattern: Cardioid
  • Output Impedance: 150 ohms
  • Sensitivity: 37 mV / Pa @ 1k
  • Signal/Noise Ratio (A-weighted): 72 dB
  • Equivalent Noise Level (A-weighted): 22 dB
  • Maximum SPL @ .5% THD: ≥130 dB
  • Dynamic Range: 108 dB
  • Power Requirements: 8 - 52 V Phantom
  • Connector: 3-pin XLRm
  • Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
  • Materials/Finish: White

Physical & Dimensions

  • Weight: 20g
  • Length: 54mm

What's in the Box?

  • 1 x CONN170F 1' Integrated Microphone Cable
  • 1 x CONN170M The Mating Terminal Connector
