MA30 100V Mixer Amp 30W 1-Mic/2-Line 240VAC 2U

« return to previous page

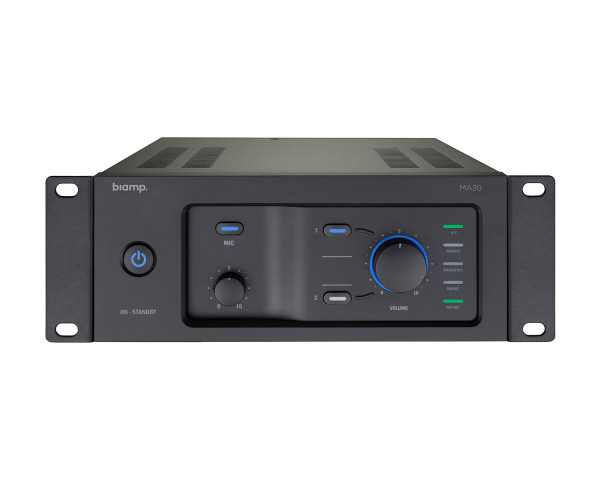

Apart MA30 100V Mixer Amp 30W 1-Mic/2-Line 240VAC 2U - Main Image
Apart MA30 100V Mixer Amp 30W 1-Mic/2-Line 240VAC 2U - Image 1
Apart MA30 100V Mixer Amp 30W 1-Mic/2-Line 240VAC 2U - Image 2
Apart MA30 100V Mixer Amp 30W 1-Mic/2-Line 240VAC 2U - Image 3
Price:
RRP: £331.20 inc VAT
Code:
APAMA30
Manufacturer Code:
913.0661.900
Brand:
Apart

Quantity required:

Main Features

  • Intuitive user interface
  • Prominent, illuminated front volume control
  • Compact 9.5" housing
  • Smart left-to-right 4 level priority and rear panel design
  • 1 mic/line input and 2 stereo line, mono summed inputs
  • Emergency input, paging mic with chime and a 24VDC override output on rear panel
Share:

MA30 100V Mixer Amp 30W 1-Mic/2-Line 240VAC 2U

During the redefining process of the mixing amplifier one of the key-conclusions was to bring it back to basics and make it user-friendly. The cutting-edge Apart MA30 has an unseen intuitive user interface and ground breaking, logic and sheer rear panel. The volume control rotary on the front panel is prominent, illuminated, bigger and put in the forefront while the mic volume control is smaller and recessed. The MA30 comes in a compact 9.5” housing with 1 mic/line input and 2 stereo line, mono summed inputs. The smart left-to-right 4 level priority and rear panel design makes it intuitive for installers. On the rear panel you can find an emergency input, paging mic with chime and a 24VDC override output. Every end-user and installer will instantly see and understand how to operate or install this progressive MA30 mixing amplifier.

Product Features

  • Intuitive user interface
  • Prominent, illuminated front volume control
  • Compact 9.5” housing
  • Smart left-to-right 4 level priority and rear panel design
  • 1 mic/line input and 2 stereo line, mono summed inputs
  • Emergency input, paging mic with chime and a 24VDC override output on rear panel

Product Specifications

General

  • Power supply: 100 - 240 VAC
  • Power consumption (max): 60watts
  • Output power RMS 100 volts: 30watts
  • Output power RMS 4 ohms: 30watts
  • Dynamic output power 100 volts: 30watts
  • Minimum impedance load: 4 ohms
  • Output power tappings: 70 - 100 volts - 4 ohms
  • Zone outputs: 1
  • MIC inputs balanced: 2
  • Inputs with Phantom power: 1
  • Line input unbalanced: 2
  • Tone control: Yes
  • Priority switch: 2
  • VOX mute: Yes
  • Chime: Yes
  • Emergency input: 1
  • Priority output: 1
  • Priority levels: 4
  • Power amp topology: Class-D
  • Frequency response (in Hz): 60 - 20 k
  • Cooling system: Convection
  • Applicable in 100V: Yes
  • Applicable low impedance: Yes

Physical & Dimensions

  • Height - rack units (1U=44 mm): 2 U
  • Depth (build in): 240mm
  • Depth (incl front): 250mm
  • Weight: 2.4kg
