MAS1W Microphone Button for MAS133 Inline Switch Box WHITE

« return to previous page

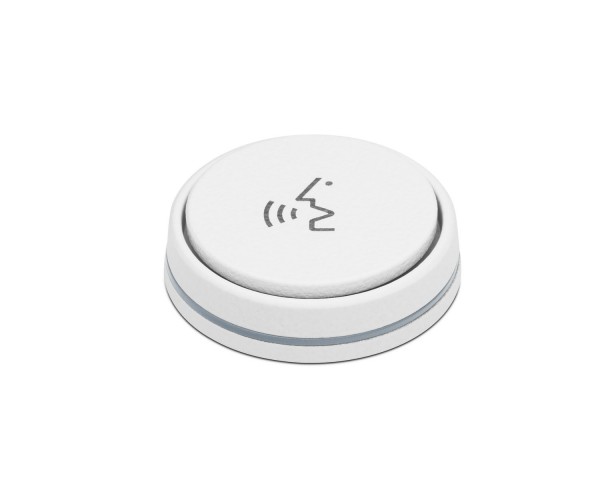

Sennheiser MAS1W Microphone Button for MAS133 Inline Switch Box WHITE - Main Image
Price:
RRP: £118.80 inc VAT
Code:
SENMAS1W
Manufacturer Code:
505619
Brand:
Sennheiser

Quantity required:

Main Features

  • Elegant and low-key appearance
  • Makes mic control a breeze
  • Connected to the MAS 133 inline switch box it can control any XLR-attached microphone
  • MAS 1 comes with a bi-colour status indicator
  • Finish: White
  • Article No: 505619
Share:

MAS 1 W - White

Elegant and low-key in its appearance, the sturdy MAS 1 microphone button makes mic control a breeze. Connected to the MAS 133 inline switch box it can control any XLR-attached microphone by means of programmable microphone activation modes (PTT, PTM, toggle ON/off, permanent on). For easy operation the MAS 1 comes with a bi-colour status indicator.

Product Features

  • Elegant and low-key appearance
  • Makes mic control a breeze
  • Connected to the MAS 133 inline switch box it can control any XLR-attached microphone
  • MAS 1 comes with a bi-colour status indicator
  • Finish: White
  • Article No: 505619

Product Specifications

  • Colour:
    • Body: White
    • LED light ring: red / green
  • Dimensions:  Height: 81 mm (8 mm above surface), Diameter: 28.5 mm
  • Connector: XLR-5M out, Pin assignment: 1 = gnd, 2 = Switch, 3 = LED red −, 4 = LED green −, 5 = LEDs +12 V in
  • Weight:  60 g
  • Phantom powering:  12 V (1.5 mA max.)
  • Operating temperature:  1 ° … +50 °C
  • Current consumption:  LED ring: 3 mA
  • Thread:  M 20

What's in the Box?

  • MAS 1 W (White)
  • Mounting material
  • Quick guide
