MICROD Miniature Instrument Mic for Drums & Percussion

« return to previous page
Clearance

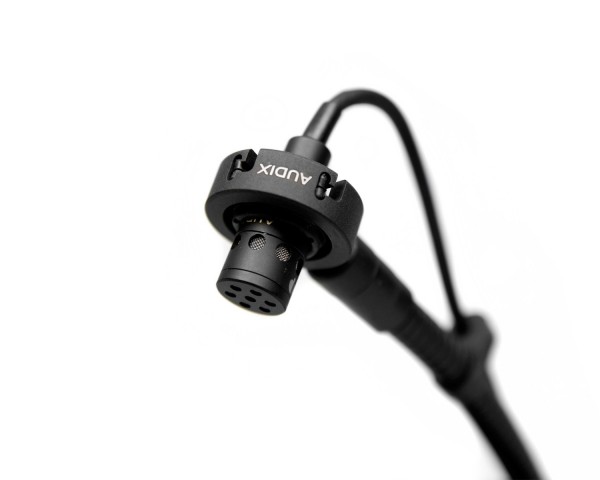

Audix MICROD Miniature Instrument Mic for Drums & Percussion - Main Image
Audix MICROD Miniature Instrument Mic for Drums & Percussion - Image 1
Audix MICROD Miniature Instrument Mic for Drums & Percussion - Image 2
Audix MICROD Miniature Instrument Mic for Drums & Percussion - Image 3
Audix MICROD Miniature Instrument Mic for Drums & Percussion - Image 4
Price:
RRP: £210.00 inc VAT
Code:
ADXMICROD
Manufacturer Code:
AX-MICROD
Brand:
Audix
Stock availability:
Stock: Checking stock

Quantity required:

Main Features

  • Miniaturised condenser microphone for professional stage and studio
  • Primarily aimed for miking drums and percussion instruments
  • Uniformly controlled hypercardioid polar pattern
  • Excellent isolation and feedback control on stage
  • Lightweight, compact and simple to use
  • Frequency range of 40 Hz - 20 kHz
Share:

MICROD Miniature Instrument Mic for Drums & Percussion

The MicroD is primarily a drum and percussion instrument microphone for professional stage and studio applications. The MicroD has a uniformly controlled Hypercardioid polar pattern and a smooth, accurate response in its frequency range.

This microphone is lightweight, compact and simple to use. The MicroD is housed in an aluminium ring and isolated by means of a rubber shock mount system. The MicroD Hypercardioid microphone attaches easily and firmly to a standard drum rim utilizing the patented DVICE rim mount system.

Product Featuers

  • Miniature condenser clip-on microphone
  • Manages high SPLs without distortion
  • DVICE rim mount clip
  • Rubber shock mount system reduces vibration
  • Includes APS910 phantom power adapter
  • Designed, assembled & tested in the USA
  • 3-year warranty

Product Specifications

General

  • Transducer Type: Pre-Polarized Condenser
  • Frequency Response: 40 Hz - 20 kHz
  • Polar Pattern: Hypercardioid
  • Output Impedance: 250 ohms
  • Sensitivity: 5.6 mV / Pa @ 1k
  • Equivalent Noise Level: 24 dB
  • Signal to Noise Ratio: 70 dB
  • Maximum SPL: ≥140 dB
  • Power Requirements: 9 - 52 V phantom
  • Connector: 3-pin mini to 3-pin XLRm (APS910)
  • Polarity: Positive pressure on diaphragm produces a positive voltage on pin 2 relative to pin 3

Physical & Dimensions

  • Materials: Finish Machined Brass Capsule / Black Finish
  • Gooseneck: Flexible Steel
  • Weight: 47 g / 1.6 oz
  • Length: 30 mm / 1.14 in

What's in the Box?

  • 1 x MicroD Instrument Microphone
  • 1 x 6' shielded cable
  • 1 x DVICEMICRO Optional Flexible Mini-gooseneck with Spring-loaded Rim Mount Clamp
  • 1 x APS910 48 V Phantom Power Adapter
  • 1 x WS20 External windscreen
  • 1 x P1 Carrying Pouch

Optional Accessories

  • MCMICRO - Mic stand adapter.
  • SMTMICRO - Optional mic stand adapter with rubber shock mount housed within an aluminium ring.
  • DFLEXMICRO - Dual pivot arm and extra wide butterfly jaws.
  • APS911 - Optional phantom power adapter. Runs on AA batteries when phantom power is not available. Features on/off switch and bass roll-off filter.
  • DCLAMPMICRO - Flexible mini-gooseneck lug clamp for drums, congas and percussion. Aluminium ring with rubber shock mount holder.
  • MCSWIVEL - Shock mount adapter with ball and socket pivot.
