Modena Hub+ Wireless Presentation Hub with Wifi Access Point

« return to previous page

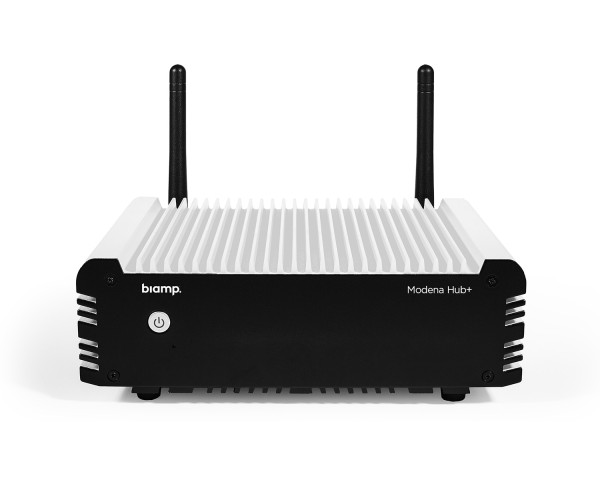

Biamp Modena Hub+ Wireless Presentation Hub with Wifi Access Point - Main Image
Biamp Modena Hub+ Wireless Presentation Hub with Wifi Access Point - Image 1
Biamp Modena Hub+ Wireless Presentation Hub with Wifi Access Point - Image 2
Price:
RRP: £1,200.00 inc VAT
Code:
BIAMODHUBP
Manufacturer Code:
913.1737.900
Brand:
Biamp

Quantity required:

Main Features

  • Enjoy a client-free experience with your web browser.
  • Meet everywhere: With Modena Hub+, any place is a meeting room.
  • Enable a display to receive content by connecting a computer running the web or software client, or an Android dongle; or run the Android TV app directly on a smart TV.
  • All personal devices can send and receive presentations directly to the screen of participants' laptops, tablets, or mobile devices.
  • Configure Modena Hub+ for large teaching spaces and give everyone a perfect view using Auditorium mode, for up to 150 users.
  • IT administrators have quick access to the configuration of all units installed in an enterprise via a powerful management web interface.
Share:

Modena Hub+ Wireless Presentation Hub with Wifi Access Point

Modena™ Hub+ is a wireless presentation hub that supports the new ways in which people are increasingly accustomed to working. Ideal for BYOD and BYOC spaces, Modena Hub+ allows participants to connect to meeting room AV equipment and USB accessories wirelessly, as well as enabling any participant to wirelessly receive its AV streams during a video conferencing session. Modena Hub+ supports most UC software and hardware devices, while enabling the user to wirelessly share content with other meeting participants. Modena Hub+ also connects to AV peripherals via USB and HDMI, and can support multiple USB devices via a standard USB hub or by connecting a Devio SCR-20 or SCR-25.

Product Features

  • Enjoy a client-free experience with your web browser.
  • Meet everywhere: With Modena Hub+, any place is a meeting room.
  • Enable a display to receive content by connecting a computer running the web or software client, or an Android dongle; or run the Android TV app directly on a smart TV.
  • All personal devices can send and receive presentations directly to the screen of participants' laptops, tablets, or mobile devices.
  • Configure Modena Hub+ for large teaching spaces and give everyone a perfect view using Auditorium mode, for up to 150 users.
  • IT administrators have quick access to the configuration of all units installed in an enterprise via a powerful management web interface.

Product Specifications

General

  • Modena Hub unit specifications:
    • Wireless presentation resolution:  Up to HD 1080p@30fps
    • Wireless USB feed resolution:  Up to HD 720p@30fps
    • WiFi network interface:
    • IEEE 802.1ac/ a b g n
    • 2.4/5 GHz antennas
    • WPA2-PSK Authentication
    • Wired network connection:  Ethernet RJ-45 port, 1000 Mbit/s
    • USB port:  USB 2.0/3.0
    • Media port:  HDMI
    • Power:  External power adaptor 12V DC
  • Environmental
    • Ambient Operating Temperature Range:  32 - 104° F (0 – 40° C)
    • Ambient Storage Temperature Range:  -4 - 140° F (-20 - 60° C)
    • Humidity:  0-95% relative humidity (non-condensing)
    • Altitude:  0-6,600 ft (0-2000m) MSL
  • Modena client requirements:
    • Desktop Client
      • CPU:  Intel® i5 equivalent or faster
      • Web browser:  Chrome™, Firefox™, Edge™
      • Windows® (presenter/viewer):  Windows 10 .NET®
      • Framework 4.5; Microsoft® Direct3D
      • Mac OSX® (presenter/viewer):  Mac OSX 10.11 or higher
    • Mobile Client
      • Android®:  Android 8 or higher
      • iOS®:  iOS 11 or higher
  • Network
    • Minimum Bandwidth:
      • 4 Mbps average / 15 Mbps peak per connected client  (upstream when presenting; downstream when receiving)
      • Additional 4 Mbps average / 15 Mbps peak for the videoconference host when using the Wireless USB feature
    • Wireless Connection:
      • 2.4Ghz 802.11n compatible
      • Wifi interface
      • 5Ghz 802.11ac compatible
      • Wifi interface (recommended)
      • Minimum distance between device(s) and access point: ~ 3 feet (~ 1 meter)
    • Signal Strength:
      • RSSI on connected devices:  stable above -65dBm (recommended > - 60dBm)
      • SNR (RSSI - Noise) on connected devices:  stable above 25dB (recommended > 35dB

Physical

  • Height:  2 inches (51 mm)
  • Width:  6.3 inches (160 mm)
  • Depth:  5.2 inches (132 mm)
  • Weight:  2.4 lbs (1.1 kg)
