NX 912-SMA 12" Professional Active Stage Monitor 1050W Black

« return to previous page

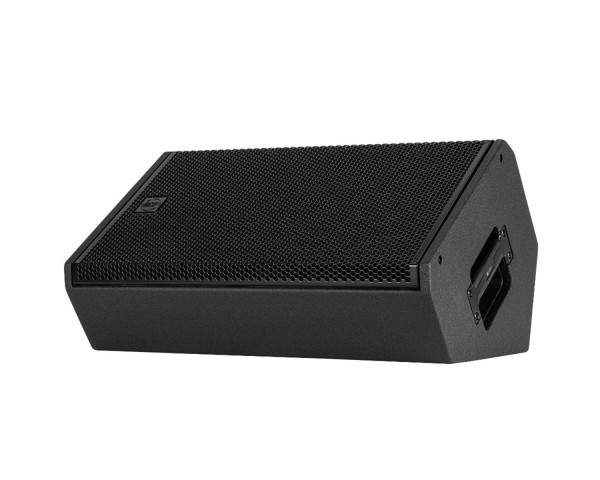

RCF NX 912-SMA 12 Professional Active Stage Monitor 1050W Black - Main Image
RCF NX 912-SMA 12 Professional Active Stage Monitor 1050W Black - Image 1
RCF NX 912-SMA 12 Professional Active Stage Monitor 1050W Black - Image 2
RCF NX 912-SMA 12 Professional Active Stage Monitor 1050W Black - Image 3
RCF NX 912-SMA 12 Professional Active Stage Monitor 1050W Black - Image 4
RCF NX 912-SMA 12 Professional Active Stage Monitor 1050W Black - Image 5
RCF NX 912-SMA 12 Professional Active Stage Monitor 1050W Black - Image 6
RCF NX 912-SMA 12 Professional Active Stage Monitor 1050W Black - Image 7
Price:
RRP: £1,101.60 inc VAT
Code:
RCFNX912SMA
Manufacturer Code:
13000783
Brand:
RCF

Quantity required:

Main Features

  • New design controlled dispersion TRW horn
  • 2100 Watt power and 130 dB max SPL
  • 100° x 70° coverage
  • FiRPHASE for 0° Phase Response
  • 12” Woofer, 2.5” v.c.
  • Compression driver with Kapton dome and 1,75 voice coil.
Share:

NX 912-SMA 12" Professional Active Stage Monitor 1050W Black

NX 912-SMA speaker is a stage monitor designed for sound providers, musicians, bands, and DJs. The combination of a 1.75” compression driver, 12” woofer, two-channel 2100W amplifier, and the TRW waveguide produces coherent 100° x 70° coverage for the listening area with up to 130dB SPL of distortion-free sound. Used as a stage monitor, stand-alone speaker system, or satellite paired with a subwoofer, the NX 912-SMA blends high performance and reliability in a compact package. Combining RCF proprietary FiRPHASE and Bass Motion Control DSP processing, NX 912-SMA Series speakers deliver absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and set up on stage or on a pole.

Product Features

  • New design controlled dispersion TRW horn
  • 2100 Watt power and 130 dB max SPL
  • 100° x 70° coverage
  • FiRPHASE for 0° Phase Response
  • 12” Woofer, 2.5” v.c.
  • Compression driver with Kapton dome and 1,75 voice coil.
  • Bass Motion Control Technology
  • IP Rated Powercon TRUE1 TOP IN/OUT Mains connections
  • Multifunctional cabinet

Product Specifications

Acoustical specifications

  • Frequency Response:  50 Hz ÷ 20000 Hz
  • Max SPL @ 1m:  130 dB
  • Horizontal coverage angle:  100°
  • Vertical coverage angle:  70°
  • Transducers Compression Driver:  1 x 1.0'', 1.75'' v.c
  • Woofer:  12'', 2.5'' v.c

Input/Output section

  • Input signal:  bal/unbal
  • Input connectors:  Combo XLR/Jack
  • Output connectors:  XLR
  • Input sensitivity:  -2 dBu/+4 dBu

Processor section

  • Crossover Frequencies:  1600 Hz
  • Protections:  Thermal, RMS
  • Limiter:  Soft Limiter

Power section

  • Total Power:  2100 W Peak
  • High frequencies:  700 W Peak
  • Low frequencies:  1400 W Peak
  • Cooling:  Convection
  • Connections:  Powercon TRUE1 TOP IN/OUT

Physical & Dimensions

  • Standard compliance Safety agency: CE compliant
  • Cabinet/Case Material:  Plywood
  • Handles:  1 on side and 1 on top
  • Pole mount/Cap:  Yes
  • Grille:  Steel
  • Colour:  Black
  • Height:  320 mm / 12.6 inches
  • Width:  620 mm / 24.41 inches
  • Depth:  394 mm / 15.51 inches
  • Weight:  20 kg / 44.09 lbs
