Obey 40 DMX Controller 192-Channels / 12 16-Channel 3U

« return to previous page
CHAUVET DJ Obey 40 DMX Controller 192-Channels / 12 16-Channel 3U - Main Image

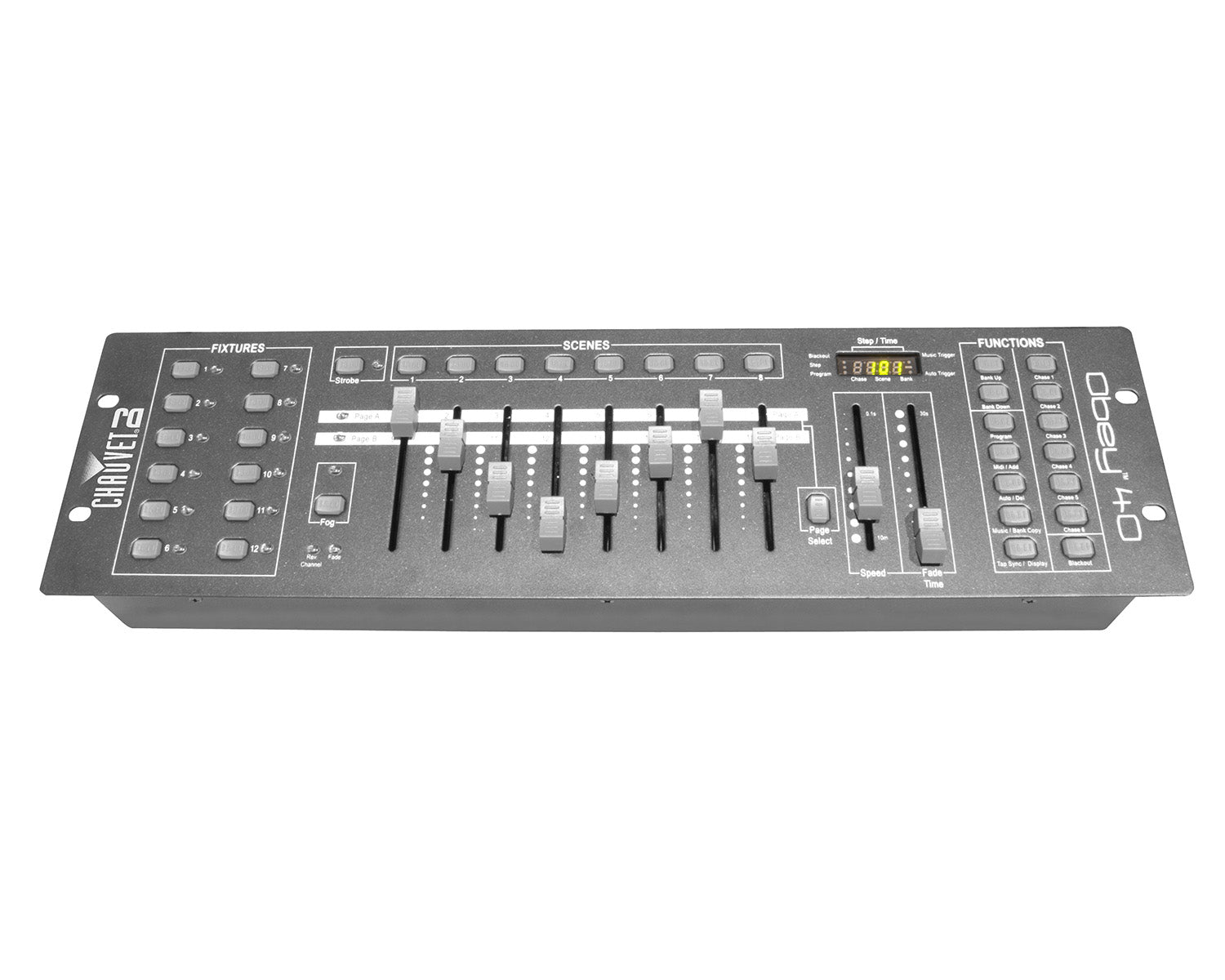

CHAUVET DJ Obey 40 DMX Controller 192-Channels / 12 16-Channel 3U - Image 1

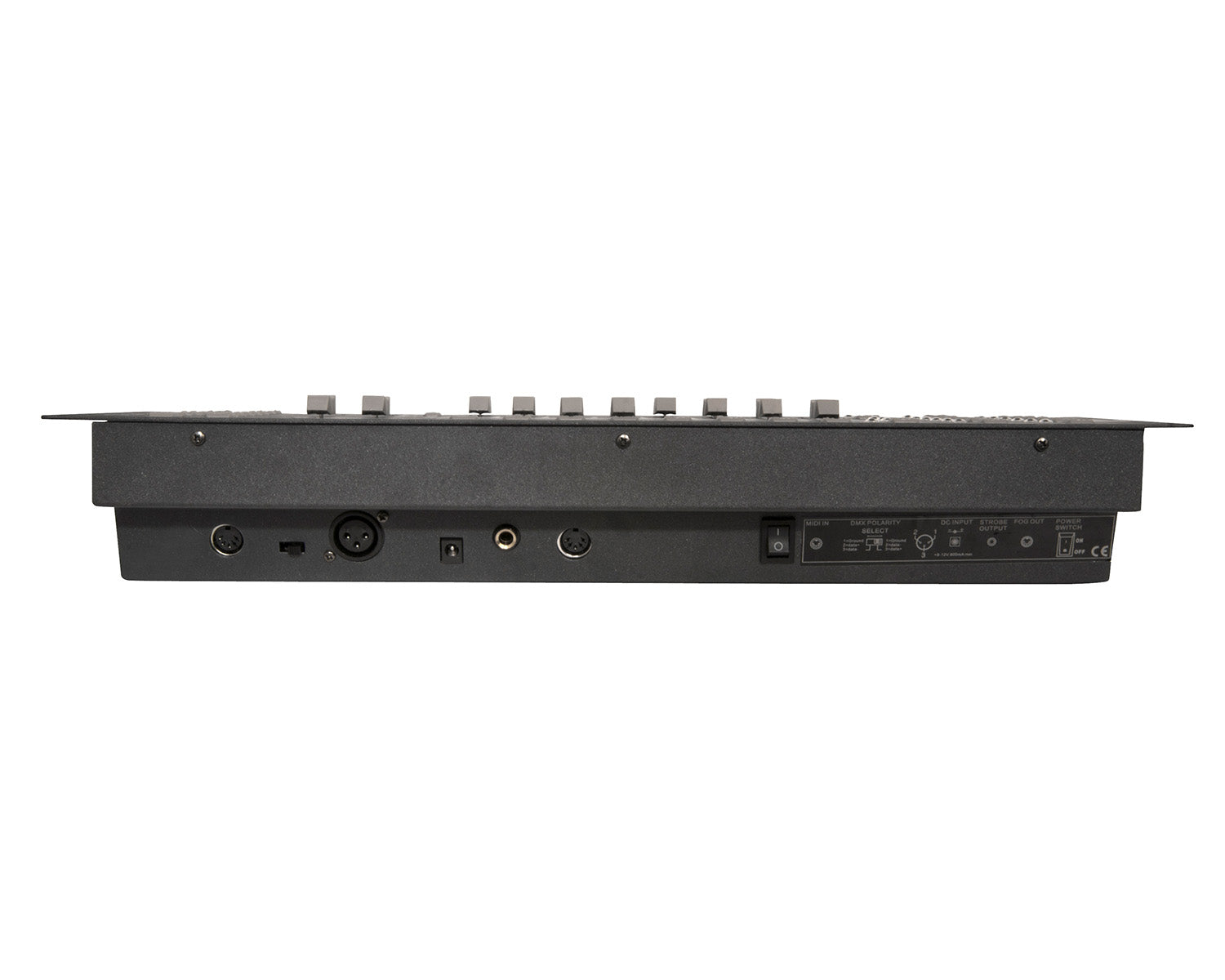

CHAUVET DJ Obey 40 DMX Controller 192-Channels / 12 16-Channel 3U - Image 2
Price:
RRP: £150.00 inc VAT
Code:
CHAO40
Manufacturer Code:
OBEY40
Brand:
CHAUVET DJ

Quantity required:

Main Features

  • Grab any fixture on the fly
  • Reversible sliders.Re assignable channels
  • Sequential linking of chases.DMX polarity selector
  • Beat activation and auto run.Three U rack mount
  • Program fade and speed time into each step
  • Six sets of chases containing 240 scenes
Share:

Obey 40 DMX Controller

The Obey 40 is the next step up from the Obey 10, allowing for control of up to 12 fixtures at 16 channels each. With a slightly larger size comes a larger capacity:  the Obey 40 has 30 banks on 8 scenes, or up to 240 scenes. The Obey 40 offers the flexibility of its little brother but also adds fog and strobe control and MIDI compatibility.

Product Features

  • Universal DMX controller capable of handling all the complexities of today's lighting fixtures
  • Easily control up to 12 intelligent lights with up to 16 channels each
  • Includes 192 channels of DMX control and 30 banks of 8 scenes for a maximum of 240 scenes
  • Enhance light shows with 6 sets of chase effects containing 240 scenes
  • Increase effects with fog and strobe control, reversible sliders, beat activation, tap-sync and auto run
  • Capability to grab any fixture on the fly, reassign channels and sequentially link chases
  • Increase flexibility with MIDI compatibility and DMX polarity selector
  • Conveniently mounts using the 3-space (3U) mounting rack

Product Specifications

General

  • DMX Channels:  192
  • DMX Connectors:  3-pin XLR
  • Rackmount:  3U
  • Input Voltage:  9 VDC, 500 mA (external power supply:  100 to 240 VAC, 50/60 Hz)

Physical & Dimensions

  • Weight:  2.6 kg
  • Size:  483 x 89 x 171 mm
  • Approvals:  CE

What’s in the Box?

  • Obey 40
  • External power supply
  • Quick Reference Guide
  • Warranty card
