Chauvet Professional Ovation F415FC Fresnel Zoom Full Colour Mix

« return to previous page

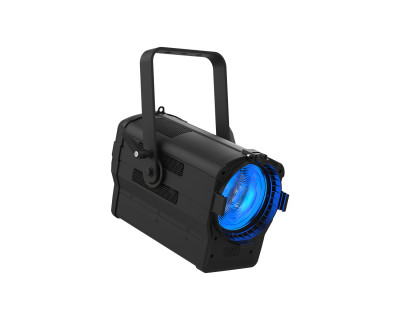

Chauvet Professional Ovation F-415FC LED Fresnel RGBAL Motorised Zoom 14–68° - Main Image

Chauvet Professional Ovation F-415FC LED Fresnel RGBAL Motorised Zoom 14–68° - Image 1

Chauvet Professional Ovation F-415FC LED Fresnel RGBAL Motorised Zoom 14–68° - Image 2

Chauvet Professional Ovation F-415FC LED Fresnel RGBAL Motorised Zoom 14–68° - Image 3

Chauvet Professional Ovation F-415FC LED Fresnel RGBAL Motorised Zoom 14–68° - Image 4

Price:: RRP: £1,578.00 inc VAT
Code:: CHAF415FC
Manufacturer Code:: OVATIONF415FC
Brand:: Chauvet Professional

Main Features

Full Color LED (RGBAL) Fresnel lighting fixture for theatre, film and production
Soft and even field of light
Beautiful 16-bit dimming of master dimmer and individual colors
Easy to use on board control of color, zoom and dimming
Virtual Color wheel with color matched to popular gel colors
Color Temperature Presets from 2800 K to 6500 K

Chauvet Professional Ovation F415FC Fresnel Zoom Full Colour Mix RGBAL LED

Ovation F-415FC is a 6” Fresnel style fixture that features our advanced RGBAL LED system. The unit projects a bright, beautifully soft field of light from subtle pastels to punchy saturates, and nearly any temperature of white. A motorized zoom with a 27° – 68° field angle allows you to add light where it is needed. Control of the virtual color wheel, zoom and output can be via DMX or on-board dials. It’s also RDM-enabled to ease installation and offers adjustable PWM for flicker-free use on camera.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

Full Color LED (RGBAL) Fresnel lighting fixture for theatre, film and production
Soft and even field of light
Smooth, motorized zoom from 27° to 68°
Beautiful 16-bit dimming of master dimmer and individual colors
Easy to use on board control of color, zoom and dimming
Virtual Color wheel with color matched to popular gel colors
Color Temperature Presets from 2800 K to 6500 K
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Virtually silent operation for use in studio and theatre applications

Product Specifications

General

OPTICAL
- Light Source: 46 LEDs (10 red, 10 green, 6 blue, 8 amber, 12 lime) 3 to 5 W, (1 A), 50,000 hours life expectancy.
- Color Temperature (range): 2800 to 6500 K
- CRI (3200 K): 91
- Beam Angle: 14° to 43°
- Field Angle: 27° to 68°
- Zoom Angle: 27° to 68°
- Lumens (27°): 1,877 (68°): 2,815
- Illuminance (27°): 915 lux @ 5 m (68°): 190 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
DYNAMIC EFFECTS
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 27 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
CONNECTIONS
- Power Connection: Edison (Local) plug to Neutrik powerCON
- Power Input: Neutrik® powerCON®
- Power Output: Neutrik® powerCON®
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
CONTROL
- Control Protocol: DMX, RDM
- DMX Channels: 3, 5, 7, 11, 13, 14 or 17
- Modes/Personalities: 8 personalities (3, 5, 7, 11, 13, 14, 17, HSV)
ELECTRICAL
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 13 units @ 120 V; 22 units @ 208 V; 24 units @ 230 V
- Power and Current: 124 W, 1.027 A @ 120 V, 60 Hz
- Power and Current: 124 W, 0.608 A @ 208 V, 60 Hz
- Power and Current: 126 W, 0.546 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
- CE, MET
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
