PC-1860BS 12cm/5 " Ceiling Speaker 6W/100V White EN54

« return to previous page

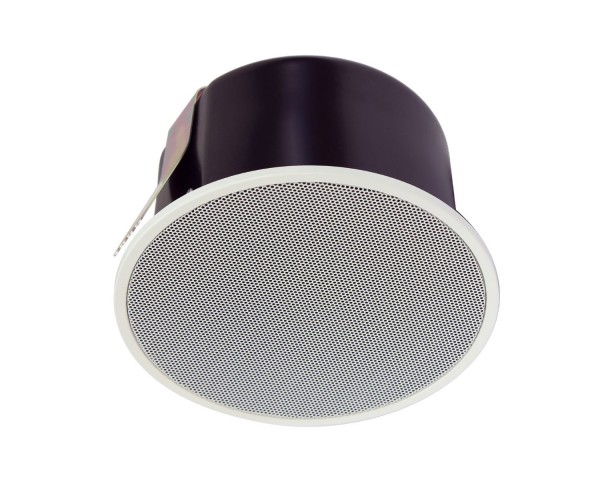

TOA PC-1860BS 12cm/5  Ceiling Speaker 6W/100V White EN54 - Main Image
TOA PC-1860BS 12cm/5  Ceiling Speaker 6W/100V White EN54 - Image 1
TOA PC-1860BS 12cm/5  Ceiling Speaker 6W/100V White EN54 - Image 2
Price:
RRP: £39.60 inc VAT
Code:
TOAPC1860BS
Manufacturer Code:
PC-1860BS
Brand:
TOA

Quantity required:

Main Features

  • Flat front panel
  • Quick and easy installation
  • Fire dome made of steel
  • Ceramic screw terminal block and thermal fuse
  • 6 W rated input
  • 12 cm speaker
Share:

PC1860BS 12cm/5 " Ceiling Speaker 6W/100V EN54 - White

The PC-1860BS is equipped with a fire dome to protect it from fire and to prevent fire from spreading through the ceiling. Thus, the speaker is designed according to British Standard BS 5839-8: 2008 and EN54-24.

Product Features

  • Flat front panel
  • Quick and easy installation
  • Fire dome made of steel
  • Ceramic screw terminal block and thermal fuse
  • 6 W rated input
  • 12 cm speaker

Applications

  • Educational facilities
  • Hospitals / Health Care
  • Hotels
  • Public Buildings
  • Retail stores
  • Shopping centers

Product Specifications

General

  • Frequency response:  170 Hz - 20 kHz (peak -20 dB)
  • Connection:  2-Steatite connector (3 pole)
  • Sensitivity:  (1 W, 1 m) 95 dB (500 Hz - 5 kHz, pink noise)
  • Speaker component:  12 cm cone-type
  • Rated input (High Impedance):  6 W (100 V), 3 W (70 V)
  • Tappings
    • 100 V: 1.7 kΩ (6 W) / 3.3 kΩ (3 W) / 6.7 kΩ (1.5 W) / 13 kΩ (0.8 W)
    • 70 V: 1.7 kΩ (3 W) / 3.3 kΩ (1.5 W) / 6.7 kΩ (0.8 W) / 13 kΩ (0.4 W)

Physical

  • Mounting hole:  156 mm
  • Dimensions (ø x D) 180 x 105 mm
  • Finish:  Steel plate, paint, traffic white (RAL 9016 or equivalent)
  • Grille:  Steel net, paint, white (RAL 9016 or equivalent)
  • Operating temperature:  -10 °C to +50 °C
