PE-604WU 5" Pendant Speaker 60W 100V White

« return to previous page
TOA PE-604WU 5 Pendant Speaker 60W 100V White - Main Image
Price:
RRP: £252.00 inc VAT
Code:
TOAPE604WU
Manufacturer Code:
PE-604WU
Brand:
TOA

Quantity required:

Main Features

  • Stylish design inspired by modern lighting fixtures
  • Ideally suited for BGM & announcements
  • 8 Ω and 25 V/70 V/100 V operation
  • Input impedance is easily changed with a rotary switch on the top of the speaker
  • With speaker cable, GRIPPLE® hanging wire & safety wire pre-attached, for faster, easier and more secure installation
  • UL certified: UL Code: UL1480 UUMW, ULC-S541
Share:

PE-604WU 5" Pendant Speaker 60W 100V White

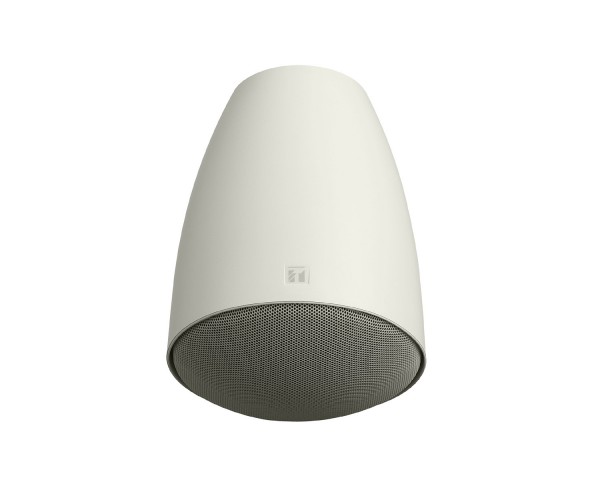

These pendant speakers are HIPS resin bass-reflex enclosure with a 12 cm (5“) cone-type woofer and a balanced-dome tweeter. They are intended to be installed suspended from a ceiling – they are very lightweight, with a stylish design inspired by modern lighting fixtures, allowing them to harmoniously blend in with a room design.

Product Features

  • Stylish design inspired by modern lighting fixtures
  • Ideally suited for BGM & announcements
  • 8 Ω and 25 V/70 V/100 V operation
  • Input impedance is easily changed with a rotary switch on the top of the speaker
  • With speaker cable, GRIPPLE® hanging wire & safety wire pre-attached, for faster, easier and more secure installation
  • UL certified: UL Code: UL1480 UUMW, ULC-S541
  • Bass-reflex type

Product Specifications

  • Frequency response:  110 Hz - 20 kHz (-10 dB from sensitivity)
  • Sensitivity (1 W, 1 m):  90 dB (330 Hz – 3.3 kHz, pink noise)
  • Speaker component:  12 cm cone-type + balanced-dome tweeter (coaxial)
  • Rated input (High Impedance):  60 W
  • Tappings:  100V line: 170Ω (60W), 330Ω (30W), 670Ω (15W), 3.3kΩ (3W)
  • Rated impedance: 8Ω
  • Finish:  HIPS resin, off-white (RAL 9010 or equivalent)
  • Dimensions:  186 x 275 mm (Ø x H)
  • Weight:  2.9 kg

What’s in the Box?

  • 1x GRIPPLE® No. 1
  • 1x GRIPPLE® No. 2
  • 1x Release key (for GRIPPLE®)
  • 1x Safety wire (ø 1.5 mm (ø 0.06”)
  • 1x Hanging wire (ø 2 mm (ø 0.08 ”)
  • 1x Speaker Cable (4-core FPL listed cable 4.6 m (15.09ft)
