PM-1 Single Push to Talk Paging Mic with Hardwired Connector

« return to previous page

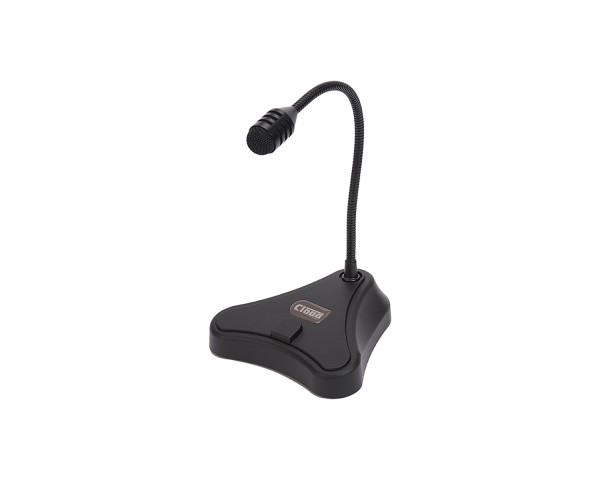

Cloud PM-1 Single Push to Talk Paging Mic with Hardwired Connector - Main Image
Cloud PM-1 Single Push to Talk Paging Mic with Hardwired Connector - Image 1
Cloud PM-1 Single Push to Talk Paging Mic with Hardwired Connector - Image 2
Price:
RRP: £114.00 inc VAT
Code:
CLOPM1
Manufacturer Code:
PM1EK
Brand:
Cloud

Quantity required:

Main Features

  • Passive paging microphone for simple, single zone applications
  • Suitable for Cloud and any other brand compatible product
  • High quality dynamic mic mounted on 300mm gooseneck
  • Solid, heavy non-slip base
  • Integral PTT switch
  • Supplied with windshield
Share:

PM1 - Single Zone Paging Microphone

The Cloud PM1 is a passive paging microphone for simple, single zone applications. It is ideal for use with any Cloud zoner and mixer-amplifier where single zone paging is required, but may also be used with any 3rd party zoners etc. Its heavy-duty moulded base and 300mm gooseneck mic give it a modern, attractive appearance, yet it is extremely robust for everyday use (ideal for use behind bars in restaurants and other licensed premises).

Connections are provided for wiring the mic audio signal and access contacts. The PTT button unmutes the mic and provides contacts (NO or NC) for the host device's access connector.

Product Features

  • Single zone paging microphone
  • High quality dynamic mic mounted on 300mm gooseneck
  • Supplied with windshield
  • Solid, heavy non-slip base
  • Integral PTT switch
  • NO or NC contacts for external mic access on host zoner/amplifier
  • Mic muted when not in use
  • Internal cable connections with retention strap

Product Specifications

Microphone

  • Type Dynamic, Cardioid
  • Frequency Response 80 Hz – 15 kHz
  • Sensitivity -54 dB ±3 dB (0 dB = 1 V/Pa at 1 KHz)

PTT Switch

  • Type Momentary
  • Contacts NO and NC

Connections

  • Audio Balanced, 3.5 mm-pitch screw terminals
  • Control NO/NC, 3.5 mm-pitch screw terminals
  • Cable Access At rear, 9 mm max. dia., internal retention

Physical

  • Base dimensions (W x D x H) 150 x 150 x 43 mm
  • Gooseneck length (inc capsule) 312 mm
  • Weight 430 g
