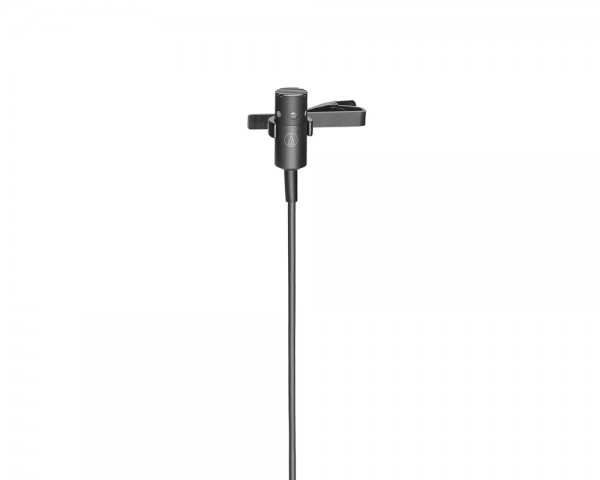

PRO70 Cardioid Lavalier / Instrument Mic with Power Module

« return to previous page
Audio Technica PRO70 Cardioid Lavalier / Instrument Mic with Power Module - Main Image
Audio Technica PRO70 Cardioid Lavalier / Instrument Mic with Power Module - Image 1
Audio Technica PRO70 Cardioid Lavalier / Instrument Mic with Power Module - Image 2
Audio Technica PRO70 Cardioid Lavalier / Instrument Mic with Power Module - Image 3
Audio Technica PRO70 Cardioid Lavalier / Instrument Mic with Power Module - Image 4
Audio Technica PRO70 Cardioid Lavalier / Instrument Mic with Power Module - Image 5
Price:
RRP: £129.00 inc VAT
Code:
AUDPRO70
Manufacturer Code:
PRO70
Brand:
Audio Technica

Quantity required:

Main Features

  • Miniature condenser microphone is ideal for both vocal and acoustic guitar applications
  • Natural and articulate vocal reproduction when used as a clipon lavalier

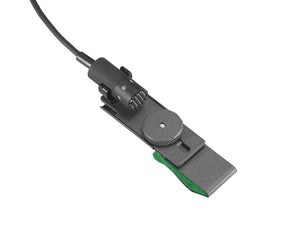

  • Excels in pickup of acoustic guitar with included instrument adapter
  • Switchable low frequency roll off
  • Corrosion-resistant contacts from gold-plated XLRM-type connector
  • Operates on battery or phantom power
Share:

PRO70 Cardioid Lavalier / Instrument Mic with Power Module

This miniature condenser microphone achieves full sounding pickup and is known for outstanding consistency and dependable performance. Supplied with both a clothing clip and guitar mount, it provides natural and articulate vocal reproduction when used as a clip on lavalier and excels in pickup of acoustic guitar. The PRO70 is designed to make music and speech clearly and comfortably audible, yet never draw attention to itself or its operation. The microphone is equipped with a low frequency roll off switch that allows for reduced pickup of room noise. The versatile mic may be powered by either battery or phantom power. Its cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source.

Product Features

  • Miniature condenser microphone is ideal for both vocal and acoustic guitar applications
  • Natural and articulate vocal reproduction when used as a clipon lavalier
  • Excels in pickup of acoustic guitar with included instrument adapter
  • Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
  • Switchable low frequency roll off
  • Corrosion-resistant contacts from gold-plated XLRM-type connector
  • Operates on battery or phantom power
  • 6' (1.8 m) cable permanently attached between microphone and power module

Product Specifications

General

  • Element: Fixed charge back plate, permanently polarized condenser
  • Polar Pattern: Cardioid
  • Frequency Response: 100-14,000 Hz
  • Low Frequency Roll Off: 80 Hz, 8 dB/octave
  • Open Circuit Sensitivity: Phantom: -45 dB (5.6 mV) re 1V at 1 Pa Battery: -45 dB (5.6 mV) re 1V at 1 Pa
  • Impedance: Phantom: 200 ohms Battery: 200 ohms
  • Maximum Input Sound Level: Phantom: 123 dB SPL, 1 kHz at 1% T.H.D. Battery: 123 dB SPL, 1 kHz at 1% T.H.D.
  • Dynamic Range: Phantom: 96 dB, 1 kHz at Max SPL Battery: 96 dB, 1 kHz at Max SPL
  • Signal to Noise Ratio: 67 dB, 1 kHz at 1 Pa
  • Phantom Power Requiremens: 11-52V DC, 2 mA typical
  • Battery Type: 1.5V AA/UM3
  • Battery Current Life: 0.4 mA / 1200 hours typical (alkaline)
  • Switch: Off, on-flat, on-roll-off
  • Output Connector: Integral 3-pin XLRM-type
  • Cable: Integral 6' (1.8 m), permanently attached between microphone and power module

Physical & Dimensions

  • Microphone
    • Length: 25mm
    • Diameter: 10.2mm
    • Weight: 8g

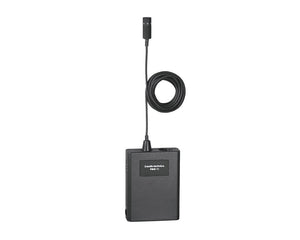

  • Power Module
    • Height: 83mm
    • Width: 63mm
    • Depth: 22mm
    • Weight: 134g

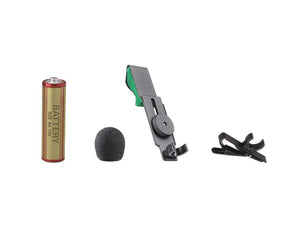

What's in the Box?

  • PRO70 Cardioid Lavalier / Instrument Mic
  • AT8411 clothing clip
  • AT8444 instrument adapter
  • Power module
  • Windscreen
  • Battery

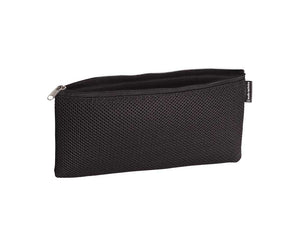

  • Soft protective pouch
