PRX425 2x15" 2-Way Passive Loudspeaker 600W

« return to previous page

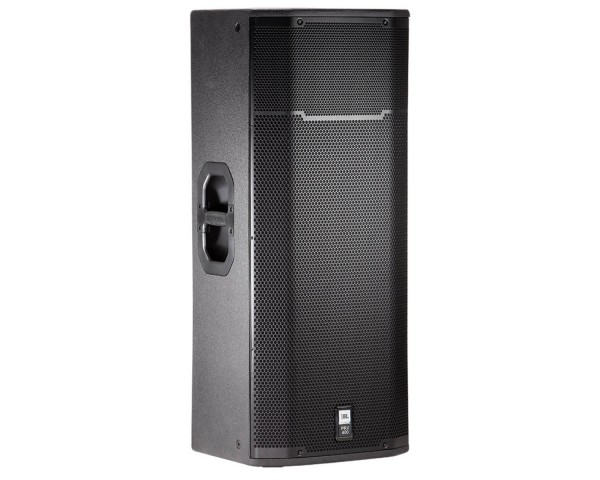

JBL PRX425 2x15 2-Way Passive Loudspeaker 600W - Main Image
JBL PRX425 2x15 2-Way Passive Loudspeaker 600W - Image 1
JBL PRX425 2x15 2-Way Passive Loudspeaker 600W - Image 2
JBL PRX425 2x15 2-Way Passive Loudspeaker 600W - Image 3
Price:
RRP: £1,512.00 inc VAT
Code:
JBLPRX425
Manufacturer Code:
JBL1180
Brand:
JBL

Quantity required:

Main Features

  • Dual 15" two-way design
  • 90° x 50° coverage
  • Heavy Duty 16 gauge protective screen backed steel grille
  • Excellent choice when the application calls for high performance and simplicity
  • Reinforcing bass and kick drum for playing high-level music in clubs and other venues
  • Constructed of birch/poplar multi-laminate hardwood and coated in JBL
Share:

PRX425 2x15" 2-Way Passive Loudspeaker

The PRX425 is an excellent choice when the application calls for high performance and simplicity. A pair of PRX425s and a single, high-power amplifier is a complete sound system capable of reinforcing bass and kick drum or playing high-level music in clubs and other venues.

The PRX425 is comprised of two 380 mm (15 in) woofers with combined power handling of 600 watts (continuous). For the high frequencies, 2414H-C 25 mm (1 in) polymer diaphragm, compression driver is mounted to a 90° x 50° horn. The 90° coverage angle of the PRX425 is wide enough to provide coverage of an audience when used one-per-side yet narrow enough to allow splaying of multiple enclosures without excessive coverage overlap.

The enclosure is constructed of birch/poplar multi-laminate hardwood and coated in JBL’s rugged DuraFlex™ finish. The distinctive 16-gauge steel grille is CNC-machined for precision. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance.

Product Features

  • Dual 15" two-way design
  • 90° x 50° coverage
  • Heavy Duty 16 gauge protective screen backed steel grille
  • Tough DuraFlex™ enclosure finish
  • SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.

Product Specifications

General

  • Frequency Range (-10 dB): 48 Hz – 19 kHz
  • Frequency Response (+3 dB): 61 Hz – 16 kHz
  • Coverage Pattern: 90° x 50° nominal
  • System Sensitivity: 100 dB SPL (1w@1m)
  • Power Rating, Pink Noise: 600 W / 1200 W / 2400 W (Continuous/Program/Peak)
  • Rated Maximum SPL: 134 dB SPL peak
  • Nominal Impedance: 4 ohms

Physical & Dimensions

  • Height: 1044mm
  • Width: 429mm
  • Depth: 521mm
  • Weight: 33.5kg
