Price:
RRP: £751.15 inc VAT
Code:
MACSHOWBOX
Manufacturer Code:
2055123-03
Brand:
Mackie

Quantity required:

Main Features

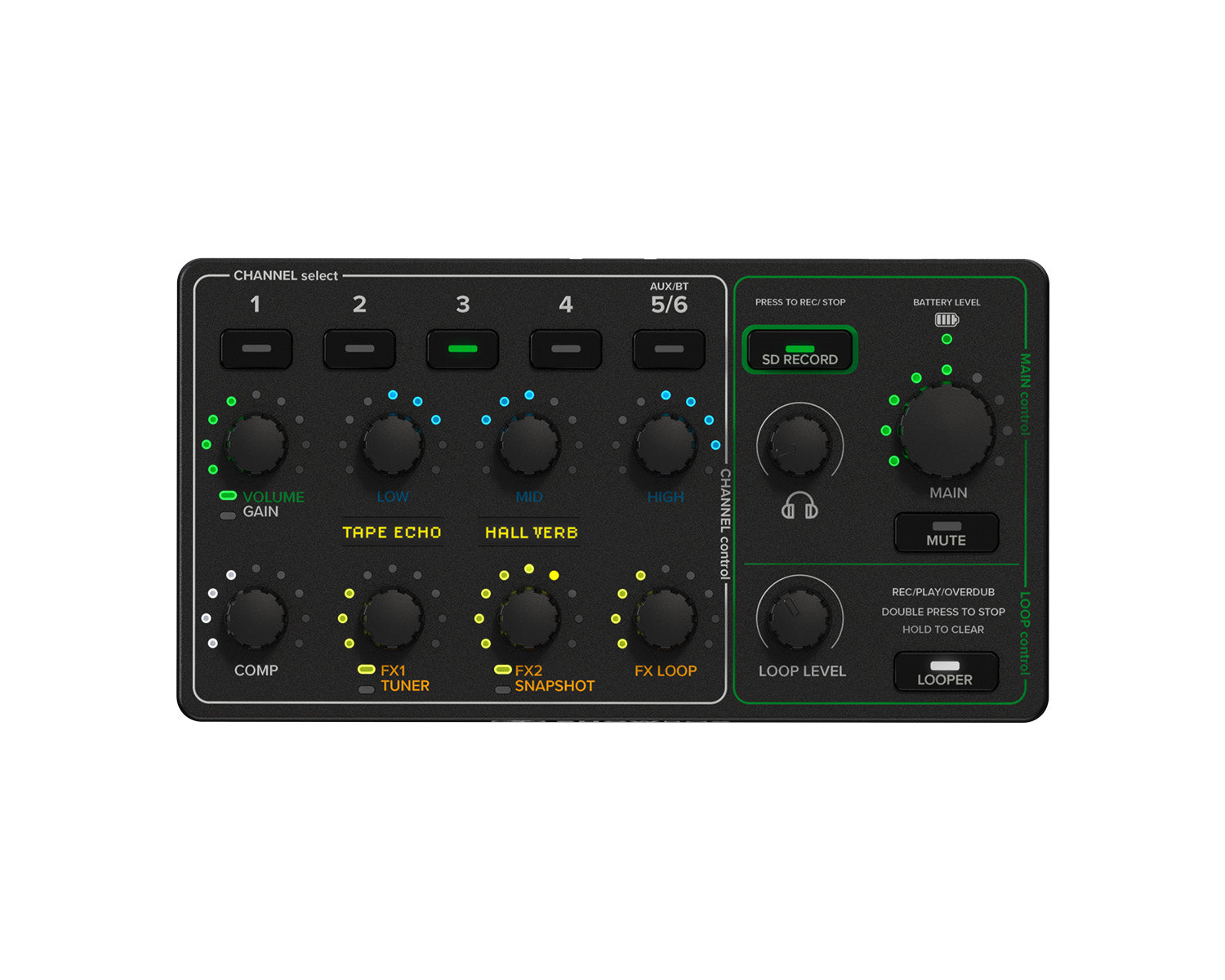

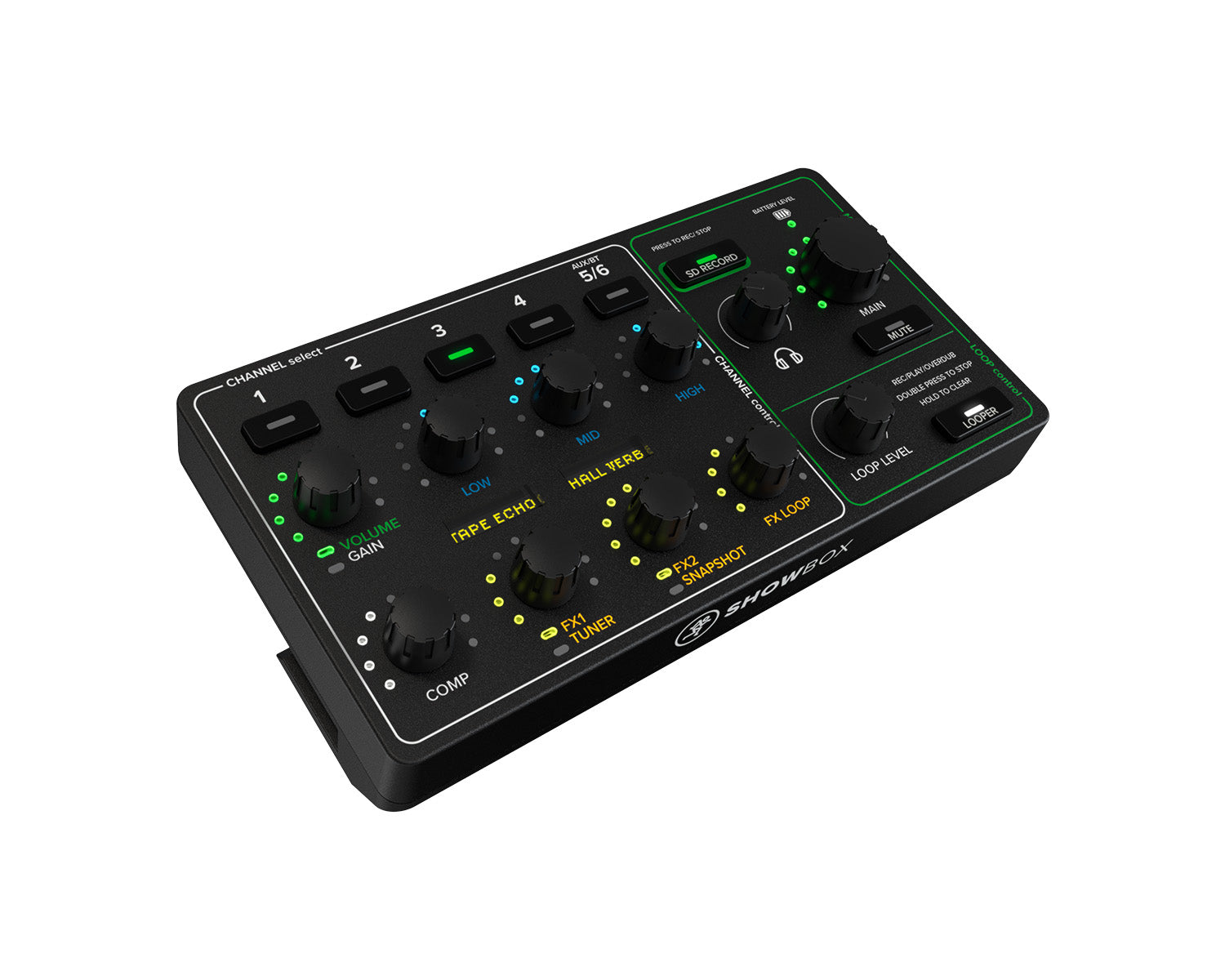

  • Breakaway Mix Control
  • Inputs for Mics, Guitars, Keys and More
  • 6 FX Engines (2 FX per channel)
  • Stream/Record via USB-C and MicroSD
  • Voicing Modes: Amp/PA, Indoor/Outdoor
  • Built-in Looper and Tuner
Share:

Showbox 8" Battery-Powered Loudspeaker with 6-Ch Mixer / Controller

Set up in seconds with Mackie ShowBox, the battery-powered all-in-one performance rig that makes it easy to get great live sound anywhere.

ShowBox offers all the audio inputs for solo gigs and small bands, replacing instrument amps and PA speakers and adding effects you can tweak from your mic stand with the breakaway controller. You can even take your performance online with a USB-C interface for streaming and recording, while playing over backing tracks via Bluetooth®.

With essential performance features and plenty more to discover, Mackie ShowBox lets you carry your whole rig in one trip from the car.

Product Features

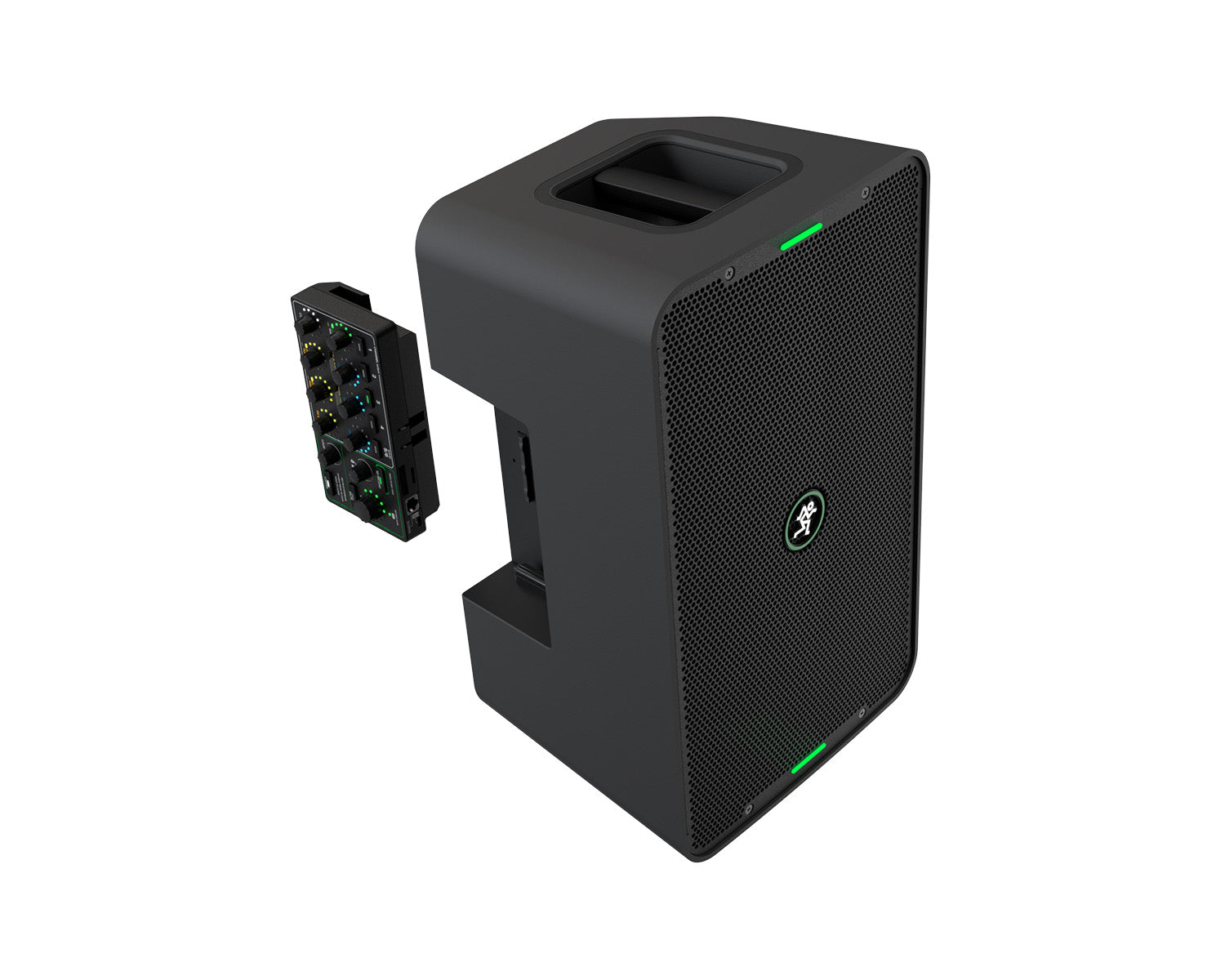

  • Breakaway Mix Control
  • Inputs for Mics, Guitars, Keys and More
  • 6 FX Engines (2 FX per channel)
  • Stream/Record via USB-C and MicroSD
  • Voicing Modes: Amp/PA, Indoor/Outdoor
  • Built-in Looper and Tuner
  • Bluetooth® Streaming
  • Passthrough USB Charging (for mobile devices)
  • Up to 12 Hours of Playtime with Included Battery

Product Specifications

Acoustic Performance

  • Frequency Range (–10 dB):  48 Hz – 20 kHz
  • Frequency Range (–3 dB):  55 Hz – 20 kHz
  • Horizontal Coverage:  90˚
  • Vertical Coverage:  60˚
  • Maximum SPL Peak:  122 dB
  • Monitor Angle:  45˚

Transducers

  • Low Frequency:  8.0" / 203 mm woofer with ferrite
  • High Frequency:  1.0" / 25 mm titanium high frequency driver

Power Amplifiers

  • System Power Amplification
  • Rated Power:  400 watts peak
  • Low Frequency Power Amplifier
    • Rated Power:  350 watts peak
    • Rated THD:  <1%
    • Cooling:  Convection
    • Design:  Class D
  • High Frequency Power Amplifier
    • Rated Power:  50 watts peak
    • Rated THD:  <1%
    • Cooling:  Convection
    • Design:  Class D

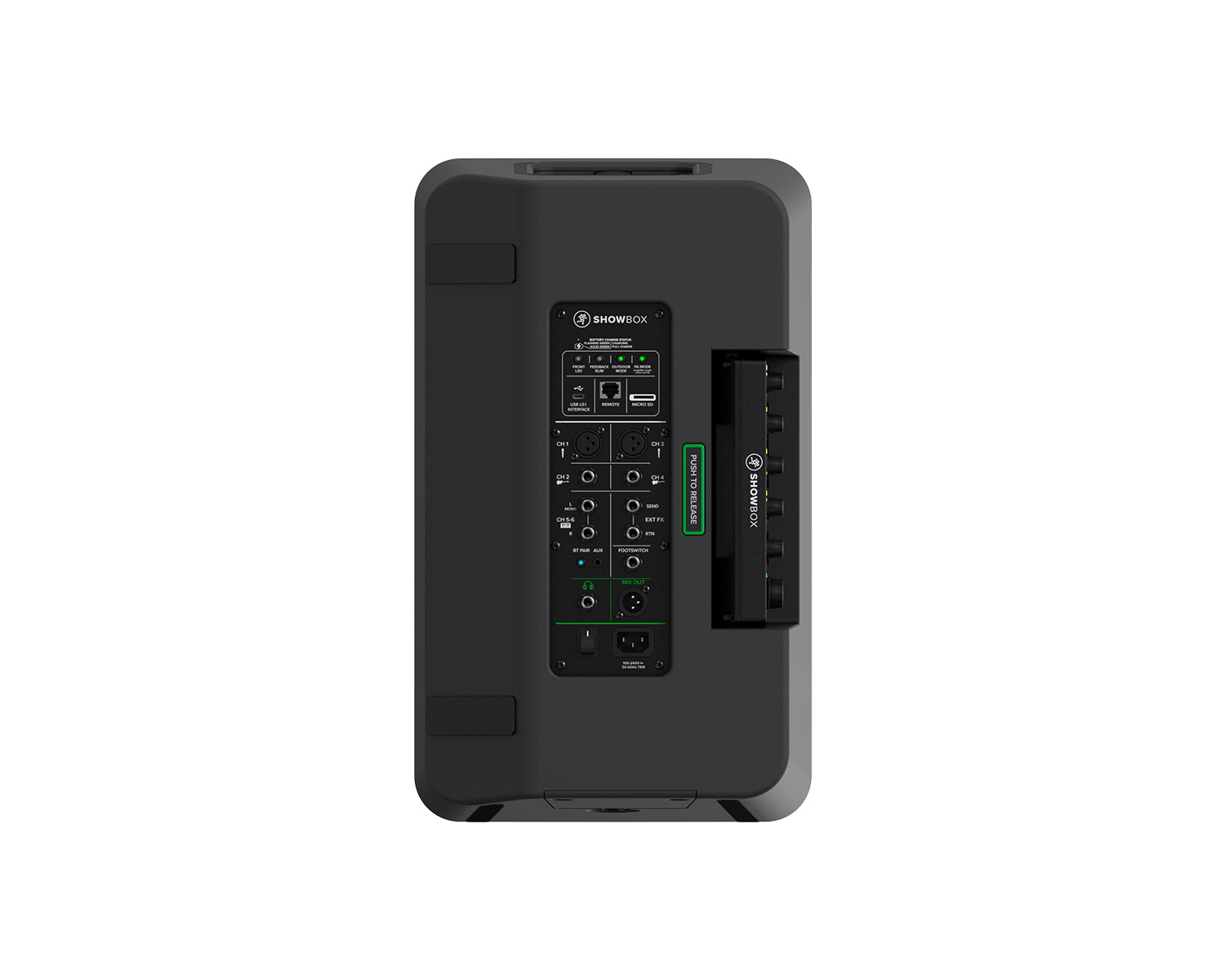

Input / Output

  • Input Type:  2x Female XLR, 4x 1/4" balanced jacks, 1/8" Aux jack, Bluetooth, USB-C
  • Mic Impedance [Channels 1 + 3]:  4 kΩ balanced
  • Instrument Impedance [Channels 2 + 4]:  1 MΩ unbalanced
  • Line Input [Channel 5/6]:  10 kΩ balanced/unbalanced
  • Output Type:  Male XLR Balanced [Mix Out], 1/4" Stereo Headphones
  • Mix Out Impedance:  300 Ω balanced
  • FX Send Impedance:  300 Ω pseudo-balanced

Bluetooth and USB Information

  • Bluetooth Protocol:  5.1
  • Bluetooth Function:  Audio Streaming
  • USB:  2x2, 3.1 ≥Gen1

Electronic Crossover

  • Crossover Type:  4th order Linkwitz-Riley set at 1.8 kHz
  • Crossover Frequency:  2.0 kHz

Equalization

  • Low:  ±15 dB @ 80 Hz
  • Mid:  ±15 dB @ 2.5 kHz
  • High:  ±15 dB @ 12 kHz

Digital Effects

  • Number of Presets (FX1):  12
  • Number of Presets (FX2):  16

Line Input Power

  • Detachable Line Cord:  100–240V~, 50–60Hz, 75W

Safety Features

  • Input Protection:  Peak and RMS limiting, power supply and amplifier thermal protection
  • Display LEDs:  Front LEDs, Feedback Eliminator, Outdoor Mode, PA Mode, Bluetooth Status, Battery Level, Breakaway Mixer (Multiple)

Battery Information

  • Battery Type:  Lithium Ion
  • Battery Life:  Up to 12 hours
  • Charge Time:
    • 3 hours (no signal),
    • 4 hours (with signal)
  • Capacity:  5200 mAh
  • Nominal Voltage:  14.8 V
  • Operating Temperature Range:  15 – 35 ˚C // 59 – 95 ˚F
  • Charging Temperature Range:  0 – 45 ˚C // 32 – 113 ˚F

Construction Features

  • Basic Design:  Asymmetrical
  • Enclosure Material:  Polypropylene
  • Enclosure Finish:  Black, textured finish
  • Grille Material:  Perforated Metal w/weather-resistant coating
  • Grille Finish:  Powder-coated black
  • Handles:  One on top

Physical Properties (product)

  • Height:  19.7 in / 500 mm
  • Width:  11.8 in / 300 mm
  • Depth:  9.8 in / 249 mm
  • Weight:  20.9 lb / 9.5 kg
