SKM500 G4-GBW Handheld Tx NO CAPSULE (MMD,MME or MMK) CH38

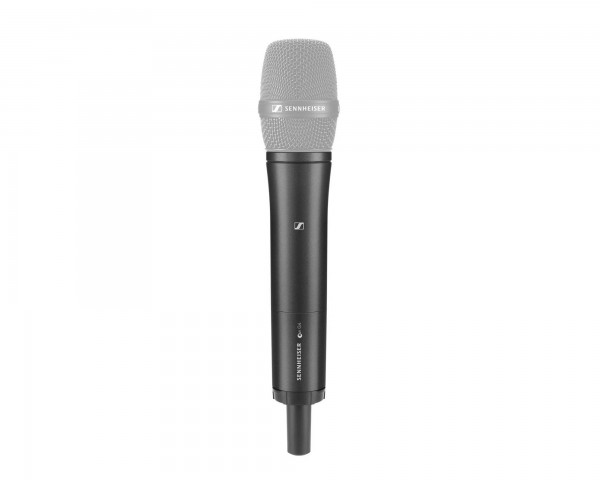

Sennheiser SKM500 G4-GBW Handheld Tx NO CAPSULE (MMD,MME or MMK) CH38 - Main Image

Price:: RRP: £502.80 inc VAT
Code:: SENSKM50038
Manufacturer Code:: 509979 / 507783
Brand:: Sennheiser

Main Features

SKM500 G4 Handheld Transmitter
Easy and flexible wireless synchronization
Up to 32 compatible channels
Up to 88 MHz bandwidth with 3520 selectable frequencies
Ethernet connection for Wireless Systems Manager
High RF output power

SKM500 G4-GB Handheld Transmitter Excl Mic Capsule CH38

Powerful handheld transmitter with a lightweight black aluminum housing, increased bandwidth and transmission power, ready to take the world’s biggest live stages. For evolution wireless G4 500 Series systems.

Product Features

SKM500 G4 Handheld Transmitter
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Up to 32 compatible channels
Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

Product Specifications

General

Modulation: Wideband FM
Frequency ranges
- Aw+: 470 - 558 MHz
- AS: 520 - 558 MHz
- Gw1: 558 - 608 MHz
- Gw: 558 - 626 MHz
- GBw: 606 - 678 MHz
- Bw: 526 - 698 MHz
- Cw: 718 - 790 MHz
- Dw: 790 - 865 MHz
- JB: 806 - 810 MHz
- K+: 925 - 937.5 MHz
Transmission frequencies
- Max. 2880 frequencies, adjustable in 25 kHz steps
- 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
- 6 frequency banks with up to 32 programmable channels
Switching bandwidth: up to 72 MHz
Nominal/peak deviation: ±24 kHz / ±48 kHz
Frequency stability: ≤ ±15 ppm
RF output power at 50 Ω switchable:
Low: typ. 10 mW
Standard: typ. 30 mW
High: typ. 50 mW
Pilot tone squelch: Can be switched off
Compander system: Sennheiser HDX
AF frequency response: 80 – 18,000 Hz
Signal-to-noise ratio (1 mV, peak deviation): ≥ 115 dBA
Total harmonic distortion (THD): ≤ 0.9 %
Setting range for input sensitivity: 48 dB, adjustable in 6 dB steps
Temperature range: -10 °C to +55 °C
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Nominal voltage: 3 V battery / 2.4 V rechargeable battery
Current consumption at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA
Operating time: Typically 8 h
