• Powerful camera receiver, easily mounted on any kind of camera
• Excellent sound and construction quality
• Easy to use and fast setup time
• Powerful and reliable wireless transmission
• Range: up to 100 meters / 330 feet
• Up to 8 hours of operation time

General

• Modulation: Wideband FM
• Frequency ranges:
  • A1: 470 - 516 MHz
  • A: 516 - 558 MHz
  • AS: 520 - 558 MHz
  • G: 566 - 608 MHz
  • GB: 606 - 648 MHz
  • B: 626 - 668 MHz
  • C: 734 - 776 MHz
  • D: 780 - 822 MHz
  • E: 823 - 865 MHz
  • JB: 806 - 810 MHz
  • K+: 925 - 937.5 MHz
• Transmission frequencies
  • Max. 1680 frequencies, adjustable in 25 kHz steps
  • 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
  • 1 frequency bank with up to 12 programmable channels
• Switching: bandwidth up to 42 MHz
• Nominal/peak deviation: ±24 kHz / ±48 kHz
• Frequency stability: ≤ ±15 ppm
• RF output power at 50 Ω: Max. 30 mW
• Pilot tone squelch: Can be switched off
• Compander system: Sennheiser HDX
• AF frequency response: 80 – 18,000 Hz
• Signal-to-noise ratio (1 mV, peak deviation): ≥ 110 dBA
• Total harmonic distortion (THD): ≤ 0.9 %
• Max. input voltage: 3.3 Veff
• Input impedance: 68 kΩ, unbalanced
• Input capacitance: Switchable
• Setting range for input sensitivity: 48 dB, adjustable in 6 dB steps
• Temperature range: -10 °C to +55 °C
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Nominal voltage: 3 V battery / 2.4 V rechargeable battery
• Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA
• Operating time: Typically 8 h

Physical & Dimensions

• Height: 43mm
• Width: 105mm
• Depth: 43mm
• Weight: 195g

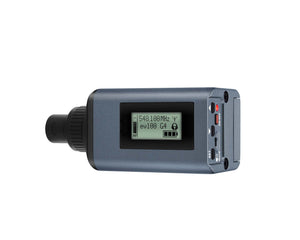

• SKP 100 G4 plug-on transmitter
• 2 AA batteries
• Quick guide
• Safety guide
• Manufacturer declaration sheet
