SRX818S 18" Passive Subwoofer 1200W

« return to previous page

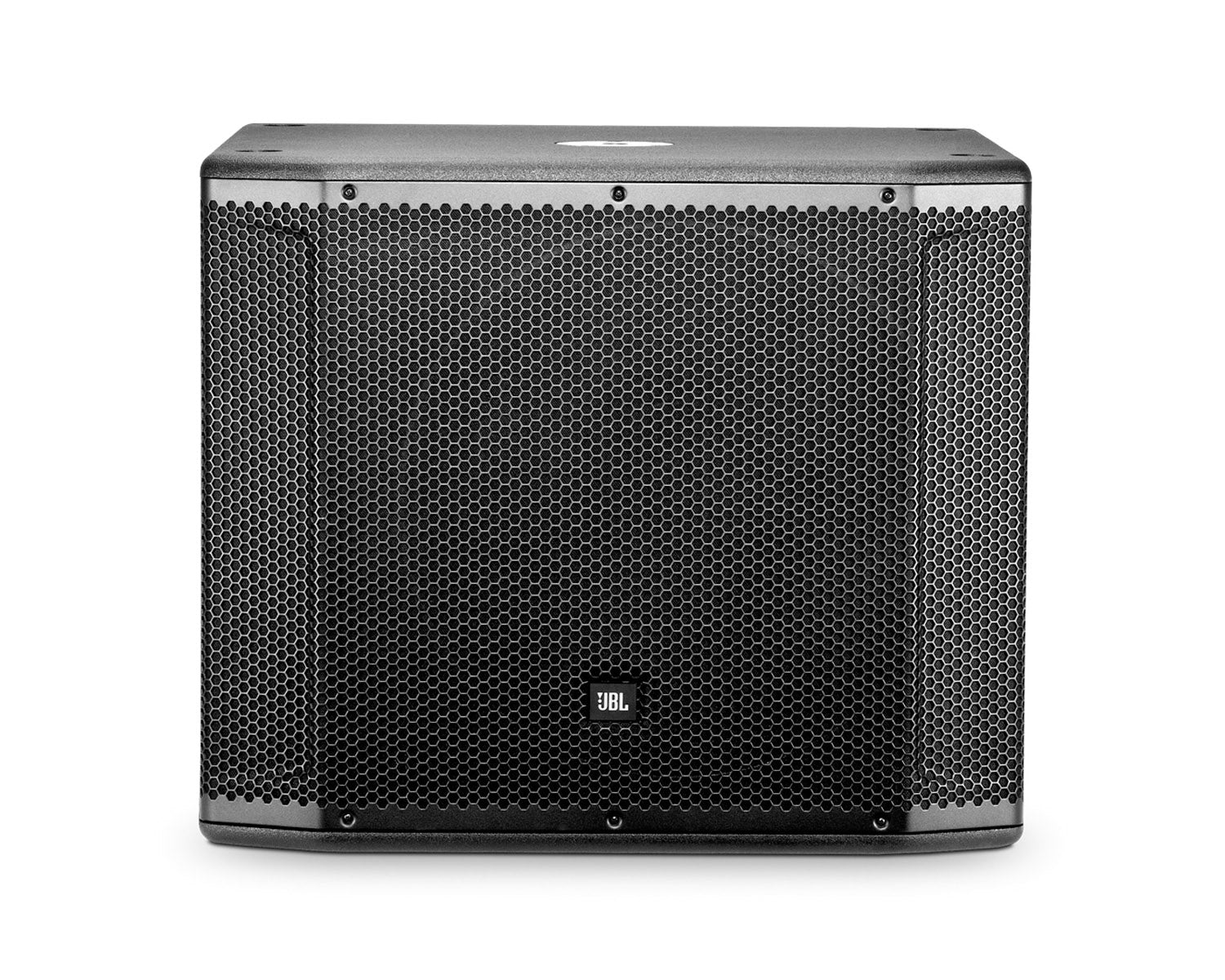

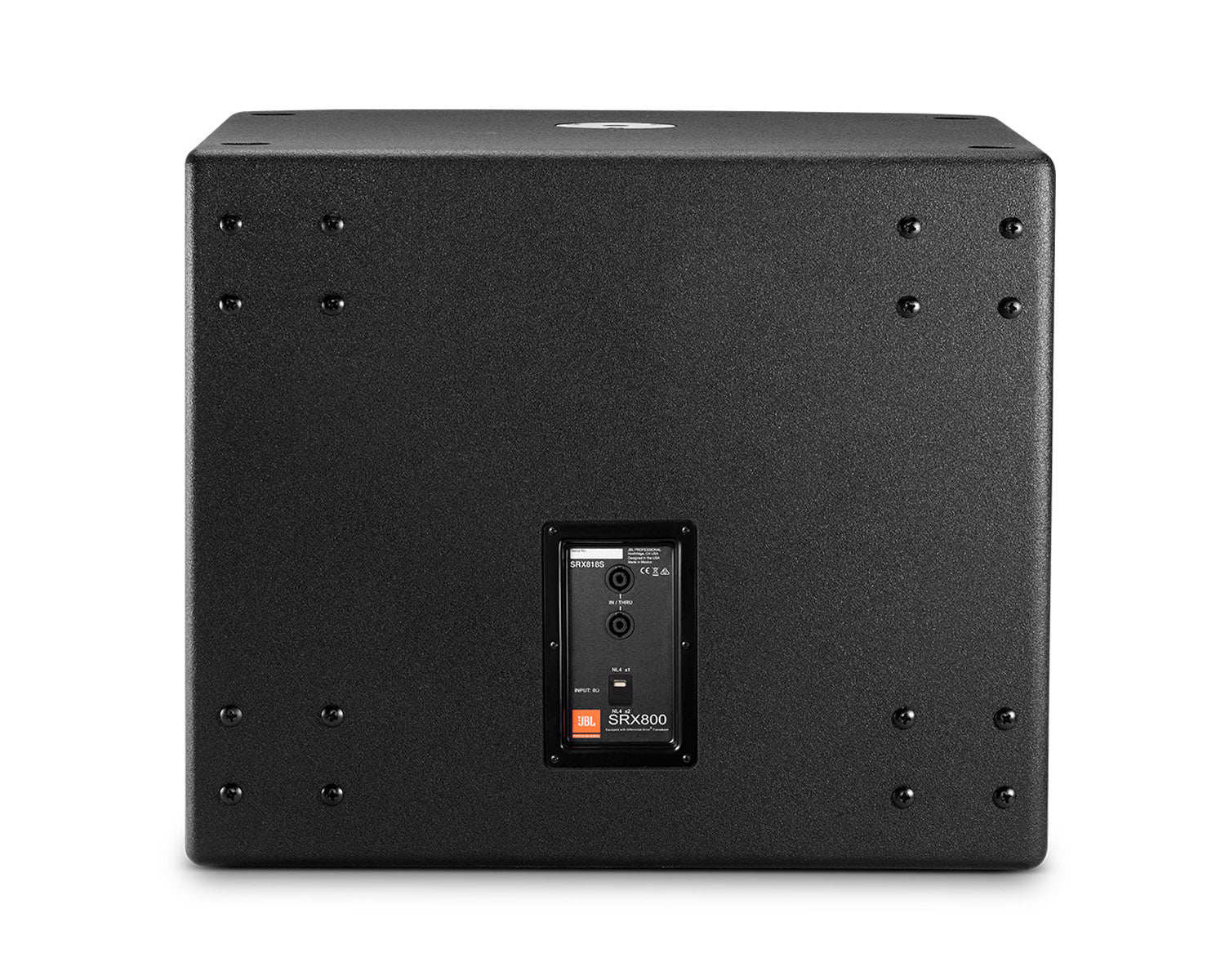

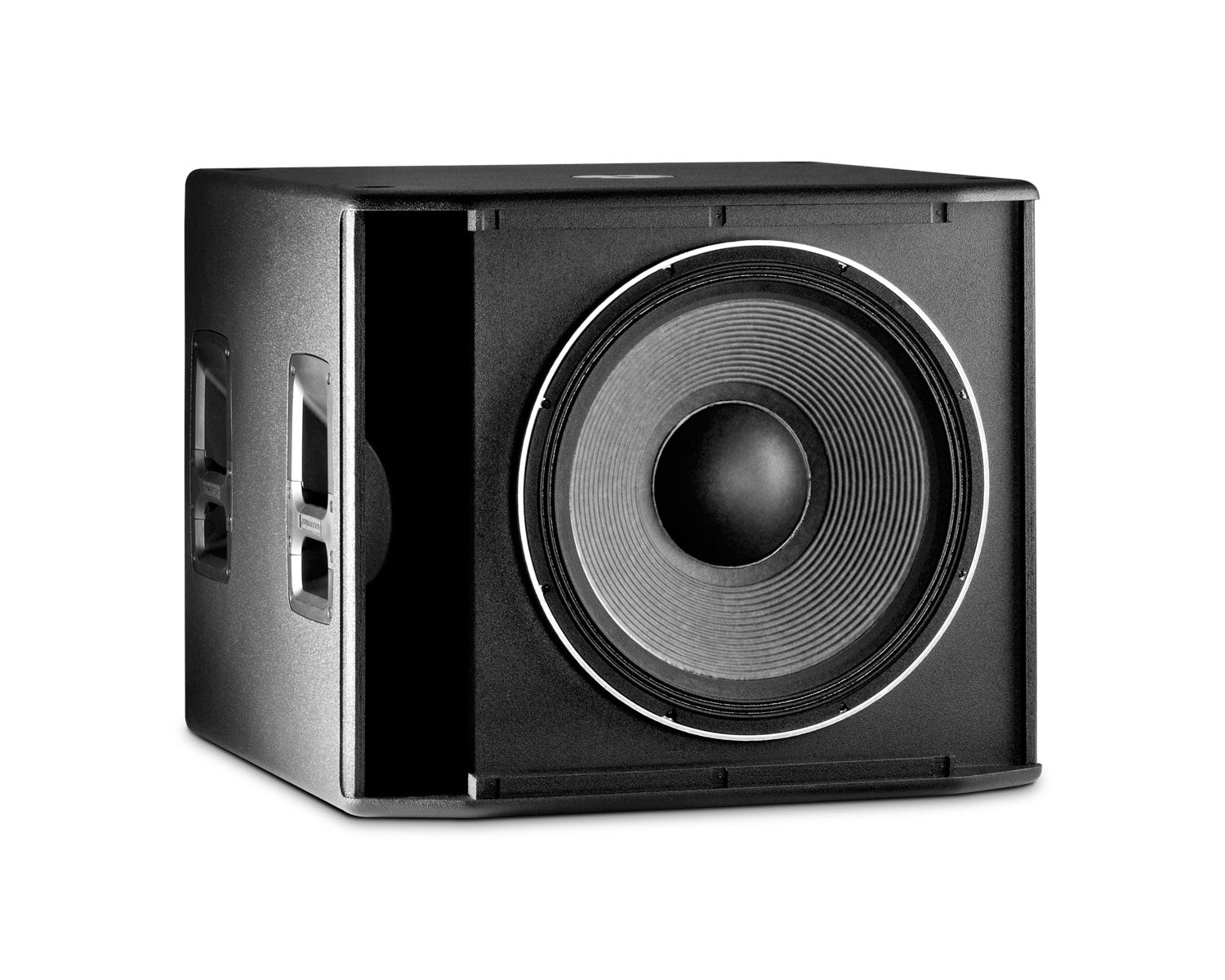

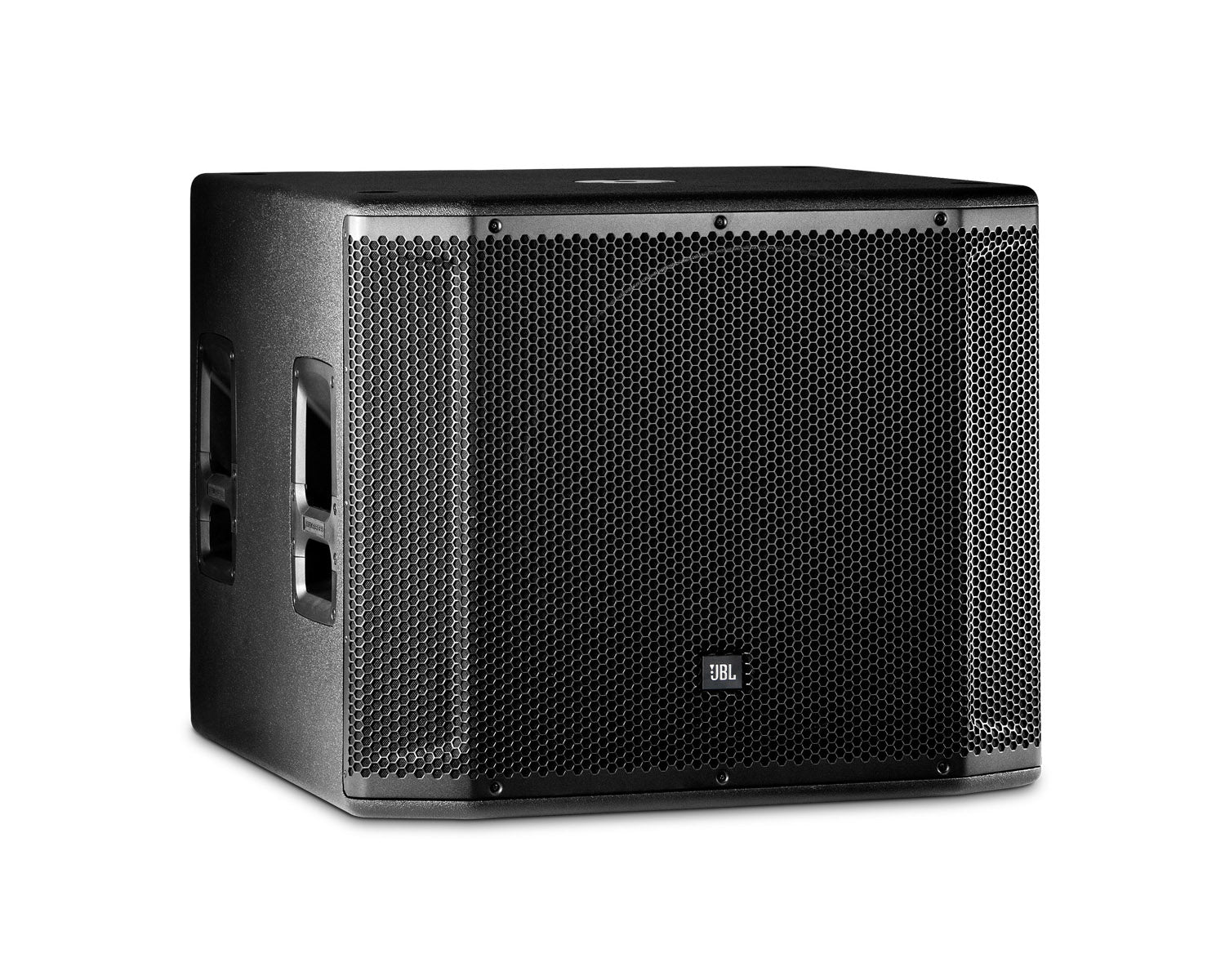

JBL SRX818S 18 Passive Subwoofer 1200W - Main Image
JBL SRX818S 18 Passive Subwoofer 1200W - Image 1
JBL SRX818S 18 Passive Subwoofer 1200W - Image 2
JBL SRX818S 18 Passive Subwoofer 1200W - Image 3
JBL SRX818S 18 Passive Subwoofer 1200W - Image 4
Price:
RRP: £1,645.00 inc VAT
Code:
JBLSRX818S
Manufacturer Code:
JBL1703
Brand:
JBL

Quantity required:

Main Features

  • Premium JBL Transducers
  • Rugged, versatile enclosures
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 2400W Peak, 1200W Program, 600W Continuous
  • Frequency Range: 28Hz-150Hz
Share:

SRX818S 18" Passive Subwoofer

SRX818S is a single 18” subwoofer for concert, touring, or installed use. Featuring a standard M20 pole cup for use with top boxes, indexing feet for stacking in both the standard and cardioid position, and a 136dB max SPL, the SRX818S is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD.

Product Features

  • Premium JBL Transducers
  • Rugged, versatile enclosures
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 2400W Peak, 1200W Program, 600W Continuous
  • Frequency Range: 28Hz-150Hz
  • Frequency Response: 45Hz-150Hz
  • Max SPL: 129dB (Peak)
  • Amplification options: Passive
  • 2279 LF 8 Ohm 18” Woofer

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.

Product Specifications

General

  • System Type:  Passive 18”, subwoofer system
  • Maximum SPL Output:  123dB (Continuous), 129dB (Peak)
  • Frequency Response (-10dB):  28hz - 150hz
  • Frequency Response (-3 dB):  45hz - 150hz
  • Sensitivity (1W, 1m):  95dB
  • System Power Rating:  2400W Peak , 1200W Program, 600W Continuous
  • Nominal Impedance:  8 Ohm
  • Inputs:  NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
  • Operational Modes:  Passive
  • LF Driver:  2279H
  • Crossover Frequency:  80hz
  • Enclosure:  18mm Duraflex coated plywood
  • Suspension/Mounting:  M20 Threaded Pole Mount
  • Casters:  Accepts JBL WK-4S Kit

Physical

  • Handles:  4
  • Finish:  Obsidian Duraflex™ finish
  • Grille:  Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
  • Dimensions (H x W x D):  683mm x 684mm x 575mm (26.89in x 26.92in x 22.62in)
  • Weight:  78.0 lbs (35.4kg)
  • Shipping Weight:  88 lbs (40.2kg)

Product Downloads
