T58781 Slimline Side Entry Clamp for 48mm/51mm Tube SILVER

« return to previous page
Clearance

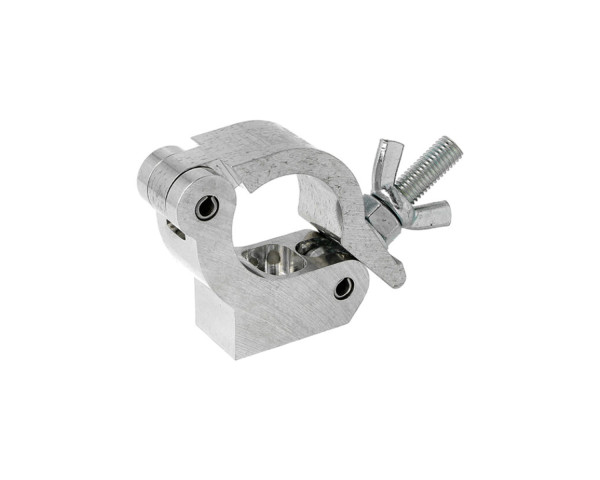

Doughty T58781 Slimline Side Entry Clamp for 48mm/51mm Tube SILVER - Main Image
Price:
RRP: £30.88 inc VAT
Code:
DOUT58781
Manufacturer Code:
T58781
Brand:
Doughty

Quantity required:

Main Features

  • Tube Diameter:  Ø48 - 51mm
  • Clamp Width:  30mm
  • WLL:  500Kg
  • Slotted to hold captive an M12 nut or bolt head
  • High tensile extruded aluminium clamp
  • Polished Silver Finish
Share:

T58781 Slimline Side Entry Clamp for 48mm/51mm Tube SILVER

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm diameter tubes. It has a WLL of 500Kg and is 30mm wide. Slotted to hold captive an M12 nut or bolt head, it is ideal for where height is at a premium and a clamp that fully encompasses the tube is required. Suitable for cross bracing and suspensions where a firm fixing is required and a claw clamp is not appropriate. Available in polished silver or powder coated black.

Product Features

  • Tube Diameter:  Ø48 - 51mm
  • Clamp Width:  30mm
  • WLL:  500Kg
  • Slotted to hold captive an M12 nut or bolt head
  • High tensile extruded aluminium clamp
  • Polished Silver Finish

Product Specifications

  • Tube Diameter:  Ø48 - 51mm
  • Materials:
    • Main Body - AW6082 T6 Aluminium
    • Roll Pins - Stainless Steel
    • Eyebolt Assy - Grade 8.8
  • Max Tightening Torque:  30Nm
  • Fixings:  M12
  • WLL:  500Kg
  • Weight:  0.36Kg
