TesiraSERVER Digital Network Server with 1xDSP-2 and 1xAVB Card

Biamp TesiraSERVER Digital Network Server with 1xDSP-2 and 1xAVB Card - Main Image

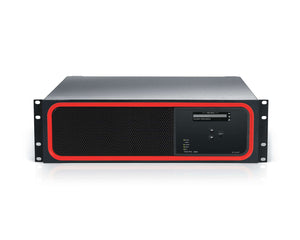

Biamp TesiraSERVER Digital Network Server with 1xDSP-2 and 1xAVB Card - Image 1

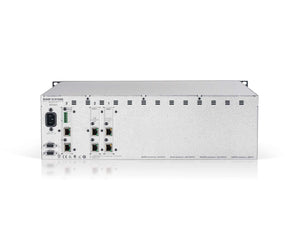

Biamp TesiraSERVER Digital Network Server with 1xDSP-2 and 1xAVB Card - Image 2

Price:: RRP: £9,681.60 inc VAT
Code:: BIATSDSPS
Manufacturer Code:: 913.0300.900
Brand:: Biamp

Main Features

Supports up to 8 DSP-2 cards
Up to 420 x 420 channels of digital I/O over AVB
Supports optional 32 x 32 CobraNet audio networking
Supports optional 64 x 64 Dante audio networking
System configuration and control via Ethernet or serial connection
Front panel OLED display for device and system information

Tesira SERVER

The Tesira SERVER is a digital network server. It is factory configured with one DSP-2 card and can accept up to a total of eight DSP-2 cards. The SERVER is also factory configured with one AVB-1 card and has a second slot that can be outfitted with an additional AVB-1 card, a 32 x 32 channel SCM-1 CobraNet card, a 64 x 64 channel DAN-1 Dante™ card, or a standard I/O card for four channels of local I/O. The SERVER is the core of a Tesira digital audio system and can be used with Tesira expanders to form a highly scalable audio network. Two Tesira SERVERs can also be designed as a redundant pair, carrying identical processing and card configurations. The secondary SERVER stays ‘live’ with the primary, updating runtime parameters. If the primary SERVER should need maintenance, the secondary takes over with no loss of continuity or downtime.

Product Features

Supports up to 8 DSP-2 cards
Up to 420 x 420 channels of digital I/O over AVB
Supports optional 32 x 32 CobraNet audio networking
Supports optional 64 x 64 Dante audio networking
System configuration and control via Ethernet or serial connection
Front panel OLED display for device and system information
SpeechSense™ and AmbientSense™ processing algorithms
Signal processing via intuitive software allows configuration and control for: signal routing and mixing, equalization, filtering, dynamics, delay and much more
Extensive input, output and logic expansion devices supported as part of the Tesira digital audio networking platform
Rack mountable (3RU)
CE marked, UL listed, and RoHS compliant
Covered by Biamp Systems’ five-year warranty

Product Specifications

General

Frequency Response (20Hz~20kHz @ +4dBu): +0/-0.25dB
THD+N (20Hz~20kHz):
- @ 0dB Gain, +4dBu In: < 0.006%
- @ 54dB Gain, -50dBu In: < 0.040%
EIN (20Hz~20kHz, 66dB Gain, 150Ω): < -125dBu
Dynamic Range (20Hz~20kHz, 0dB): > 108dB
Input Impedance (balanced): 8kΩ
Maximum Input: +24dBu
Input Gain Range (6dB Steps): 0 - 66dB
Output Impedance (balanced): 200Ω
Maximum Output: +24dBu
Power Consumption (100~240VAC 50/60Hz): < 150W
Phantom Power:
- +48 VDC
- (7mA/input)
Cross Talk (channel to channel @ 1kHz):
- @ 0dB Gain, +4dBu In: < -85dB
- @ 54dB Gain, -50dBu In: < -75dB
Sampling Rate: 48kHz
A/D Converters: 24-bit
