TX2181 Tour X 2x18" Subwoofer with Integral Xover 1000W

« return to previous page

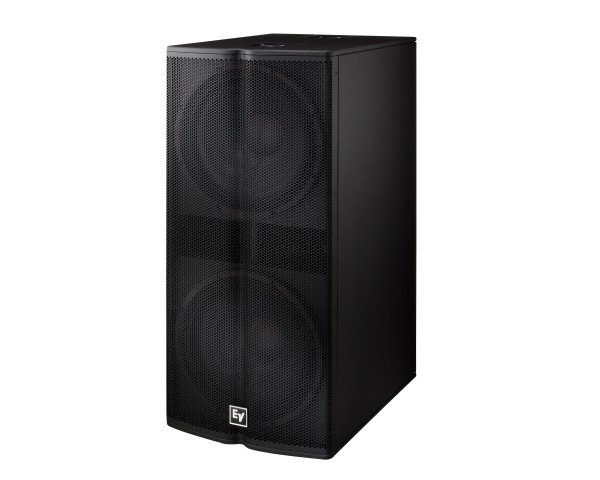

Electro-Voice TX2181 Tour X 2x18 Subwoofer with Integral Xover 1000W - Main Image
Electro-Voice TX2181 Tour X 2x18 Subwoofer with Integral Xover 1000W - Image 1
Electro-Voice TX2181 Tour X 2x18 Subwoofer with Integral Xover 1000W - Image 2
Electro-Voice TX2181 Tour X 2x18 Subwoofer with Integral Xover 1000W - Image 3
Price:
RRP: £1,658.52 inc VAT
Code:
ELETX2181
Manufacturer Code:
F.01U.302.276
Brand:
Electro-Voice

Quantity required:

Main Features

  • High-power LF supplement to TX2152
  • Low-distortion port design
  • Two high-excursion EVS-18S woofers
  • Use with processor and dedicated amp channel
  • Mount points (6) for optional wheel kit
  • Braced plywood/MDF enclosure
Share:

TX2181 Tour X 2x18" Subwoofer with Integral Xover 1000W

Tour X brings the engineering excellence and aesthetic design of EV's world-class tour systems to an innovative and exciting series of portable loudspeakers. Combining bold design and breakthrough performance, the Tour X series is optimized for applications, such as club sound, pro music and concert sound. The line's full-range loudspeakers and monitors utilize either 1.25" DH3/2010A or 2" ND2 compression drivers, protected by an advanced fourth-order crossover.

Product Features

  • High-power LF supplement to TX2152
  • Low-distortion port design
  • Two high-excursion EVS-18S woofers
  • Use with processor and dedicated amp channel
  • 103 dB sensitivity, 138 dB maximum SPL
  • Power handling: 1000 W continuous, 4000 W peak
  • Six mount points for optional wheel kit
  • Braced plywood/MDF enclosure
  • Black EVCoat finish

Product Specifications

General

  • Enclosure Material: Plywood and MDF with EVCOAT
  • Family: Tour X
  • Flying: No
  • Frequency Response (-10 dB): 40 - 1500 Hz
  • Frequency Response (-3 dB): 50 - 160 Hz
  • Input Connections: Parallel Neutrik® NL4
  • Internal Crossover: No
  • LF Transducer: Two 18-inch EVS18S
  • Max. SPL/1m (calc): 138dB
  • Minimum Impedance: 2.9Ω
  • Nominal Impedance (Passive): 4Ω
  • Power Rating: 4000W
  • Powered or Passive: Passive
  • Recommended Low-Pass Frequency: 80 - 120 Hz
  • Sensitivity 1 W/1 m: 103dB
  • Speaker Type: Subwoofer
  • System Power Handling (Continuous/Program/Peak): 1000//4000 Watts
  • Woofer Size: 18inch

Physical & Dimensions

  • Height: 1154mm
  • Width: 508mm
  • Depth: 691mm
  • Weight: 56.1kg
