TZ-30-EB 5x2" Slim Metal Column Speaker 30W IP55 White

« return to previous page

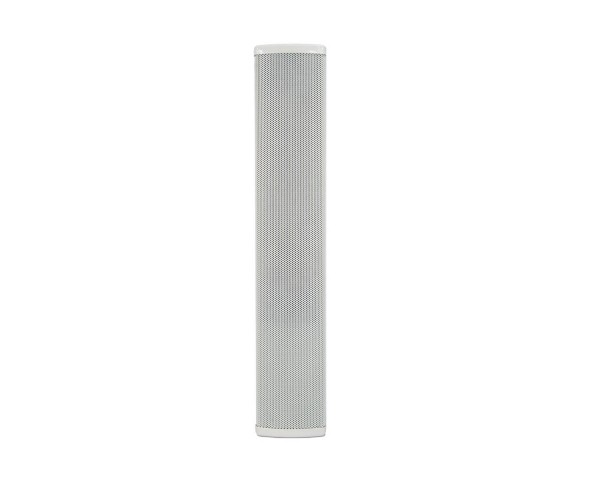

TOA TZ-30-EB 5x2 Slim Metal Column Speaker 30W IP55 White - Main Image
Price:
RRP: £180.00 inc VAT
Code:
TOATZ30EB
Manufacturer Code:
TZ-30-EB
Brand:
TOA

Quantity required:

Main Features

  • Narrow sound dispersion along a vertical axis, wide sound dispersion along a horizontal axis
  • Weatherproof metal body meets IP55 requirements
  • Speakers coming complete with wall mounting brackets
  • Frequency response:  150 Hz - 20 kHz (peak -20 dB)
  • Sensitivity (1 W, 1 m):  90 dB
  • Speaker component:  5.3cm(2”)×4pcs cone-type, 5.1cm(2”)×1pcs cone-type
Share:

TZ-30-EB 5x2" Slim Metal Column Speaker 30W IP55 White

The Metal column speaker TZ-30-EB is a highly efficient compact speaker that deliver excellent sound performance in medium sized venues such as houses of worship, gymnasiums, auditoriums and more.

The weatherproof range of TZ-30-EB metal column speaker has attained a rating of IP-55.

They are capable of withstanding weather conditions in outdoor installations.

Product Features

  • Narrow sound dispersion along a vertical axis, wide sound dispersion along a horizontal axis
  • Weatherproof metal body meets IP55 requirements
  • Speakers coming complete with wall mounting brackets

Product Specifications

  • Frequency response:  150 Hz - 20 kHz (peak -20 dB)
  • Sensitivity (1 W, 1 m):  90 dB
  • Speaker component:  5.3cm(2”)×4pcs cone-type, 5.1cm(2”)×1pcs cone-type
  • Rated input (High Impedance):  30 W (100 V)
  • Tappings:  100V line: 333Ω (30W), 667Ω (15W), 1.3kΩ (7.5W), 8Ω line: 8Ω (30W)
  • Operating temperature:  -20°C to +55°C (-4°F to 131°F)
  • Finish:  Aluminium, traffic white (RAL 9016 or equivalent)
  • Dimensions:  74.5 x 403 x 69 mm (W x H x D)
  • Weight:  1.74 kg

What’s in the Box?

  • Cable Grand ×2
  • Rubber washer ×2
  • Hexagon wrench ×1
  • Rubber gasket ×2
  • L-type bracket ×2
  • Bracket mounting screw ×2
