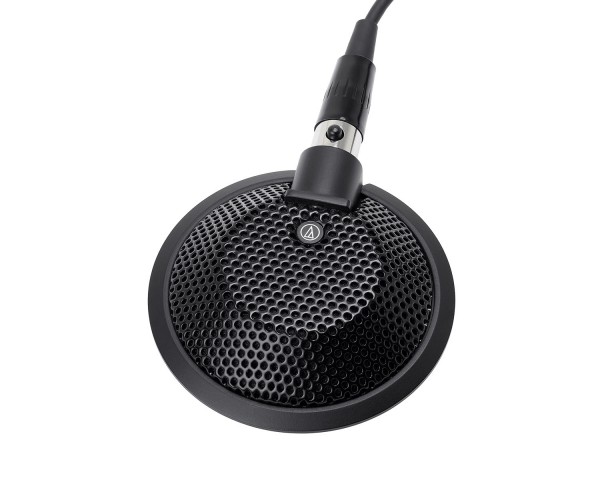

U841R UniPoint Omni Condenser Boundary Microphone Black

« return to previous page
Audio Technica U841R UniPoint Omni Condenser Boundary Microphone Black - Main Image
Audio Technica U841R UniPoint Omni Condenser Boundary Microphone Black - Image 1
Audio Technica U841R UniPoint Omni Condenser Boundary Microphone Black - Image 2
Price:
RRP: £219.00 inc VAT
Code:
AUDU841R
Manufacturer Code:
U841R
Brand:
Audio Technica

Quantity required:

Main Features

  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Self-contained electronics eliminate need for external power module
  • Small-diameter UniPoint® capsule near boundary eliminates phase distortion and delivers clear, high-output performance
  • Heavy die-cast case and non-slip silicone foam bottom pads minimize coupling of surface vibration to the microphone
  • Low-profile design with low-reflectance finish for minimum visibility
  • Finish: Black
Share:

U841R UniPoint Omni Condenser Boundary Microphone Black

Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations

Product Features

  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Self-contained electronics eliminate need for external power module
  • Small-diameter UniPoint® capsule near boundary eliminates phase distortion and delivers clear, high-output performance
  • Heavy die-cast case and non-slip silicone foam bottom pads minimize coupling of surface vibration to the microphone
  • Low-profile design with low-reflectance finish for minimum visibility

Product Specifications

  • Element:  Fixed-charge back plate, permanently polarized condenser
  • Polar Pattern:  Omnidirectional in hemisphere above mounting surface
  • Frequency Response:  40-20,000 Hz
  • Open Circuit Sensitivity:  -35 dB (17.7 mV) re 1V at 1 Pa
  • Maximum Input Sound Level:  130 dB SPL (1 kHz at 1% THD)
  • Dynamic Range:  105 dB (1 kHz at Max SPL)
  • Signal-to-Noise Ratio:  69 dB (1 kHz at 1 Pa)
  • Phantom Power Requirements:  11-52 V DC, 2 mA typical
  • Weight:  84 g
  • Cable:  7.6 m (25.0’) long, 3.2 mm (0.13") diameter, 2-conductor, shielded cable with TA3F and XLRM-type connectors
  • Dimensions:  65.0 mm (2.56") diameter, 15.1 mm (0.59") height
  • Output Connector:  TB3M-type

What's in the Box?

  • U841R UniPoint Omni Condenser Boundary Microphone
  • Protective Pouch
