Venture 12 12" 2-Way Passive Portable PA Speaker 400W

« return to previous page

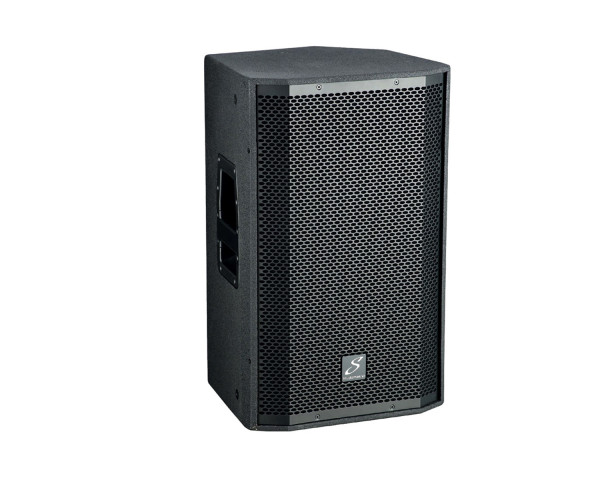

Studiomaster Venture 12 12 2-Way Passive Portable PA Speaker 400W - Main Image
Studiomaster Venture 12 12 2-Way Passive Portable PA Speaker 400W - Image 1
Studiomaster Venture 12 12 2-Way Passive Portable PA Speaker 400W - Image 2
Price:
RRP: £315.00 inc VAT
Code:
STUVOR12
Manufacturer Code:
5060255343258
Brand:
Studiomaster

Quantity required:

Main Features

  • 12″ Passive speaker cabinet
  • 1600 watts peak power
  • Neodymium components
  • Industrial grade 15mm 9-ply braced cabinets
  • Multiple M10 hanging points
  • Speakon NL4 connections
Share:

Venture 12 12" 2-Way Passive Portable PA Speaker 400W

Passive portable PA speaker.

Product Features

  • 12″ Passive speaker cabinet
  • 1600 watts peak power
  • Neodymium components
  • Industrial grade 15mm 9-ply braced cabinets
  • Multiple M10 hanging points
  • Speakon NL4 connections
  • Robust metal grill

Product Specification

  • Format:   12″ two way
  • Frequency response:   60Hz – 18kHz (-3dB)
  • Frequency range:   55kHz – 20kHz (-10dB)
  • Sensitivity 1W/1m:   95dB
  • Impedance:   4ohm
  • Power Continuous/Program/Peak:   400w / 800w / 1600w
  • Crossover frequency:   1.7kHz
  • Woofer:   12″ dia, 3″ voice coil, neo magnet
  • Compression driver:   1.7″ voice coil, ferrite magnet
  • Coverage (Horixontal x Vertical):   80 x 60
  • Max SPL:   132dB
  • Cabinet matrial:   15mm ply wood
  • Connetions:  2x speakon NL4
  • Fly points:   13 x M10
  • Dimension W*H*D:   365x608x341 (mm)
  • Weight net/shipping:   17KG/20Kg
