WELL POD 3X4 LED PAR Fixtures 6x in Charging Case IP65

Product Features

• A fully realized kit of (4) Battery operated black IP65 rated par style fixture with (19) RGB Warm White LEDs and a beam angle of 12.7 degrees
• Battery run time selections of 5, 8, 12, and 18 hours of operation at full output
• Built in battery charger allows fixture to operate while charging
• Built in IP65 5 pin DMX in/out allows for wired data
• Built in Seetronic IP65 PowerKon input/output
• Control over DMX, CRMX, RDM, or RF
• Easy connection to WELL COM and WELL COM 2 boxes for App control
• USB-C port for convenient software updates
• Removable split yoke for both hanging and floor standing
• Pressure equalizing M6 Gore valve
• Built in safety cable attachment point
• Easy to read OLED display
• Built in theft alarm (audio and visual notification)
• Built in PWM Adjustment
• Included RF remote
• Included 4 pack charging case

Product Specifications

Optical

• Light Source:  19 LEDs (RGBWW), 13.4W, (960mA) 50,000 hours life
• Colour Temperature (at full):  8774 K
• Beam Angle:  12.7°
• Field Angle:  25.4°
• Lumens:  3411 lm (AC power)
• Illuminance:  1480 lux @ 5 m (AC power) Lumens:
• Lumens:  1937 lm ( OFF battery setting)
• Illuminance:  824 lux @ 5 m ( OFF battery setting)
• Lumens:  2104 lm (5 hour battery setting)
• Illuminance:  913 lux @ 5 m (5 hour battery setting)
• Lumens:  1345 lm (8 hour battery setting)
• Illuminance:  579 lux @ 5 m (8 hour battery setting)
• Lumens:  806 lm (12 hour battery setting)
• Illuminance:  351 lux @ 5 m (12 hour battery setting)
• Lumens:  531 lm (18 hour battery setting)
• Illuminance:  229 lux @ 5 m (18 hour battery setting)
• Selectable PWM:  600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Strobe Rate:  1 to 30 Hz
• Standalone Colour Mixing:  Yes
• Colour Temperature Presets:  Yes
• Dim Modes:  4
• Dim Curves:  4
• Built-in Automated Programs:  Yes
• Customisable Programs:  No
• Recall Custom Programs:  No

Control

• Control Protocol:  RDM, CRMX, NFC, RF
• DMX Channels:  4, 8, or 13
• Modes/Personalities:  3 personalities (4Ch, 8Ch, 13Ch)
• Wireless WDMX “G” Compatibility:  G4S
• Wireless Lumen Radio Compatibility:  CRMX

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:  79 W, 0.74 A @ 120 V, 60 Hz
• Power and Current:  56 W, 0.43 A @ 208 V, 60 Hz
• Power and Current:  56 W, 0.39 A @ 230 V, 50 Hz
• 6 units in charging case
  • Power and Current:  421 W, 5.81 A @ 120 V, 60 Hz
  • Power and Current:  409 W, 3.16 A @ 208 V, 60 Hz
  • Power and Current:  407 W, 2.82 A @ 230 V, 50 Hz

Battery

• Battery type:  Lithium Ion
• Rechargeable:  Yes
• Battery Charge Time:  2.53 hours
• Battery Life:  3hr, 5hr, 8hr, 12hr
• Battery Power:  25.9V, 6.6 Ah

Certifications / Qualifications

• CE, UKCA, FCC, ROHS
• IP Rating:  IP65, temporary outdoor/wet use
• Temperature (Ambient):  14 °F to 113 °F (-10 °C to 45 °C)

Connections

• Power Connection:  Edison (local) plug to Seetronic Powerkon IP65
• Power Input (fixture and charging case):  Seetronic Powerkon IP65
• Power Output(fixture and charging case):  Seetronic Powerkon IP65
• Data Connectors:  5-pin XLR
• Cable Length (power):  5 ft (1.5 m)
• Software Connection:  USBc

Construction / Physical

• Dimensions:  9.76 x 7 x 10.86 in (248 x 178 x 276)
• Dimensions (w/o bracket):  9.76 x 7 x 7 in (248 x 178 x 178 mm)
• Dimensions case:  36.7 x 25.2 x 19.3” (933 x 641 x 492mm)
• Weight:  11.2 lbs (5.1 kg)
• Exterior Colour:  Black
• Housing Material:  Aluminium die-cast

What's in the Box?

• 6 x WELL POD 3

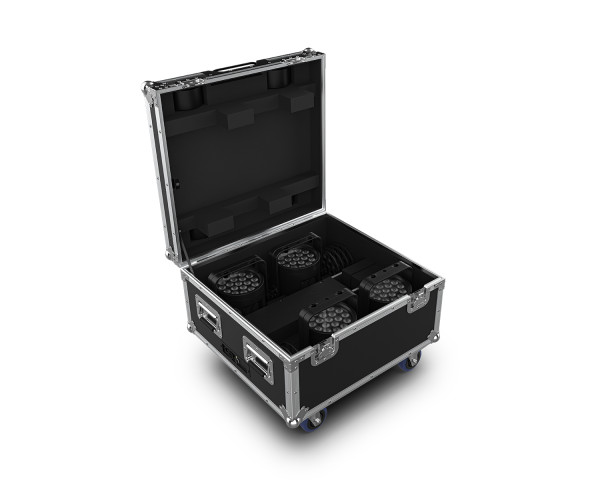

• 1 x Charging case
• 6 x omega brackets
• 6 x detachable split yokes
• 1 x RF controller
• 1 x QRG
