WM-5325 UHF 64Ch Wireless Bodypack Transmitter D04 CH70

« return to previous page

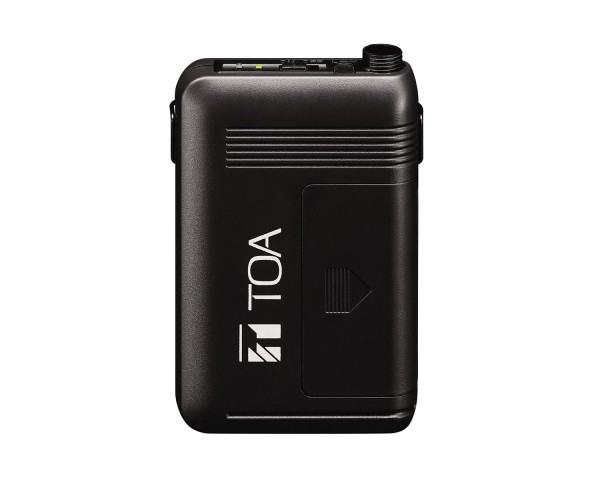

TOA WM-5325 UHF 64Ch Wireless Bodypack Transmitter D04 CH70 - Main Image
Price:
RRP: £174.00 inc VAT
Code:
TOAWM5325D
Manufacturer Code:
WM-5325 D04
Brand:
TOA

Quantity required:

Main Features

  • UHF bodypack transmitter with excellent range
  • Compact and ultra-lightweight and can be carried effortlessly over long periods of time
  • Equipped with belt clip and a length-adjustable neck strap
  • Wide range coverage and long battery durability
  • Specially developed for speech applications
  • D04 CH70
Share:

WM-5325 UHF 64Ch Wireless Bodypack Transmitter D04 CH70

The WM-5325 wireless transmitter has been manufactured for use with a UHF system. It is for use in speech reinforcement applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission.

Product Features

  • UHF bodypack transmitter with excellent range
  • Compact and ultra-lightweight and can be carried effortlessly over long periods of time
  • Equipped with belt clip and a length-adjustable neck strap
  • Wide range coverage and long battery durability
  • Specially developed for speech applications

Product Specifications

  • Power source (combined):  Battery (1x AA type, Alkaline, or WB-2000-2)
  • Audio input:  3.5 mm mini-jack (with screw-on cap)
  • Operating time approx.:  10 h (with AA), 13 h (with WB-2000)
  • Frequency range:  863 – 865 MHz
  • Selectable frequencies:  64
  • Simultaneous channels:  7
  • AF response:  100 Hz - 15 kHz
  • RF output power:  10 mW
  • Weight:  90,0 g
  • Dimensions (W x H x D):  62 x 102,5 x 23 mm
  • Dimensions (ø x D):  x 23 mm
  • Gross weight:  0,26 kg
  • Finish:  Resin, pre-coated, black

Product Downloads
