xVision 4K Converter Fibre MultiMode opticalCON DUO to HDMI2.0

« return to previous page

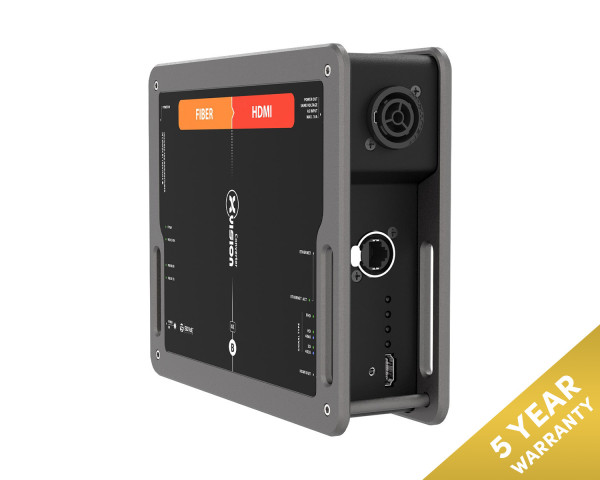

Theatrixx xVision 4K Converter Fibre MultiMode opticalCON DUO to HDMI2.0 - Main Image
Theatrixx xVision 4K Converter Fibre MultiMode opticalCON DUO to HDMI2.0 - Image 1
Theatrixx xVision 4K Converter Fibre MultiMode opticalCON DUO to HDMI2.0 - Image 2
Theatrixx xVision 4K Converter Fibre MultiMode opticalCON DUO to HDMI2.0 - Image 3
Theatrixx xVision 4K Converter Fibre MultiMode opticalCON DUO to HDMI2.0 - Image 4
Price:
RRP: £2,625.86 inc VAT
Code:
THEF2HM2
Manufacturer Code:
XVVFIBER2HDMI-M2
Brand:
Theatrixx

Quantity required:

Main Features

  • Integrated power supply with locking PowerCON connector
  • Magnetic stacking system and non-skid rubber pad
  • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adapter
  • Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works
  • Locking HDMI port prevents accidental disconnection
  • Clear and ample status LED indicators for quick troubleshooting
Share:

xVision 4K Converter Fibre to HDMI2.0 MultiMode opticalCON DUO

Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment. Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role. Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. Theatrixx wanted to change that, so they designed the xVision Video Converters.

Product Features

  • Integrated power supply with locking PowerCON connector. Never rely on a cluster of wall-warts again.
  • Built-in convenience outlet to power nearby monitor, flat-screen, laptop, video projector or any device up to 10 amps… Power bar to connect both converter and device not required anymore.
  • Magnetic stacking system and non-skid rubber pad. Saves at least 10 gaffer tape rolls a year.
  • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adapter.
  • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
  • Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works.
  • Clear and ample status LED indicators for quick troubleshooting.
  • Easy on-the-field identification with unique colour and alphabetic coding system.
  • Locking HDMI port prevents accidental disconnection.
  • Reclocked and amplified SDI loop thru
  • Proudly designed and assembled in Canada.

Product Specifications

Connections

  • Fibre Input:  10 Gbps Optical Ethernet, SFP-based, Multimode, OpticalCON DUO
  • Ethernet Port:  1 Gbps Ethernet on Neutrik EtherCON
  • Video Output:  HDMI 2.0 type A

Supported Signals

  • HDMI 2.0 output:
    • All HDMI 2.0 formats including: 4K/60 8-bit 4:4:4, 4K/60 10-bit 4:2:2,
    • High dynamic range (HDR10 & Dolby Vision)
  • Embedded audio:  Up to 8 channels, 24 bit, 192 kHz
  • Encoding Technology:  SDVoE (NT1000-based)
  • Typical Latency:  < 0.1 ms
  • Auxiliary Signals:  1 Gbps Ethernet pass-thru

Environmental

  • Operating temp.:  0-40° C
  • Relative Humidity:  0 % to 90 % RH non-condensing

Power Requirements

  • Power Supply:
    • Built-in power supply
    • PowerCON True1 in / loop thru
  • Power Consumption:  45W max.
  • Operational Voltage Range:  100-240 V 50-60 Hz

Physical

  • Height:  62 mm (2.44 in)
  • Depth:  180 mm (7.08 in)
  • Width:  221 mm (8.7 in)
  • Weight:  2 kg (4.4 lbs)

What's in the Box?

  • xVision Fiber to HDMI Converter (True1)
  • Power Cable

Product Video
