Main Features
Reversible module for 2-Bay or 8-Bay converter rack (sold separately)
Video Input: 1 x HDMI 2.0 type A with locking system
Video Output: 1 x 10 Gbps Optical Ethernet, SFP-based
Multimode Neutrik OpticalCON DUO
Ethernet Port: 1 x Gbps Ethernet on Neutrik EtherCON

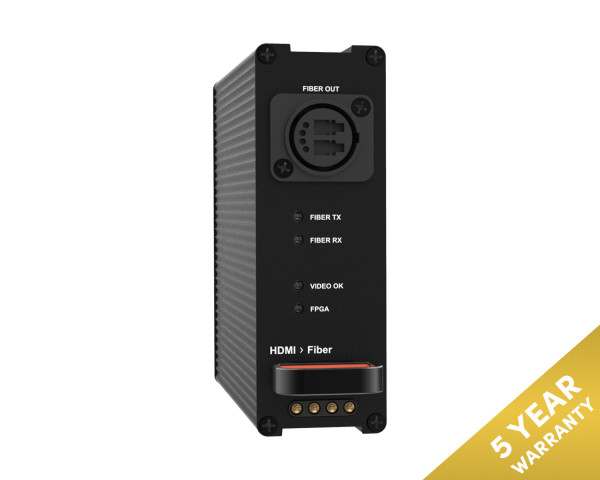

xVision Reversible 4K Converter HDMI2.0 to Fibre MM OptiCON Duo
The HDMI to Fiber Reversible Module fits in the 8-Bay Reversible Rackmount Converter system.
The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.
Product Features
Reversible module for 2-Bay or 8-Bay converter rack (sold separately)
Video Input: 1 x HDMI 2.0 type A with locking system
Video Output: 1 x 10 Gbps Optical Ethernet, SFP-based
Multimode Neutrik OpticalCON DUO
Ethernet Port: 1 x Gbps Ethernet on Neutrik EtherCON
4K/60 8-bit 4:4:4, 4K/60 10-bit 4:2:2
Product Specifications
Connections
Video Input: 1 x HDMI 2.0 type A with locking system
Ethernet Port: 1 x Gbps Ethernet on Neutrik EtherCON
Video Output:
1 x 10 Gbps Optical Ethernet, SFP-based
Multimode Neutrik OpticalCON DUO
Supported Signals
HDMI 2.0 input:
All HDMI 2.0 formats including:
4K/60 8-bit 4:4:4, 4K/60 10-bit 4:2:2,
High dynamic range (HDR10 & Dolby Vision)
Embedded audio: Up to 8 channels, 24 bit, 192 kHz
Encoding Technology: SDVoE (NT1000-based)
Typical Latency: < 0.1 ms
Auxiliary Signals: 1 Gbps Ethernet pass-thru
Physical
Height: 121.5 mm (4.78 in)
Depth: 225 mm (8.85 in)
Width: 41 mm (1.61 in)
Weight: 710 g (1.56 lbs)
Environmental
Relative Humidity: 0% to 90% non-condensing
Operating Temperature: 0-40 °C
Power Requirements
Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
