Main Features
Reversible module for 8-bay 2U converter rack (sold separately)
Converts 12G-SDI to HDMI
Video Input: 1 x 12G/6G/3G/HD/SD SDI BNC
Video Output: 1 x HDMI 2.0 type A with locking system, 2 x 12G/6G/3G/HD/SD SDI BNC

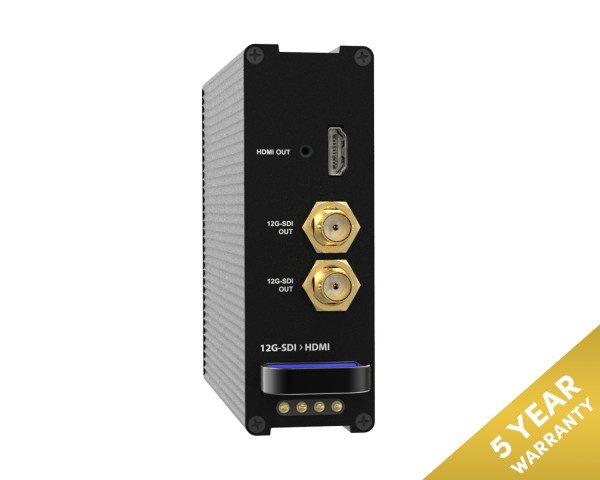

xVision Reversible 4K Video Converter 12G-SDI to HDMI2.0
The 12G-SDI to HDMI Reversible Module fits in the 8-Bay Reversible Rackmount Converter system. The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.
Product Features
Reversible module for 8-bay 2U converter rack (sold separately)
Converts 12G-SDI to HDMI
Video Input: 1 x 12G/6G/3G/HD/SD SDI BNC
Video Output: 1 x HDMI 2.0 type A with locking system, 2 x 12G/6G/3G/HD/SD SDI BNC
Supports 4K formats
SDI Video Sampling: 4:2:2 and 4:4:4
Product Specifications
Connections
Video Input: 1 x 12G/6G/3G/HD/SD SDI BNC
Video Output:
1 x HDMI 2.0 type A with locking system
2 x 12G/6G/3G/HD/SD SDI BNC
Supported Signals
12G Format Support: 4096x2160p60, 4096x2160p59.94, 4096x2160p50, 3840x2160p60, 3840x2160p59.94, 3840x2160p50
6G Format Support: 4096x2160p60, 4096x2160p59.94, 4096x2160p50, 3840x2160p60, 3840x2160p59.94, 3840x2160p50
3G Format Support: 1080p50, 1080p59.94, 1080p60
HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
SDI Video Sampling: 4:2:2 and 4:4:4
SDI Audio Sampling: Sample rate of 48 kHz and 24 bit
SDI Color Space: YUV and RGB
SDI Auto Switching: Automatically detects incoming signal format
SMPTE Standards: 425M Level A & B, 424M Level A, 292M, 259M
Physical Specifications
Height: 121.5mm (4.78in)
Depth: 225mm (8.85in)
Width: 41mm (1.61in)
Weight: 710g (1.56lbs)
Alternate Form Factor: Also available as a standalone converter
Environmental Specifications
Relative Humidity: 0% to 90% non-condensing
Operating Temperature: 0-40 °C
Power Requirements
Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
