EW-DX SK Bodypack Transmitter (U1/S) CH70

« return to previous page

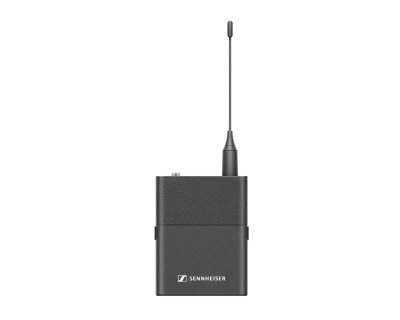

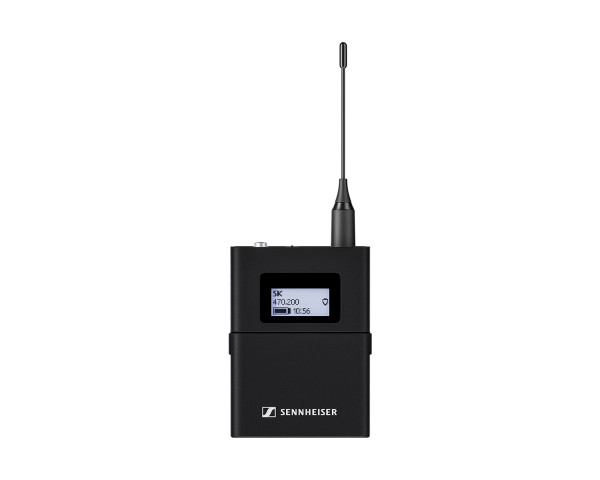

Sennheiser EW-DX SK Bodypack Transmitter (U1/S) CH70 - Main Image
Sennheiser EW-DX SK Bodypack Transmitter (U1/S) CH70 - Image 1
Sennheiser EW-DX SK Bodypack Transmitter (U1/S) CH70 - Image 2
Sennheiser EW-DX SK Bodypack Transmitter (U1/S) CH70 - Image 3
Sennheiser EW-DX SK Bodypack Transmitter (U1/S) CH70 - Image 4
Sennheiser EW-DX SK Bodypack Transmitter (U1/S) CH70 - Image 5
Price:
RRP: £490.80 inc VAT
Code:
SENEWDXSK70
Manufacturer Code:
509391
Brand:
Sennheiser

Quantity required:

Main Features

  • 3,5 mm jack
  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
  • Persistent eInk display - parameters visible on screen even when device is not powered on
  • Programmable mute switch - customize the device depending on your professional needs
  • Extended runtime with lithium ion batteries - up to 12 hours operation time
Share:

Sennheiser EW-DX SK Bodypack Transmitter (U1/S) CH70

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. This bodypack transmitter is compatible with a wide range of Sennheiser headset microphones and clip-on/lavalier microphones.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

  • 3,5 mm jack
  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
  • Persistent eInk display - parameters visible on screen even when device is not powered on
  • Programmable mute switch - customize the device depending on your professional needs
  • Extended runtime with lithium ion batteries - up to 12 hours operation time
  • Mic input trim control
  • Metal housing

Product Specifications

  • Audio link frequency ranges:
    • Q1-9:  470.2 - 550 MHz
    • R1-9:  520 - 607.8 MHz
    • S1-10:  606.2 - 693.8 MHz
    • S2-10:  614.2 - 693.8 MHz
    • S4-10:  630 - 693.8 MHz
    • U1/5:  823.2 - 831.8 MHz & 863.2 - 864.8 MHz
    • V3-4:  925.2 - 937.3 MHz
    • V5-7:  941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz
    • X1-6:  1350.2 - 1398.8 MHz
    • X9-18:  1435.2 - 1524.8 MHz
    • Y1-3:  1785.2 - 1799.8 MHz
  • Bluetooth® Low Energy (BLE) frequency range:  2402 - 2480 MHz
  • Audio frequency response:  20 Hz - 20 kHz (-3 dB)
  • Audio THD:
    • ≤ -60 dB for 1 kHz
    • @ -3 dBfs input level
  • Dynamic range:  134 dB
  • System latency:  1.9 ms
  • Operating temperature:  -10 °C - +55 °C (14 °F - 131 °F)
  • Relative humidity:  5 - 95 % (non-condensing)
  • Input voltage:  2.0 - 4.35 V
  • Input current:  < 300 mA
  • Power supply:  2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
  • Occupied bandwidth:  200 kHz
  • Transmit power (radiated):
  • Audio link: 10 mW ERP
  • (Range Y1-3: 12 mW ERP)
  • LD mode: 10 mW ERP
  • BLE: max. 10 mW EIRP
  • Dimensions (without antenna):  63.5 x 85 x 20 mm (2.5" x 3.35" x 0.79")
  • Weight (without batteries):  approx. 115-120 g (0.26-0,27 - lbs)

What's in the Box?

  • EW-D SK bodypack transmitter
  • Belt clip
  • 2 Batteries (AA)
