XSW2-ME2 E Lapel System with ME2-2 Omni Lapel Mic CH70

« return to previous page

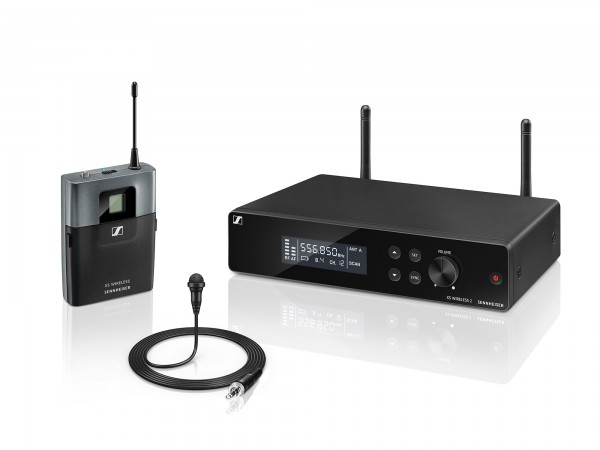

Sennheiser XSW2-ME2 E Lapel System with ME2-2 Omni Lapel Mic CH70 - Main Image
Sennheiser XSW2-ME2 E Lapel System with ME2-2 Omni Lapel Mic CH70 - Image 1
Sennheiser XSW2-ME2 E Lapel System with ME2-2 Omni Lapel Mic CH70 - Image 2
Sennheiser XSW2-ME2 E Lapel System with ME2-2 Omni Lapel Mic CH70 - Image 3
Sennheiser XSW2-ME2 E Lapel System with ME2-2 Omni Lapel Mic CH70 - Image 4
Price:
RRP: £478.80 inc VAT
Code:
SENXSW2ME2E
Manufacturer Code:
507126
Brand:
Sennheiser

Quantity required:

Main Features

  • Up to 12 compatible channels
  • Unobtrusive clip-on microphone for hands-free operation
  • True diversity receiver with metal housing
  • External antennas
  • Automatic frequency management and synchronization
  • Fully tunable over a wide range of UHF frequencies
Share:

Sennheiser XSW2-ME2 Wireless Lavalier System CH70

Inspire your audience. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

The XS WIRELESS 2 LAVALIER MIC SET is an easy to use all-in-one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobtrusive clip-on microphone. Metal receiver housing and rackmount kit included.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

  • Unobtrusive clip-on microphone for hands-free operation and compact bodypack transmitter
  • True diversity receiver with metal housing
  • External antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Fully tunable over a wide range of UHF frequencies
  • Rackmount kit included
  • Up to 12 compatible channels

Product Specifications

General

  • Microphone: Condenser
  • Frequency response: 50 to 16,000 Hz (–3 dB)
  • THD, total harmonic distortion: ≤ 0.9%
  • Pick-up pattern: Omni-directional
  • Signal-to-noise ratio: ≥ 103 dBA
  • RF output power: 10 mW
  • Switching bandwidth: up to 24 MHz
  • Modulation: Wideband FM
  • Output voltage: '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
  • Diversity reception: True Diversity
  • Frequency: 8 frequency banks, each with up to 12 factory-preset channels
  • Frequency range
    • A: 548-572 MHz
    • GB: 606-630 MHz
    • B: 614-638 MHz
    • C: 766-790 MHz
    • D: 794-806 MHz
    • E: 821-832 MHz, 863-865 MHz
    • K: 925-937.5 MHz
  • Sensitivity: < 3 μV at 52 dB(A)rms S/N
  • Squelch: switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
  • Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
  • Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
  • Audio adjustment range: 40 dB, adjustable in 5-dB steps
  • Line / Mic level: 20 dB, switchable
  • Temperature Range
    • Operation: 0°C to +40°C
    • Storage: –20°C to +70°C
  • Receiver Principle: double superheterodyne

Receivers

  • Dimensions: approx. 200 x 42 x 127 mm
  • Weight: approx. 680g
  • Power supply: 12 V DC nom. / 300 mA
  • Housing: Metal
  • AF frequency response: 50 to 16,000 Hz

Transmitter

  • Dimensions: approx. 71 x 96 x 28 mm
  • Weight: approx. 95g
  • Operating time: approx. 10 hrs

What's in the Box?

  • 1 receiver EM-XSW 2
  • 1 bodypack transmitter SK-XSW
  • 1 lavalier microphone ME 2-2
  • 1 power supply NT2-3-UK
  • 2 AA batteries
  • 1 rackmount kit
  • 1 pouch
  • User manual
